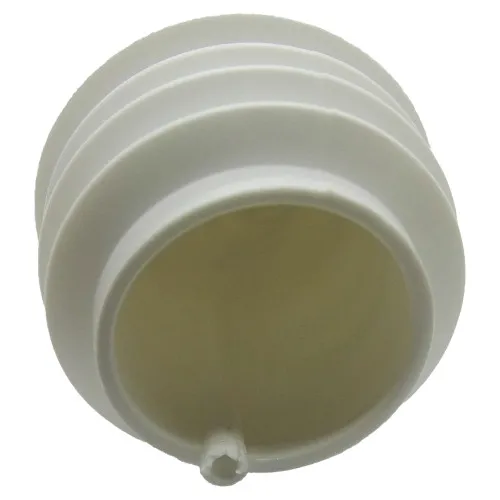

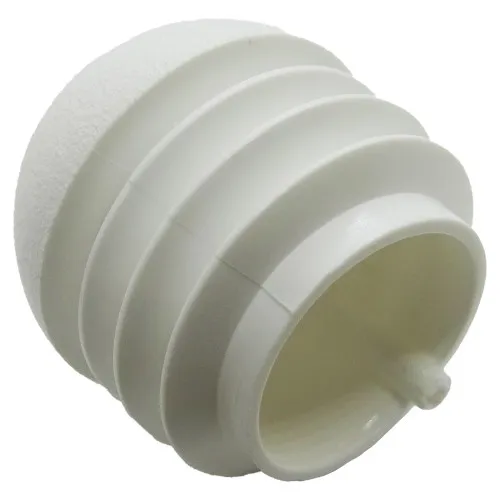

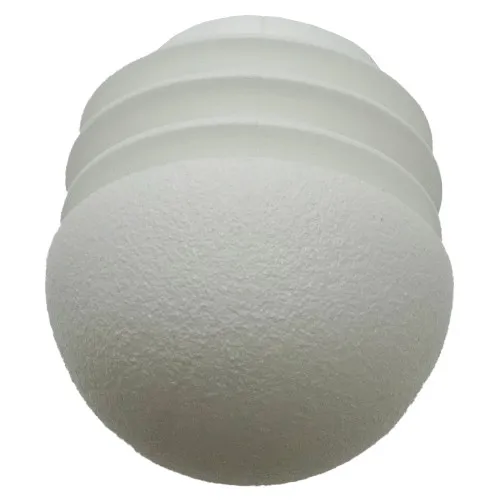

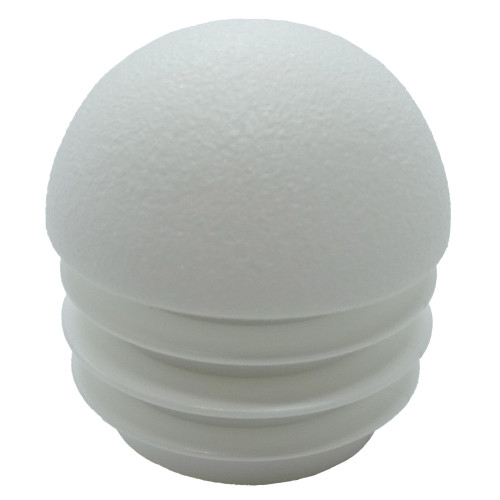

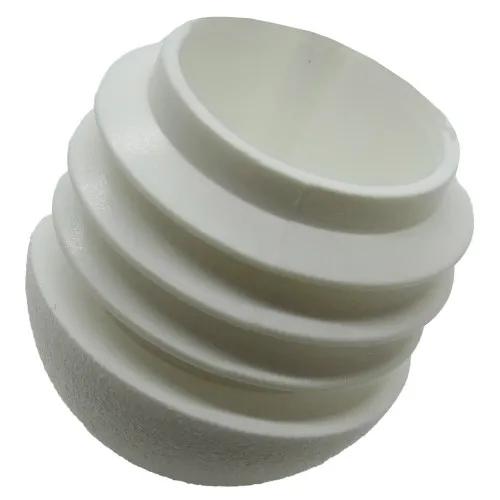

22mm White Round Domed Tube Insert (To Fit 19-20mm Tube) - 1-1.5mm Wall - 10.5mm Head Height | LDPE
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.45 | £0.54 |
| 100 - 249 | £0.42 | £0.51 |
| 250 - 499 | £0.38 | £0.46 |
| 500 - 999 | £0.32 | £0.38 |
| 1000 + | £0.17 | £0.21 |
£0.54 / each
Product Specification
| Outside Diameter | 22.0mm |
| Wall Thickness | 1.0-1.5mm |
| To Fit Tube Size | 19.0-20.0mm |
| Head Height | 10.5mm |
| Insert Length | 15.5mm |
| Colour | White |
| Material | LDPE |
Frequently Bought Together
Total Price: £0.00
22.0mm White Round Domed Tube Insert - To Fit 19.0-20.0mm | LDPE
Providing a simple push-fit solution for general engineering and maintenance work, this white domed tube end plug protects an open round tube while creating a smooth domed appearance. The fitting is matched to 1.0-1.5mm walls and the supplied 19.0-20.0mm tube size with no separate fastener required. Its profile combines a 10.5mm head height with a 15.5mm insert section.
What Are Round Domed Tube Inserts?
Round tube end inserts provide both finishing and protection for open tubular sections. The LDPE body flexes during installation so the external ribs can grip the inside wall while the domed top forms the visible finished end of the tube.
Common Applications
- Railings: Covers open round tube ends on compatible internal or external railing assemblies.
- Storage Systems: Protects exposed tube ends on racks, frames and light storage structures.
- Display Furniture: Adds a rounded finished end to tubular exhibition and presentation structures.
- Furniture Manufacture: Finishes exposed round chair, table and shelving tubes with a smooth protective end.

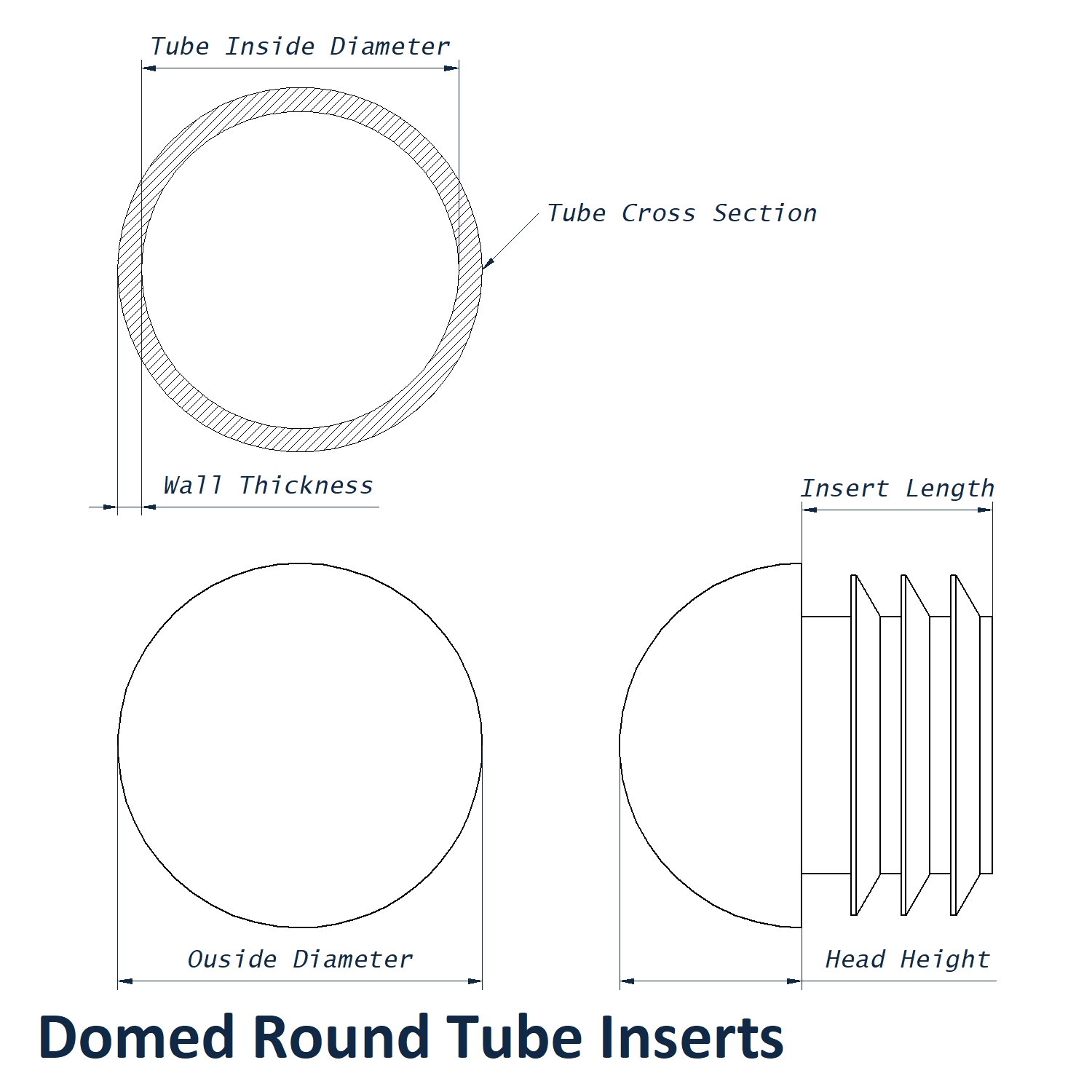

22.0mm White Round Domed Tube Insert Dimensions
- Outside Diameter: 22.0mm
- Wall Thickness: 1.0-1.5mm
- To Fit Tube Size: 19.0-20.0mm
- Head Height: 10.5mm
- Insert Length: 15.5mm
- Colour: White
- Material: LDPE
Key Benefits
- 1.0-1.5mm wall thickness compatibility helps confirm the correct internal fit.
- 10.5mm head height creates the visible domed profile.
- Ribbed shank design helps retain the insert without adhesive.
- White finish matches the supplied product variant.
Further sizes are available through the Vital Parts Round Domed Tube Inserts category. For assistance checking outside diameter, wall thickness or tube compatibility, speak with our team on 01233 713581.
