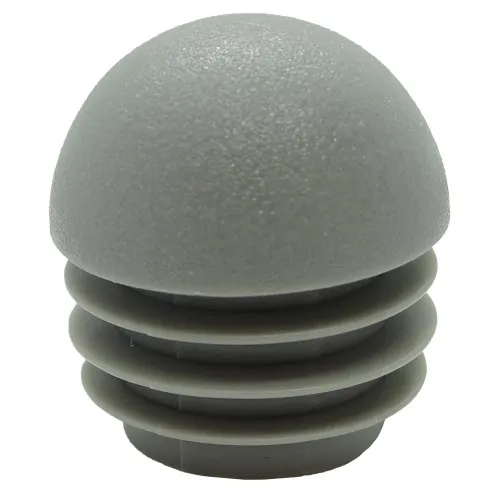

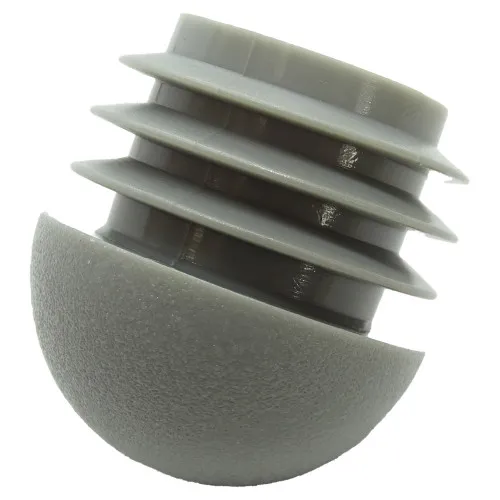

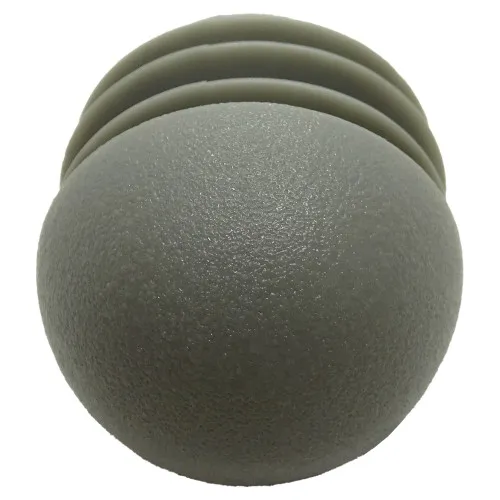

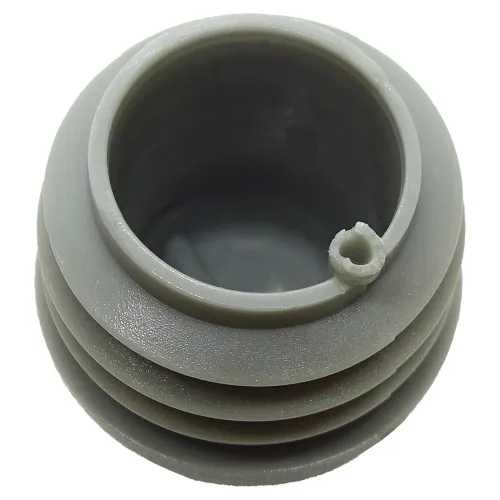

76.2mm Grey Round Domed Tube Insert (To Fit 69.2-72.2mm Tube) - 2-3.5mm Wall - 38.5mm Head Height | LDPE
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £4.17 | £5.01 |
| 100 - 249 | £3.95 | £4.74 |
| 250 - 499 | £3.52 | £4.23 |
| 500 - 999 | £2.91 | £3.49 |
| 1000 + | £1.62 | £1.94 |
£5.01 / each
Product Specification
| Outside Diameter | 76.2mm |
| Wall Thickness | 2.0-3.5mm |
| To Fit Tube Size | 69.2-72.2mm |
| Head Height | 38.5mm |
| Insert Length | 40.0mm |
| Colour | Grey |
| Material | LDPE |
Frequently Bought Together
Total Price: £0.00
76.2mm Grey Round Domed Tube Insert - To Fit 69.2-72.2mm | LDPE
Designed for chair and table manufacture, this 76.2mm grey round domed tube insert provides a clean domed finish for round tubing sized to the supplied 69.2-72.2mm fit range. The ribbed LDPE body is matched to 2.0-3.5mm tube walls, with a 38.5mm head height and 40.0mm insert length.
What Are Round Domed Tube Inserts?
Push-fit domed tube inserts are selected by matching the outside tube size and wall thickness to the insert specification. Once fitted, the ribs hold within the tube and the smooth dome covers the exposed opening which reduces sharp edges and limits contamination inside the section.
Common Applications
- Furniture Manufacture: Finishes exposed round chair, table and shelving tubes with a smooth protective end.
- Industrial Fabrication: Closes open round sections on fabricated frames and equipment structures.
- Office Furniture: Finishes tubular desk, seating and storage components used in commercial interiors.
- Machinery Protection: Helps stop dirt and debris entering open tubular sections on suitable equipment.

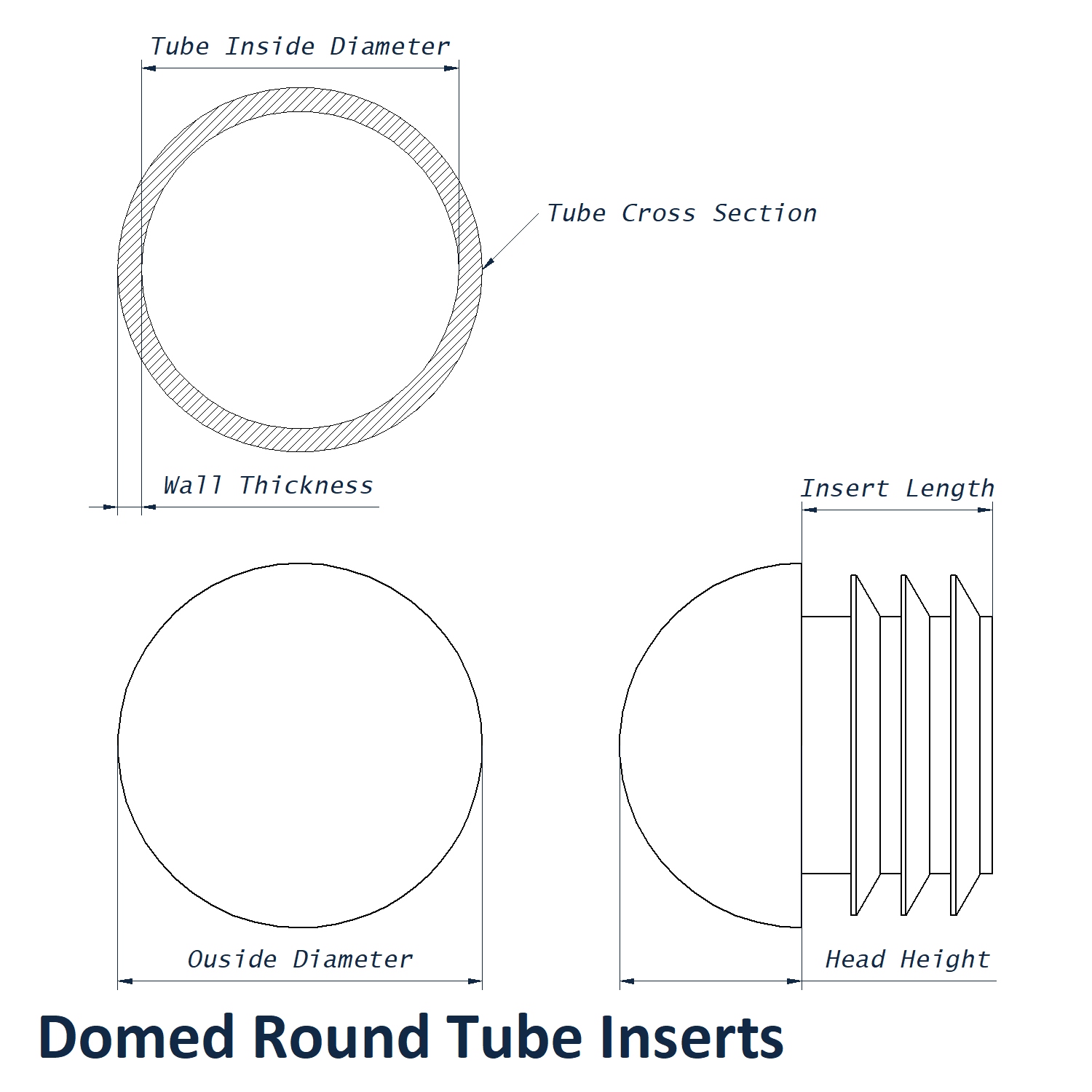

76.2mm Grey Round Domed Tube Insert Dimensions
- Outside Diameter: 76.2mm
- Wall Thickness: 2.0-3.5mm
- To Fit Tube Size: 69.2-72.2mm
- Head Height: 38.5mm
- Insert Length: 40.0mm
- Colour: Grey
- Material: LDPE
Key Benefits
- Suitable for the supplied 69.2-72.2mm round tube size range.
- 40.0mm insert length supports secure engagement inside compatible tubing.
- Domed head covers the open tube end with a smooth rounded finish.
- 76.2mm outside diameter provides a clear tube-size reference.
View the complete Round Domed Tube Inserts range to compare other tube sizes, wall thicknesses and colours. For help matching an insert to your round tube, contact the Vital Parts technical sales team on 01233 713581.
