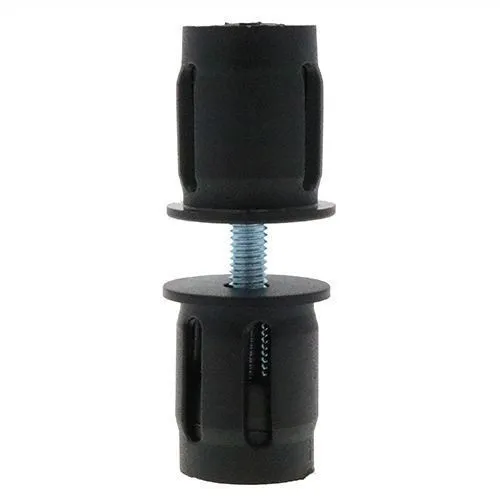

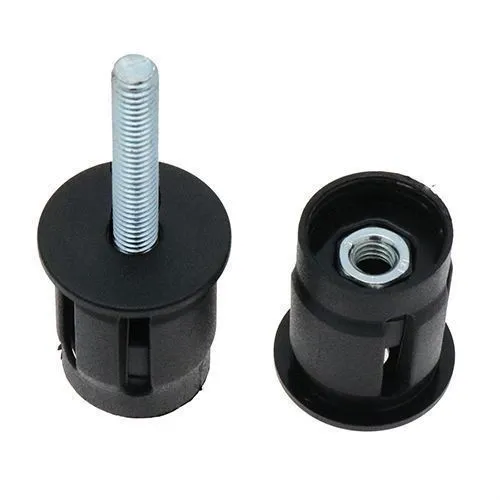

24mm Round Tube Connector (M6 Thread) - 20mm Length - 1mm Wall | Nylon

Product code: TC120
View All Specifications
24mm Round Tube Connector (M6 Thread) - 20mm Length - 1mm Wall | Nylon
24mm Round Tube Connector (M6 Thread) - 20mm Length - 1mm Wall | Nylon
24mm Round Tube Connector (M6 Thread) - 20mm Length - 1mm Wall | Nylon
24mm Round Tube Connector (M6 Thread) - 20mm Length - 1mm Wall | Nylon
24mm Round Tube Connector (M6 Thread) - 20mm Length - 1mm Wall | Nylon
24mm Round Tube Connector (M6 Thread) - 20mm Length - 1mm Wall | Nylon
Quantity
Unit Price
(ex. VAT)
Unit Price
(inc. VAT)
1 - 99 £1.20 £1.44
100 - 249 £1.11 £1.33
250 - 499 £1.02 £1.22
500 - 999 £0.93 £1.12
1000 + £0.86 £1.03

£1.44 / each


Up to 98 units
In Stock
Vital Parts Tick
Order by for same day dispatch.
98 + units
Available for production
Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.

Product Specification
Outside Diameter 24mm
Wall Thickness 1.0mm
Internal Length 20mm
Thread Size M6
Material Nylon

Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.

Larger Order?

Call our sales team on

01233 713581


Frequently Bought Together

Total Price: £0.00

24mm Round Straight Connector | M6 Thread | 1mm Wall | Nylon

This 24mm tube frame connector suits tubular frames where two matching round sections need to be joined end to end. The internal Nylon connector uses adjustable ribs and a M6 fixing to grip inside tubing with a 1mm wall thickness.

What Are Round Straight Connectors?

Round Tube Connectors provide a concealed method of extending compatible tubular frames. Each connector sits inside adjoining tube sections and uses an expanding ribbed design to grip the internal wall which helps maintain alignment across the joint.

Common Applications

  • Commercial Equipment: Joins matching tubes in suitable equipment frames and support structures.
  • Tubular Seating: Provides a concealed joining point within compatible chair and bench frame tubing.
  • Custom Tube Builds: Provides an internal connection for bespoke furniture, stands and fabricated round-tube assemblies.
  • Display Stands: Extends round tubing used in retail displays, exhibition stands and modular presentation frames.

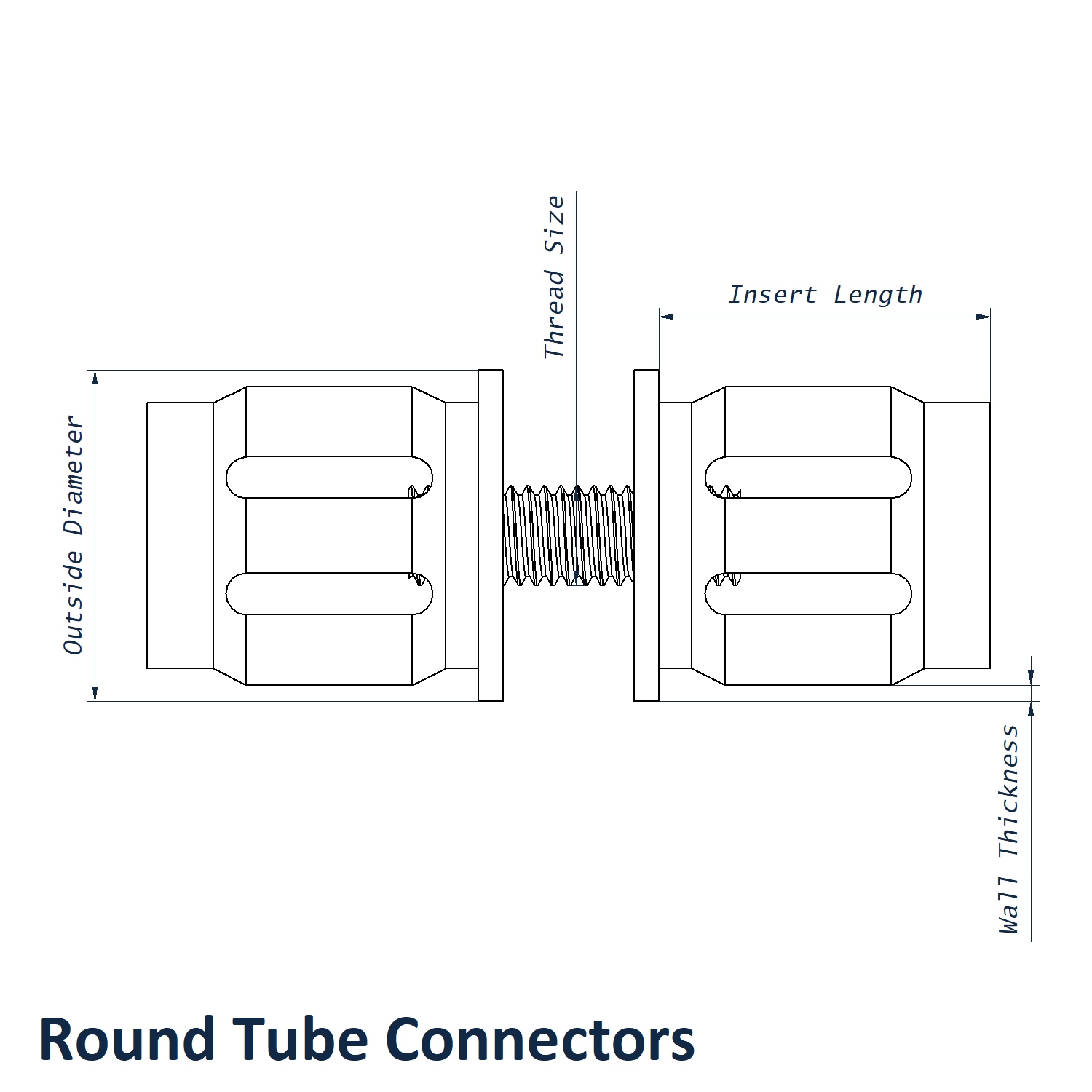

24mm Round Straight Connector Dimensions

  • Outside Diameter: 24mm
  • Wall Thickness: 1.0mm
  • Internal Length: 20mm
  • Thread Size: M6
  • Material: Nylon

Key Benefits

  • 24mm outside diameter provides the main tube-size reference.
  • 20mm internal length provides the stated engagement inside the adjoining tube sections.
  • Internal design creates a neat straight joint without an external sleeve around the tubing.
  • Expanding fixing supports secure retention and alignment between matching tube sections.

Browse the complete Round Straight Connector collection for alternative sizes and thread options. These connectors are also great to pair with our Saddle Tube Connectors when building more complete tubular frames with both straight extensions and intersecting tube joints. We can help you choose the correct connector on 01233 713581.
