24mm Round Tube Connector (M6 Thread) - 20mm Length - 1.5mm Wall | Nylon
CAD Viewer
CAD Request
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £1.17 | £1.40 |
| 100 - 249 | £1.07 | £1.29 |
| 250 - 499 | £0.99 | £1.19 |
| 500 - 999 | £0.91 | £1.09 |
| 1000 + | £0.83 | £1.00 |
£1.40 / each
Product Specification
| Outside Diameter | 24mm |
| Wall Thickness | 1.5mm |
| Internal Length | 20mm |
| Thread Size | M6 |
| Material | Nylon |
Frequently Bought Together
- Thread Size M8
- Material Spring Steel
- Colour Chrome
- Outside Diameter 32mm
- Wall Thickness 1.2mm
- Material Nylon
- Colour Black
- Outside Diameter 25mm
- Wall Thickness 1.5mm
- Internal Length 71mm
- Thread Size M6
- Style Expanding
- Material Nylon
- Outside Diameter 24mm
- Wall Thickness 1.5mm
- Internal Length 20mm
Total Price: £0.00

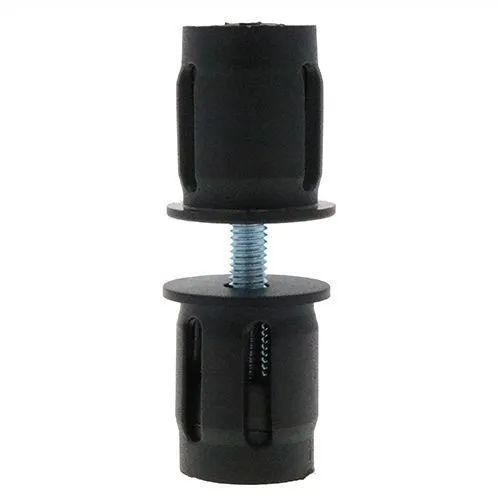

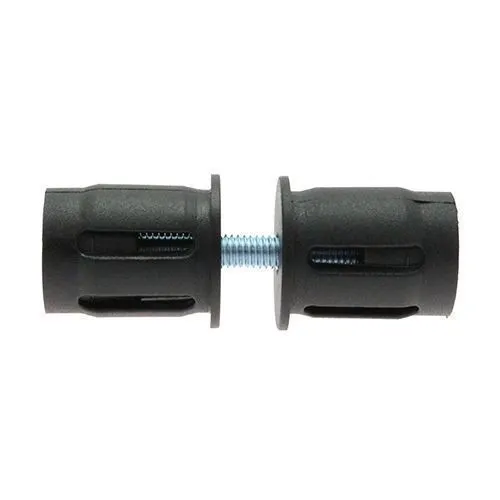

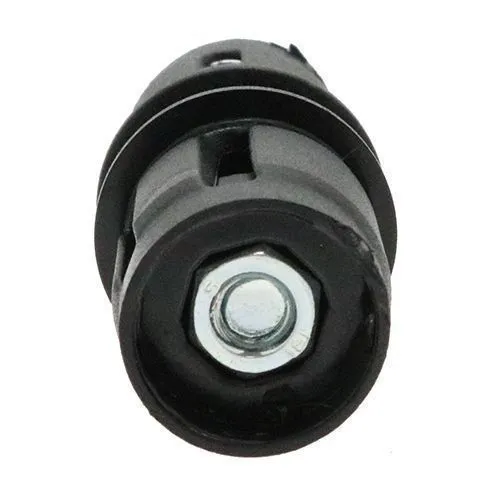

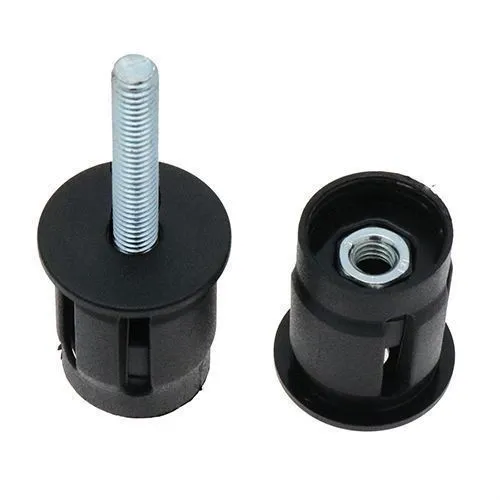

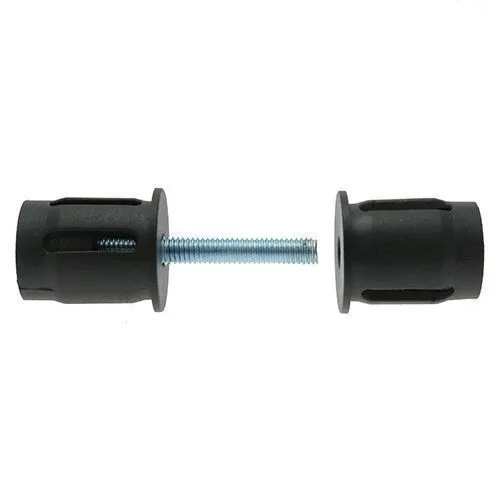

24mm Round Straight Connector | M6 Thread | 1.5mm Wall | Nylon
Providing a straight 180° joint for lightweight machinery guards and support frames, this 24mm round tube joining connector fits inside both tube ends to create a clean connection between matching sections. The 20mm internal length supports the joint while the threaded fixing helps secure the connector within the tube.
What Are Round Straight Connectors?
Round Tube Connectors provide a concealed method of extending compatible tubular frames. Each connector sits inside adjoining tube sections and uses an expanding ribbed design to grip the internal wall which helps maintain alignment across the joint.
Common Applications
- Machine Guards: Can join suitable round-tube sections used in lightweight protective or support frames.
- Furniture Frames: Joins matching round tube sections in chairs, tables and other tubular furniture assemblies.
- Workshop Projects: Provides a simple method for extending round tubing in custom frames, fixtures and prototypes.
- Modular Assemblies: Allows tubular sections to be connected and separated as part of modular frame designs.

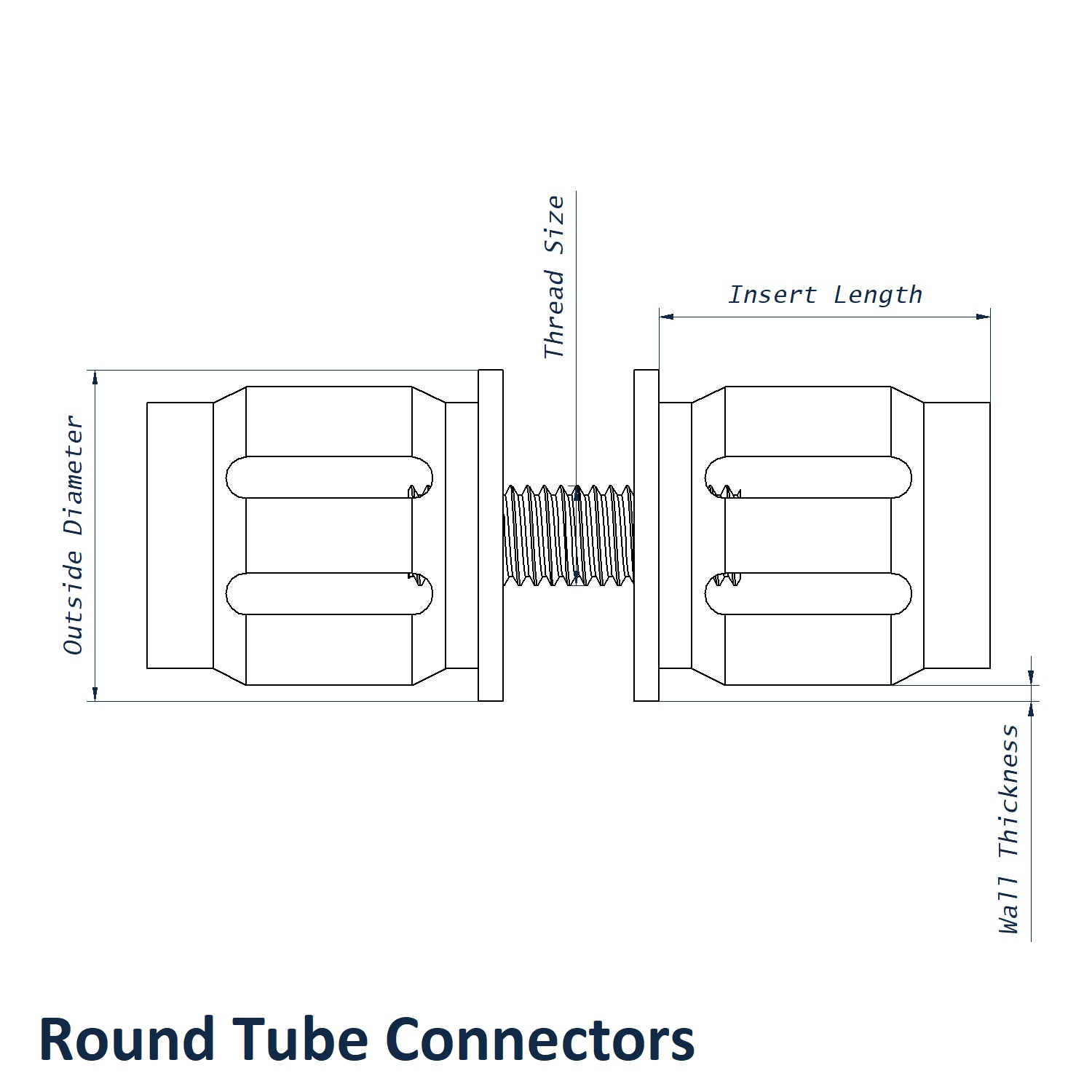

24mm Round Straight Connector Dimensions
- Outside Diameter: 24mm
- Wall Thickness: 1.5mm
- Internal Length: 20mm
- Thread Size: M6
- Material: Nylon
Key Benefits
- 1.5mm wall-thickness specification helps identify compatible round tubing.
- M6 thread size provides the specified expanding fixing for the connector.
- Ribbed profile helps the connector grip the inside of correctly sized round tubing.
- Straight 180° format is ideal for extending round tube assemblies.

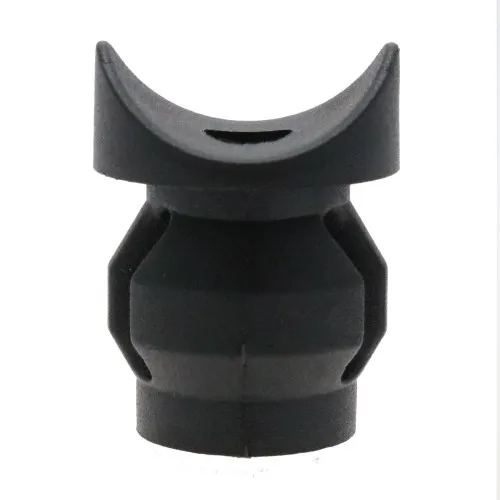

See our wider Round Straight Connectors range for other tube sizes and internal lengths. For more complete tube assemblies, pair these with our Saddle Tube Connectors to combine straight tube extensions with cross-frame connections. For product-selection support, speak with our team on 01233 713581.
| Code | Thread Size | Material | Outside Diameter | Wall Thickness | Internal Length | Stock | |
|---|---|---|---|---|---|---|---|
| TC118 | M6 | Nylon | 22mm | 1.5mm | 20mm |
Checking...
|
|
| TC119 | M6 | Nylon | 23mm | 1.0mm | 20mm |
Checking...
|
|
| TC120 | M6 | Nylon | 24mm | 1.0mm | 20mm |
Checking...
|
|
| TC123 | M6 | Nylon | 25mm | 1.5mm | 26mm |
Checking...
|
|
| TC122 | M6 | Nylon | 25mm | 1.0mm | 26mm |
Checking...
|
|
| TC124 | M6 | Nylon | 25mm | 2.0mm | 26mm |
Checking...
|
|
