22mm Round Tube Connector (M6 Thread) - 20mm Length - 1.5mm Wall | Nylon

Product code: TC118
View All Specifications
22mm Round Tube Connector (M6 Thread) - 20mm Length - 1.5mm Wall | Nylon
22mm Round Tube Connector (M6 Thread) - 20mm Length - 1.5mm Wall | Nylon
22mm Round Tube Connector (M6 Thread) - 20mm Length - 1.5mm Wall | Nylon
22mm Round Tube Connector (M6 Thread) - 20mm Length - 1.5mm Wall | Nylon
22mm Round Tube Connector (M6 Thread) - 20mm Length - 1.5mm Wall | Nylon
22mm Round Tube Connector (M6 Thread) - 20mm Length - 1.5mm Wall | Nylon
Quantity
Unit Price
(ex. VAT)
Unit Price
(inc. VAT)
1 - 99 £0.97 £1.17
100 - 249 £0.90 £1.08
250 - 499 £0.82 £0.99
500 - 999 £0.76 £0.91
1000 + £0.70 £0.84

£1.17 / each


Up to 103 units
In Stock
Vital Parts Tick
Order by for same day dispatch.
103 + units
Available for production
Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.

Product Specification
Outside Diameter 22mm
Wall Thickness 1.5mm
Internal Length 20mm
Thread Size M6
Material Nylon

Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.

Larger Order?

Call our sales team on

01233 713581


Frequently Bought Together

Total Price: £0.00

22mm Round Straight Connector | M6 Thread | 1.5mm Wall | Nylon

For modular structures and display systems, this 22mm straight tubing joiner joins two matching tube sections in a straight line without needing an external sleeve around the joint. Its Nylon body is sized for 1.5mm tube walls and uses a M6 threaded fixing to support a firm internal connection.

What Are Round Straight Connectors?

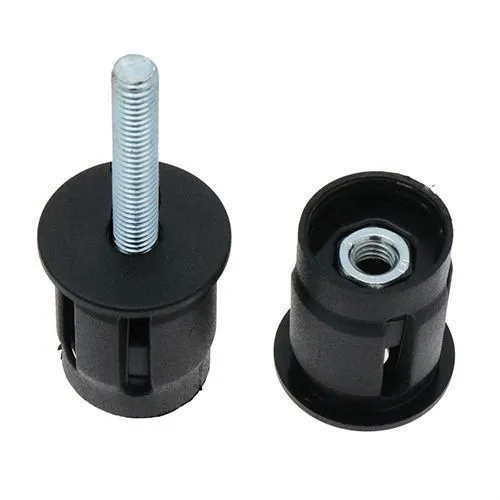

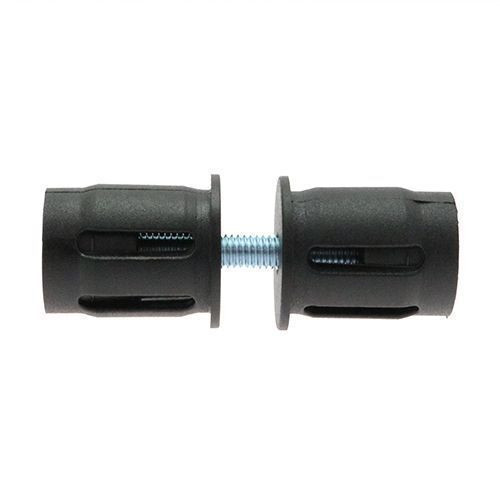

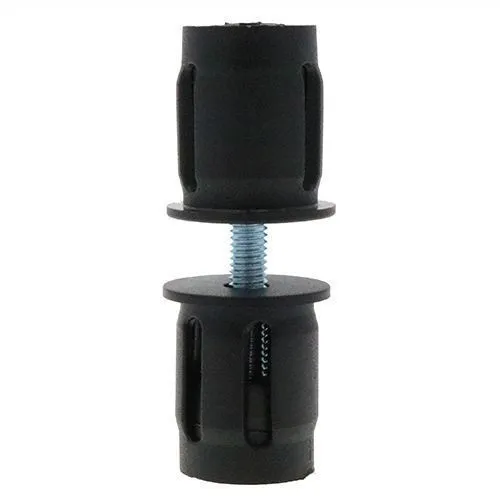

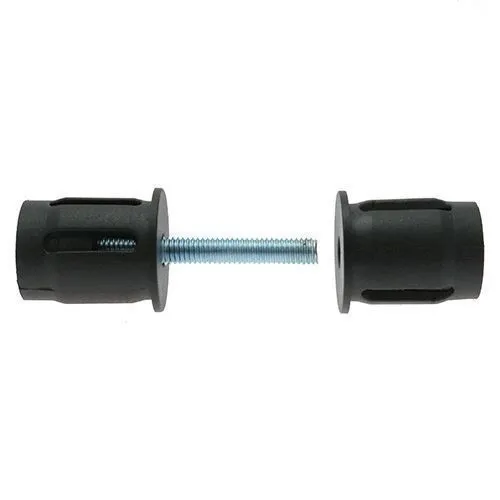

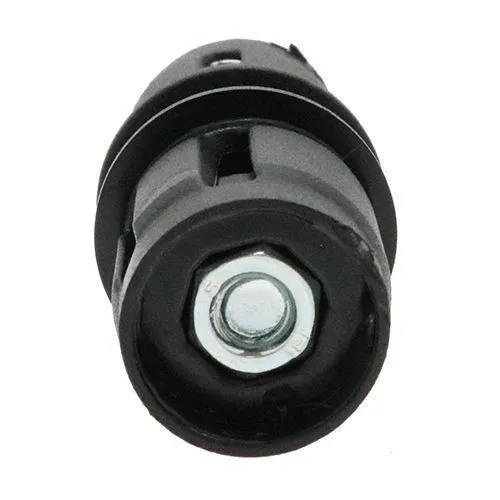

Round Straight Connectors are internal tube joiners designed to connect two matching round tubes in a straight 180° line. The ribbed Nylon body fits inside the tube ends and expands during tightening to help create a secure joint without an external connector around the outside.

Common Applications

  • Commercial Equipment: Joins matching tubes in suitable equipment frames and support structures.
  • Tubular Seating: Provides a concealed joining point within compatible chair and bench frame tubing.
  • Custom Tube Builds: Provides an internal connection for bespoke furniture, stands and fabricated round-tube assemblies.
  • Display Stands: Extends round tubing used in retail displays, exhibition stands and modular presentation frames.

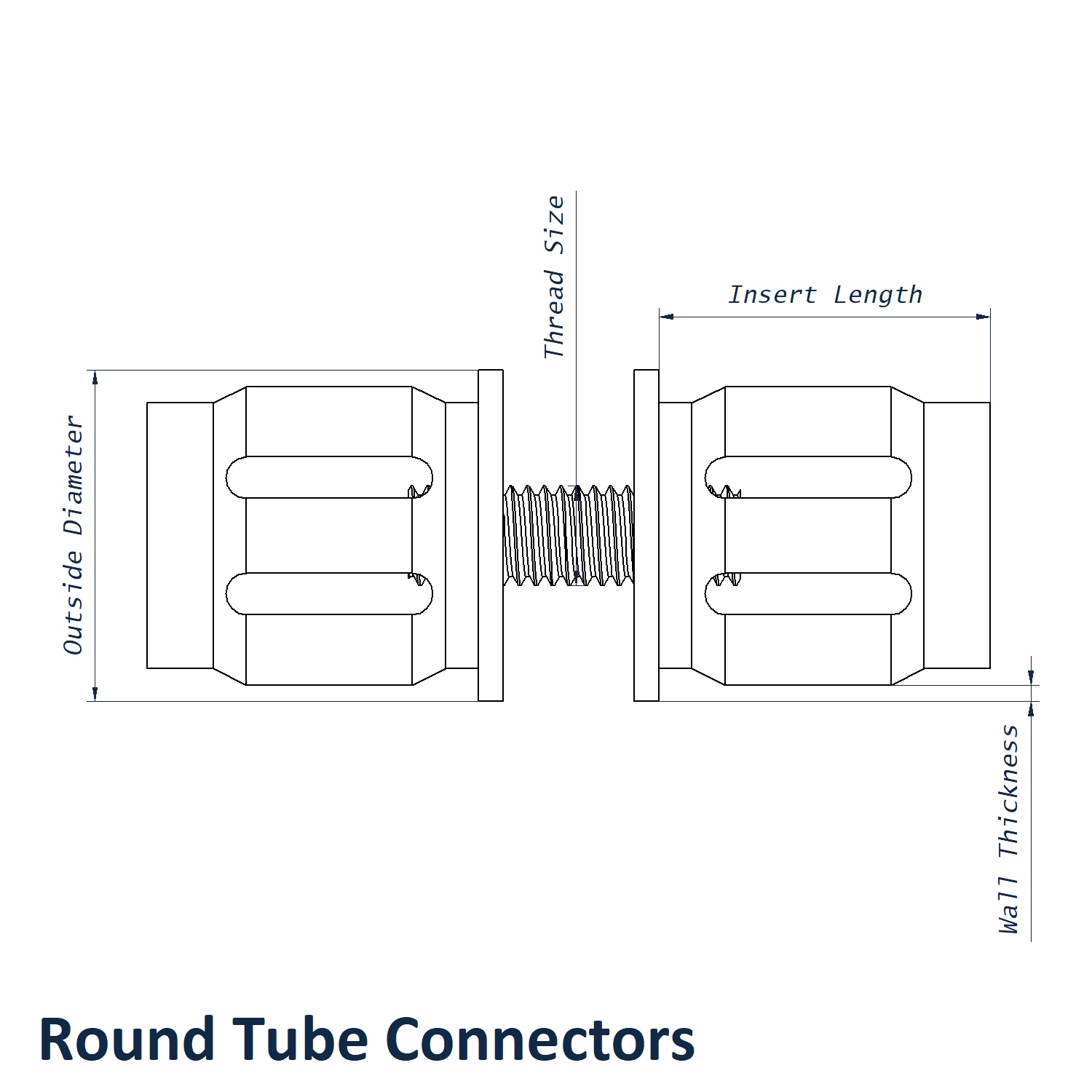

22mm Round Straight Connector Dimensions

  • Outside Diameter: 22mm
  • Wall Thickness: 1.5mm
  • Internal Length: 20mm
  • Thread Size: M6
  • Material: Nylon

Key Benefits

  • Straight 180° format is ideal for extending round tube assemblies.
  • 22mm outside diameter provides the main tube-size reference.
  • M6 thread size provides the specified expanding fixing for the connector.
  • Internal design creates a neat straight joint without an external sleeve around the tubing.

View the full Round Straight Connectors range to compare tube diameters, wall thicknesses and thread sizes. When building a larger tubular structure, these can be paired with our Saddle Tube Connectors for additional joining options. If you need help matching a connector to your tube, call us on 01233 713581.
