27mm Round Tube Connector (M6 Thread) - 26mm Length - 2.5mm Wall | Nylon

Product code: TC132
View All Specifications
27mm Round Tube Connector (M6 Thread) - 26mm Length - 2.5mm Wall | Nylon
27mm Round Tube Connector (M6 Thread) - 26mm Length - 2.5mm Wall | Nylon
27mm Round Tube Connector (M6 Thread) - 26mm Length - 2.5mm Wall | Nylon
27mm Round Tube Connector (M6 Thread) - 26mm Length - 2.5mm Wall | Nylon
27mm Round Tube Connector (M6 Thread) - 26mm Length - 2.5mm Wall | Nylon
27mm Round Tube Connector (M6 Thread) - 26mm Length - 2.5mm Wall | Nylon
Quantity
Unit Price
(ex. VAT)
Unit Price
(inc. VAT)
1 - 99 £1.24 £1.49
100 - 249 £1.03 £1.24
250 - 499 £0.87 £1.04
500 - 999 £0.67 £0.80
1000 + £0.55 £0.66

£1.49 / each


Up to 2 units
In Stock
Vital Parts Tick
Order by for same day dispatch.
2 + units
Available for production
Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.

Product Specification
Outside Diameter 27mm
Wall Thickness 2.5mm
Internal Length 26mm
Thread Size M6
Material Nylon

Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.

Larger Order?

Call our sales team on

01233 713581


Frequently Bought Together

Total Price: £0.00

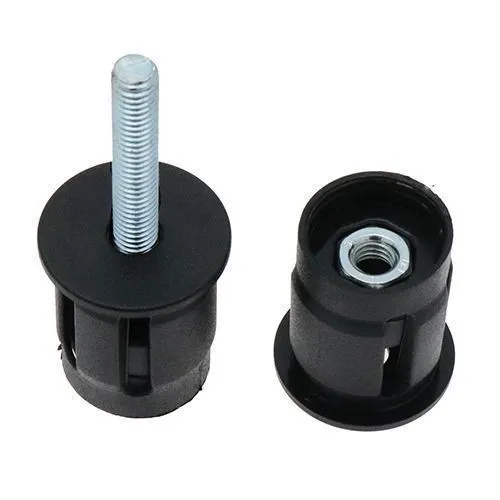

27mm Round Straight Connector | M6 Thread | 2.5mm Wall | Nylon

This 27mm tube frame connector suits tubular frames where two matching round sections need to be joined end to end. The internal Nylon connector uses adjustable ribs and a M6 fixing to grip inside tubing with a 2.5mm wall thickness.

What Are Round Straight Connectors?

Internal Round Tube Connectors combine a ribbed Nylon body with a threaded fixing to join two matching tube ends. They are commonly used in furniture, display systems and fabricated frames where a neat straight connection is required.

Common Applications

  • Modular Assemblies: Allows tubular sections to be connected and separated as part of modular frame designs.
  • General Fabrication: Supports straight tube extensions where an internal connector is preferred over an external sleeve.
  • Furniture Frames: Joins matching round tube sections in chairs, tables and other tubular furniture assemblies.
  • Fabricated Frames: Creates a straight internal joint between compatible tube sections in light engineering structures.

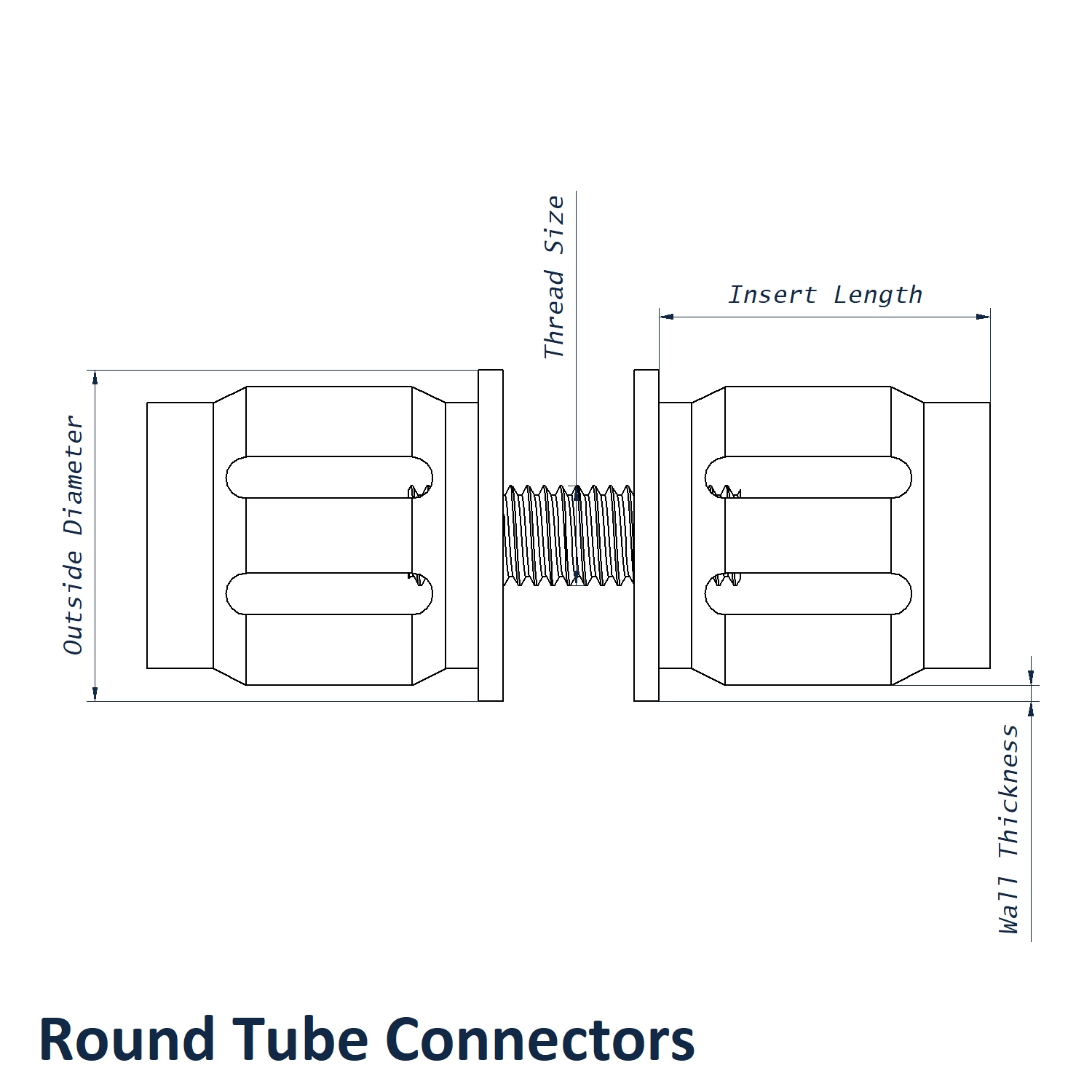

27mm Round Straight Connector Dimensions

  • Outside Diameter: 27mm
  • Wall Thickness: 2.5mm
  • Internal Length: 26mm
  • Thread Size: M6
  • Material: Nylon

Key Benefits

  • 26mm internal length provides the stated engagement inside the adjoining tube sections.
  • Nylon construction provides a lightweight durable body for internal tube assembly.
  • Expanding fixing supports secure retention and alignment between matching tube sections.
  • Concealed fit keeps the outside of the tubular frame clean and unobstructed.

Browse the complete Round Straight Connector collection for alternative sizes and thread options. They work particularly well alongside our Saddle Tube Connectors when a frame needs both end-to-end joints and perpendicular tube connections. We can help you choose the correct connector on 01233 713581.
