27mm Round Tube Connector (M6 Thread) - 26mm Length - 1.5mm Wall | Nylon
CAD Viewer
CAD Request
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £1.17 | £1.40 |
| 100 - 249 | £1.07 | £1.29 |
| 250 - 499 | £0.99 | £1.19 |
| 500 - 999 | £0.91 | £1.09 |
| 1000 + | £0.83 | £1.00 |
£1.40 / each
Product Specification
| Outside Diameter | 27mm |
| Wall Thickness | 1.5mm |
| Internal Length | 26mm |
| Thread Size | M6 |
| Material | Nylon |
Frequently Bought Together
- Thread Size M10
- Material Spring Steel
- Colour Chrome
- Outside Diameter 25mm
- Wall Thickness 1.5mm
- Material Nylon
- Colour Black
- Outside Diameter 20mm
- Wall Thickness 2.0mm
- Internal Length 36mm
- Thread Size M6
- Style Expanding
- Material Nylon
- Outside Diameter 27mm
- Wall Thickness 1.5mm
- Internal Length 20mm
Total Price: £0.00

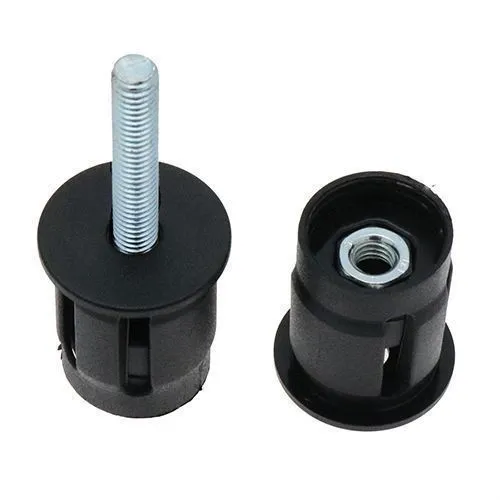

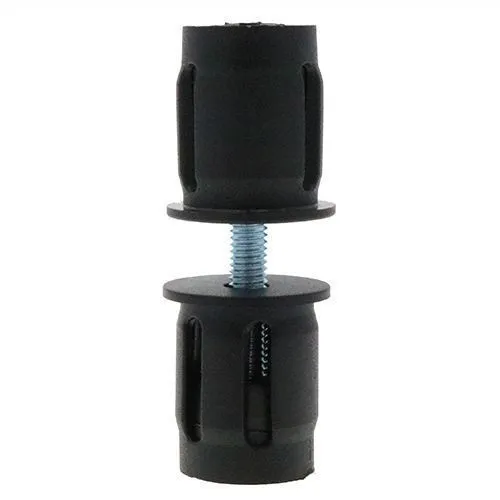

27mm Round Straight Connector | M6 Thread | 1.5mm Wall | Nylon
For lightweight machinery guards and support frames, this 27mm straight tubing joiner joins two matching tube sections in a straight line without needing an external sleeve around the joint. Its Nylon body is sized for 1.5mm tube walls and uses a M6 threaded fixing to support a firm internal connection.
What Are Round Straight Connectors?
Straight Tube Joiners are useful when a tubular frame needs to be extended or assembled from separate round sections. Their internal fit keeps the outside of the tube relatively clear while the threaded fixing helps lock the connector into place.
Common Applications
- General Fabrication: Supports straight tube extensions where an internal connector is preferred over an external sleeve.
- Custom Tube Builds: Provides an internal connection for bespoke furniture, stands and fabricated round-tube assemblies.
- Fabricated Frames: Creates a straight internal joint between compatible tube sections in light engineering structures.
- Commercial Equipment: Joins matching tubes in suitable equipment frames and support structures.

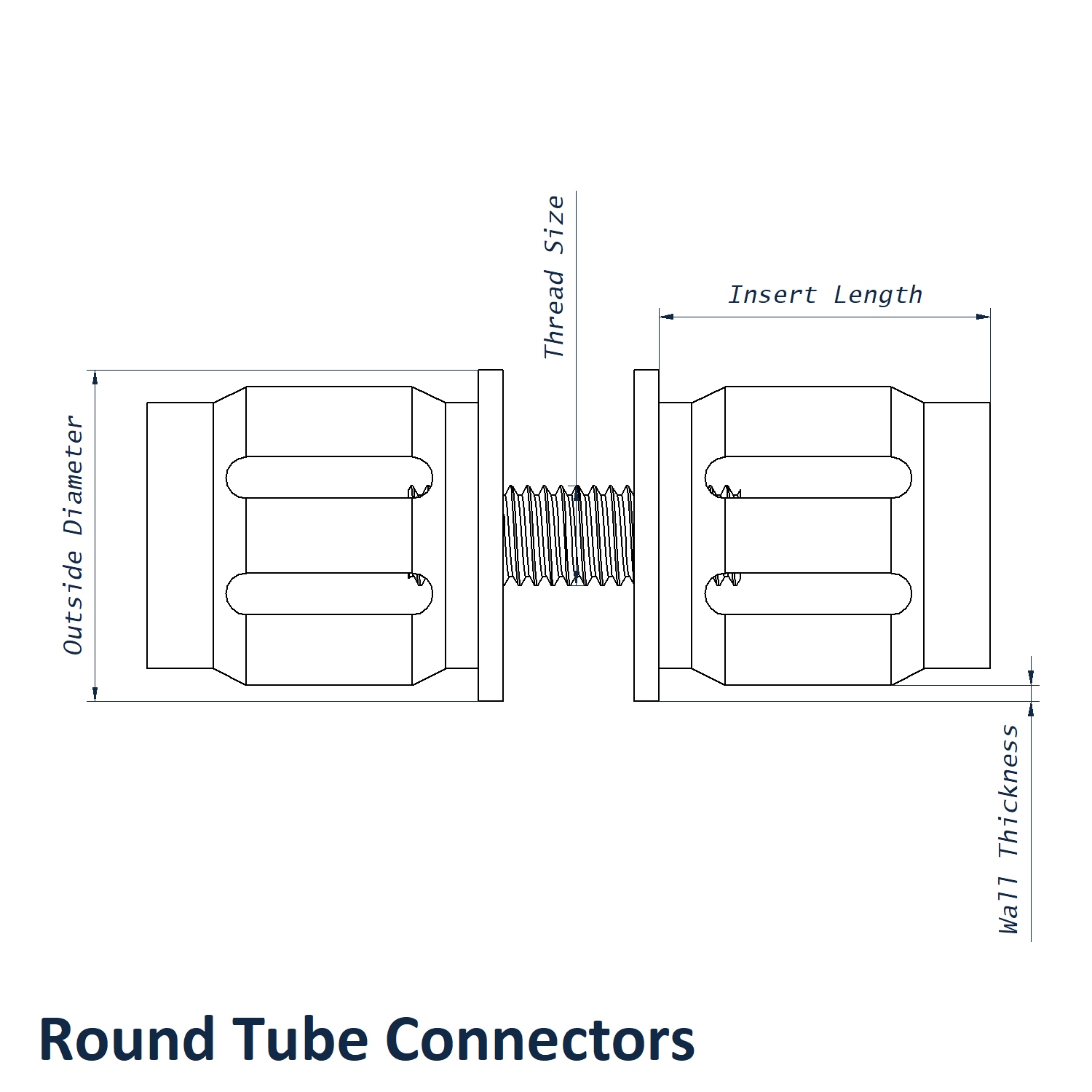

27mm Round Straight Connector Dimensions
- Outside Diameter: 27mm
- Wall Thickness: 1.5mm
- Internal Length: 26mm
- Thread Size: M6
- Material: Nylon
Key Benefits
- 27mm outside diameter provides the main tube-size reference.
- 26mm internal length provides the stated engagement inside the adjoining tube sections.
- Internal design creates a neat straight joint without an external sleeve around the tubing.
- Expanding fixing supports secure retention and alignment between matching tube sections.
View the full Round Straight Connectors range to compare tube diameters, wall thicknesses and thread sizes. These connectors are also great to pair with our Saddle Tube Connectors when building more complete tubular frames with both straight extensions and intersecting tube joints. If you need help matching a connector to your tube, call us on 01233 713581.
| Code | Thread Size | Material | Outside Diameter | Wall Thickness | Internal Length | Stock | |
|---|---|---|---|---|---|---|---|
| TC128 | M6 | Nylon | 26mm | 2.5mm | 26mm |
Checking...
|
|
| TC127 | M6 | Nylon | 26mm | 2.0mm | 26mm |
Checking...
|
|
| TC129 | M6 | Nylon | 27mm | 1.0mm | 26mm |
Checking...
|
|
| TC132 | M6 | Nylon | 27mm | 2.5mm | 26mm |
Checking...
|
|
| TC131 | M6 | Nylon | 27mm | 2.0mm | 26mm |
Checking...
|
|
| TC133 | M6 | Nylon | 28mm | 1.0mm | 26mm |
