28mm Round Tube Connector (M6 Thread) - 26mm Length - 2.5mm Wall | Nylon

Product code: TC136
View All Specifications
28mm Round Tube Connector (M6 Thread) - 26mm Length - 2.5mm Wall | Nylon
28mm Round Tube Connector (M6 Thread) - 26mm Length - 2.5mm Wall | Nylon
28mm Round Tube Connector (M6 Thread) - 26mm Length - 2.5mm Wall | Nylon
28mm Round Tube Connector (M6 Thread) - 26mm Length - 2.5mm Wall | Nylon
28mm Round Tube Connector (M6 Thread) - 26mm Length - 2.5mm Wall | Nylon
28mm Round Tube Connector (M6 Thread) - 26mm Length - 2.5mm Wall | Nylon
Quantity
Unit Price
(ex. VAT)
Unit Price
(inc. VAT)
1 - 99 £1.17 £1.40
100 - 249 £1.10 £1.32
250 - 499 £1.03 £1.24
500 - 999 £0.97 £1.16
1000 + £0.88 £1.06

£1.40 / each


Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.

Product Specification
Outside Diameter 28mm
Wall Thickness 2.5mm
Internal Length 26mm
Thread Size M6
Material Nylon

Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.

Larger Order?

Call our sales team on

01233 713581


Frequently Bought Together

Total Price: £0.00

28mm Round Straight Connector | M6 Thread | 2.5mm Wall | Nylon

For modular structures and display systems, this 28mm straight tube connector joins two matching tube sections in a straight line without needing an external sleeve around the joint. Its Nylon body is sized for 2.5mm tube walls and uses a M6 threaded fixing to support a firm internal connection.

What Are Round Straight Connectors?

Round Tube Connectors provide a concealed method of extending compatible tubular frames. Each connector sits inside adjoining tube sections and uses an expanding ribbed design to grip the internal wall which helps maintain alignment across the joint.

Common Applications

  • Fabricated Frames: Creates a straight internal joint between compatible tube sections in light engineering structures.
  • Commercial Equipment: Joins matching tubes in suitable equipment frames and support structures.
  • General Fabrication: Supports straight tube extensions where an internal connector is preferred over an external sleeve.
  • Custom Tube Builds: Provides an internal connection for bespoke furniture, stands and fabricated round-tube assemblies.

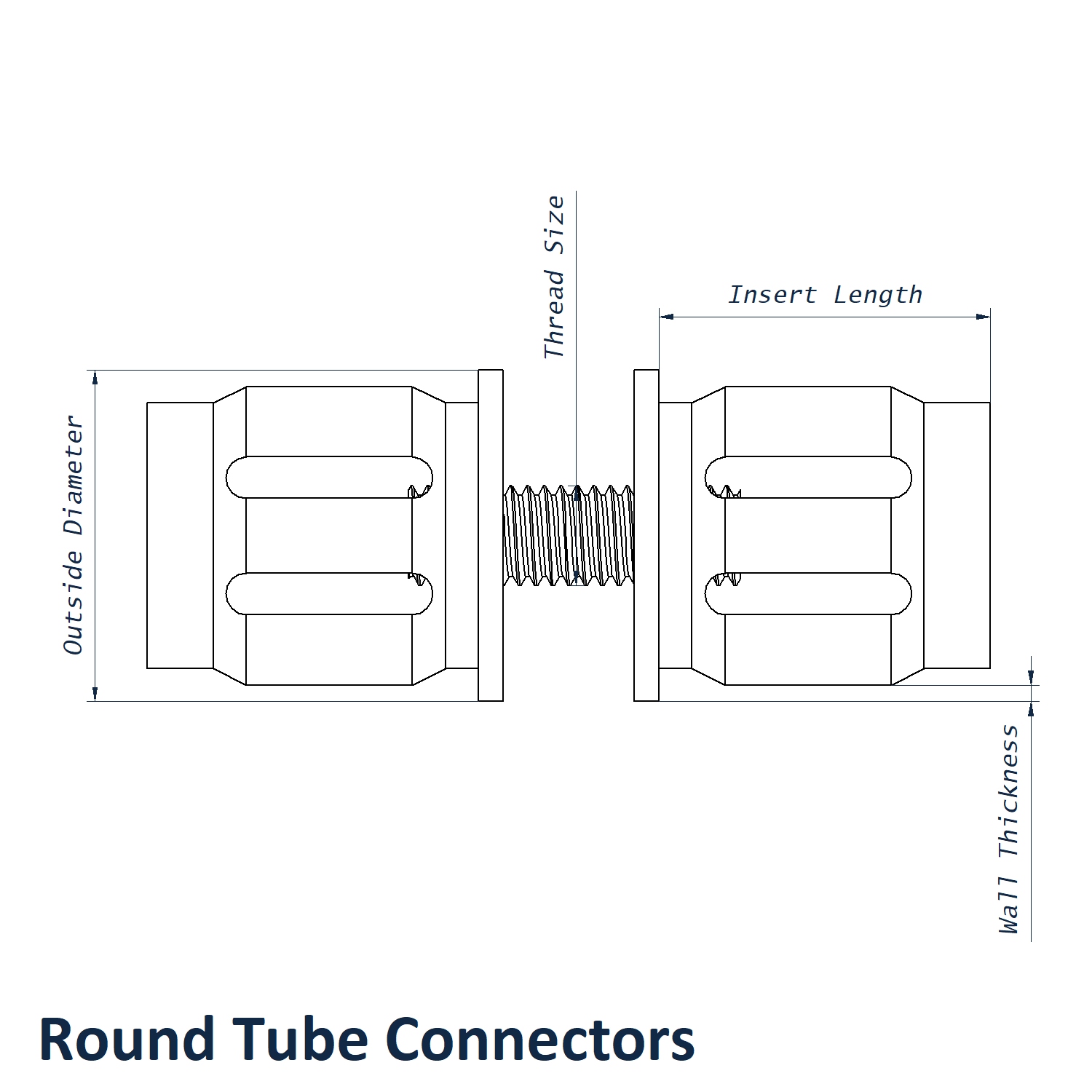

28mm Round Straight Connector Dimensions

  • Outside Diameter: 28mm
  • Wall Thickness: 2.5mm
  • Internal Length: 26mm
  • Thread Size: M6
  • Material: Nylon

Key Benefits

  • Ribbed profile helps the connector grip the inside of correctly sized round tubing.
  • Straight 180° format is ideal for extending round tube assemblies.
  • 2.5mm wall-thickness specification helps identify compatible round tubing.
  • M6 thread size provides the specified expanding fixing for the connector.

Browse the complete Round Straight Connector collection for alternative sizes and thread options. For more complete tube assemblies, pair these with our Saddle Tube Connectors to combine straight tube extensions with cross-frame connections. We can help you choose the correct connector on 01233 713581.
