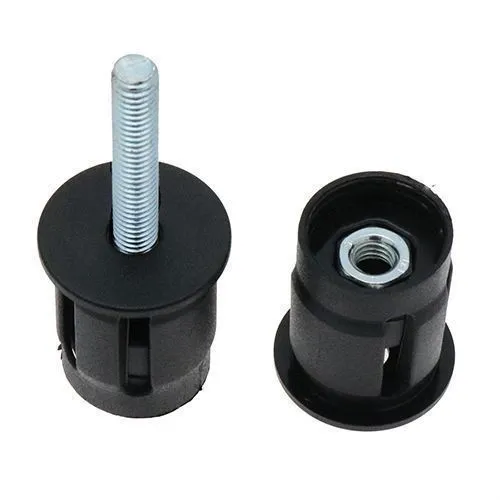

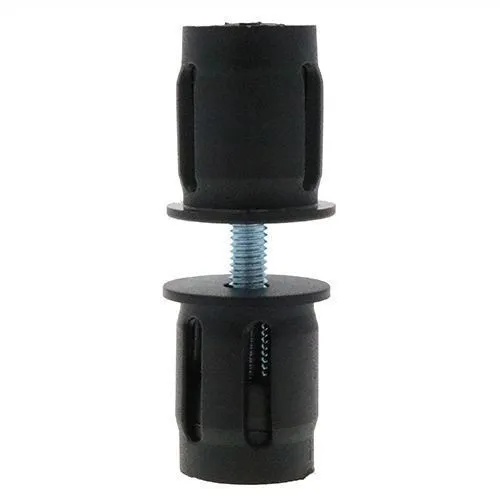

30mm Round Tube Connector (M6 Thread) - 26mm Length - 1.5mm Wall | Nylon

Product code: TC138
View All Specifications
30mm Round Tube Connector (M6 Thread) - 26mm Length - 1.5mm Wall | Nylon
30mm Round Tube Connector (M6 Thread) - 26mm Length - 1.5mm Wall | Nylon
30mm Round Tube Connector (M6 Thread) - 26mm Length - 1.5mm Wall | Nylon
30mm Round Tube Connector (M6 Thread) - 26mm Length - 1.5mm Wall | Nylon
30mm Round Tube Connector (M6 Thread) - 26mm Length - 1.5mm Wall | Nylon
30mm Round Tube Connector (M6 Thread) - 26mm Length - 1.5mm Wall | Nylon
Quantity
Unit Price
(ex. VAT)
Unit Price
(inc. VAT)
1 - 99 £1.41 £1.69
100 - 249 £1.29 £1.55
250 - 499 £1.19 £1.43
500 - 999 £1.10 £1.32
1000 + £1.01 £1.21

£1.69 / each


Up to 365 units
In Stock
Vital Parts Tick
Order by for same day dispatch.
365 + units
Available for production
Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.

Product Specification
Outside Diameter 30mm
Wall Thickness 1.5mm
Internal Length 26mm
Thread Size M6
Material Nylon

Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.

Larger Order?

Call our sales team on

01233 713581


Frequently Bought Together

Total Price: £0.00

30mm Round Straight Connector | M6 Thread | 1.5mm Wall | Nylon

This 30mm tube extension connector suits tubular frames where two matching round sections need to be joined end to end. The internal Nylon connector uses adjustable ribs and a M6 fixing to grip inside tubing with a 1.5mm wall thickness.

What Are Round Straight Connectors?

Straight Tube Joiners are useful when a tubular frame needs to be extended or assembled from separate round sections. Their internal fit keeps the outside of the tube relatively clear while the threaded fixing helps lock the connector into place.

Common Applications

  • Fabricated Frames: Creates a straight internal joint between compatible tube sections in light engineering structures.
  • Commercial Equipment: Joins matching tubes in suitable equipment frames and support structures.
  • General Fabrication: Supports straight tube extensions where an internal connector is preferred over an external sleeve.
  • Custom Tube Builds: Provides an internal connection for bespoke furniture, stands and fabricated round-tube assemblies.

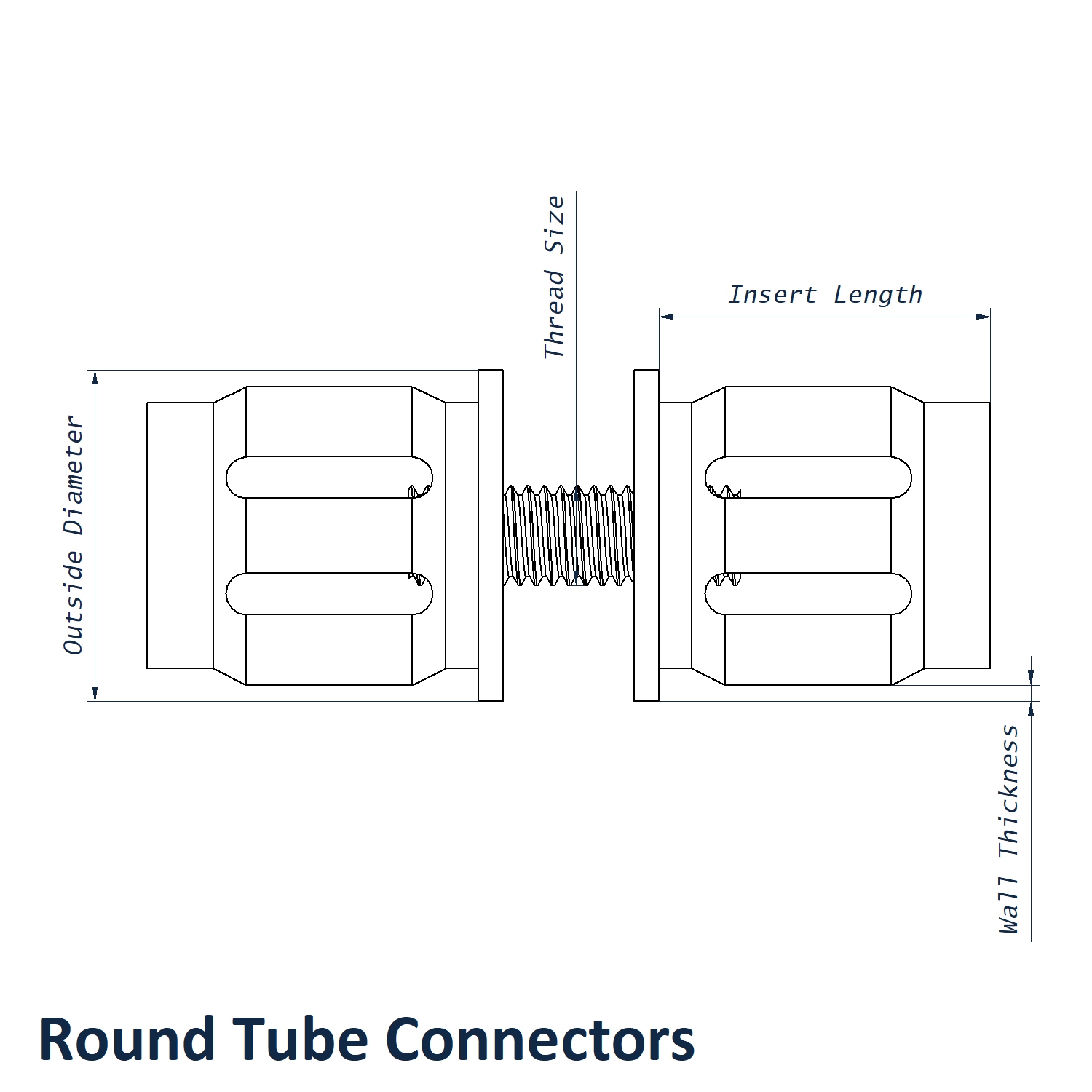

30mm Round Straight Connector Dimensions

  • Outside Diameter: 30mm
  • Wall Thickness: 1.5mm
  • Internal Length: 26mm
  • Thread Size: M6
  • Material: Nylon

Key Benefits

  • Straight 180° format is ideal for extending round tube assemblies.
  • 30mm outside diameter provides the main tube-size reference.
  • M6 thread size provides the specified expanding fixing for the connector.
  • Internal design creates a neat straight joint without an external sleeve around the tubing.

View the full Round Straight Connectors range to compare tube diameters, wall thicknesses and thread sizes. When building a larger tubular structure, these can be paired with our Saddle Tube Connectors for additional joining options. If you need help matching a connector to your tube, call us on 01233 713581.
