Rubber Lined P Clip 8mm, BZP
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 24 | £0.31 | £0.37 |
| 25 - 49 | £0.28 | £0.34 |
| 50 - 99 | £0.26 | £0.31 |
| 100 - 249 | £0.24 | £0.29 |
| 250 + | £0.23 | £0.27 |
Product Specification
| Clamping Diameter | 8mm |
| Width | 16mm |
| Plate Width | 12.7mm |
| Hole Diameter | M6 |
| Plate Thickness | 0.7mm |
| Material | Steel BZP |
Frequently Bought Together
Total Price: £0.00
8mm Rubber Lined P Clip | BZP Steel | M6 Fixing Hole
Used across installations where vibration and abrasion control are important, this 8mm rubber lined clamp gives pipes, hoses and cable runs a secure rubber-lined fixing.
The rubber lining helps protect painted, coated, plastic and flexible components from direct metal contact. The bright zinc plated steel body offers a practical and cost-effective option for indoor or controlled environments.
Common Applications
- Supporting pipe clips in production line guarding areas
- Fixing hydraulic and pneumatic hose routes around moving machinery
- Separating electrical looms from hot or abrasive surfaces
- Improving the finish of routed pipe and cable assemblies

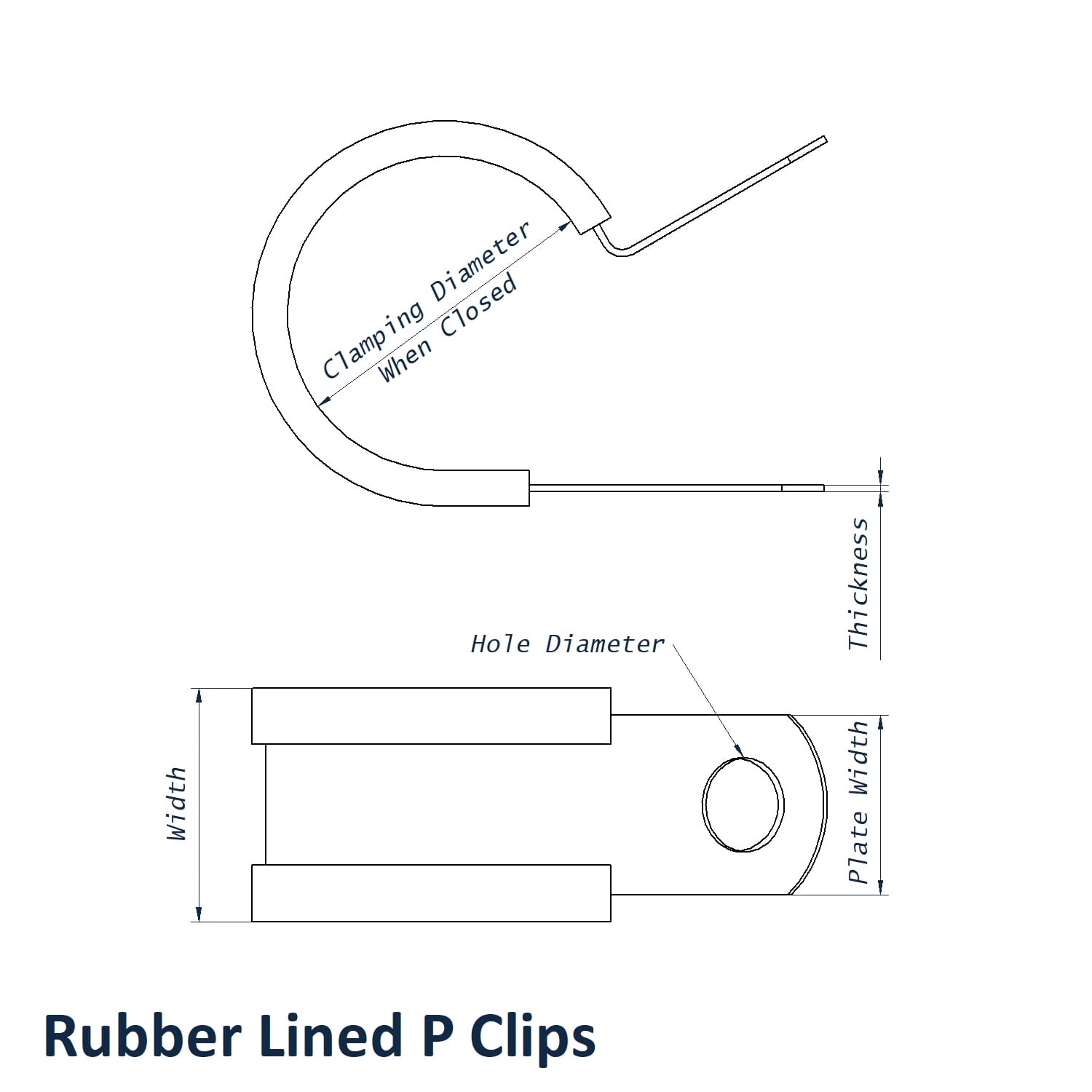

8mm BZP Steel Rubber Lined P Clip Dimensions
- Clamping Diameter: 8mm
- Width: 16mm
- Plate Width: 12.7mm
- Plate Thickness: 0.7mm
- Hole Diameter: M6
- Material: Steel BZP
Cable and Hose Retention
Select stainless steel for harsher locations and BZP steel for general indoor use. The same clamping diameter should always be checked against the actual outside size of the supported part.
View our full Rubber Lined P Clips range.
Product Support and Trade Orders
For sizing support, larger quantities or help choosing between BZP and A4 stainless steel, call the Vital Parts team on 01233 713581. We can advise on suitable options for pipework, cable management and hose retention projects.
