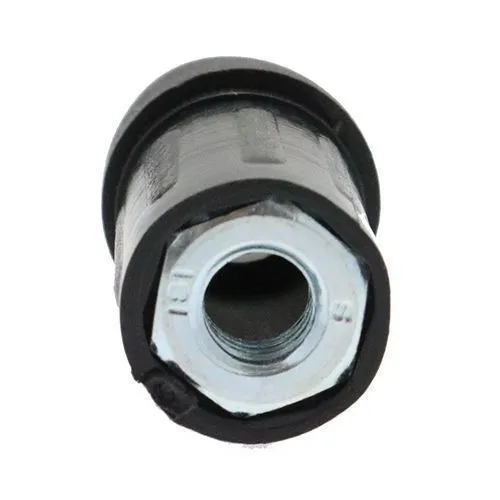

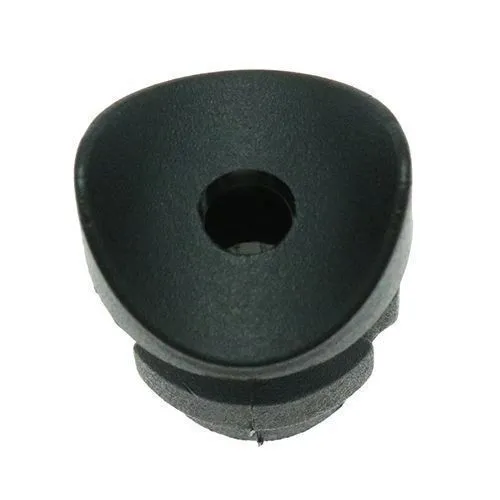

20mm Saddle Tube Connector (M6 Thread) - 20mm Length (Expanding) - 1mm Wall | Nylon

Product code: TC075
View All Specifications
20mm Saddle Tube Connector (M6 Thread) - 20mm Length (Expanding) - 1mm Wall | Nylon
20mm Saddle Tube Connector (M6 Thread) - 20mm Length (Expanding) - 1mm Wall | Nylon
20mm Saddle Tube Connector (M6 Thread) - 20mm Length (Expanding) - 1mm Wall | Nylon
20mm Saddle Tube Connector (M6 Thread) - 20mm Length (Expanding) - 1mm Wall | Nylon
20mm Saddle Tube Connector (M6 Thread) - 20mm Length (Expanding) - 1mm Wall | Nylon
20mm Saddle Tube Connector (M6 Thread) - 20mm Length (Expanding) - 1mm Wall | Nylon
Quantity
Unit Price
(ex. VAT)
Unit Price
(inc. VAT)
1 - 99 £0.75 £0.90
100 - 249 £0.62 £0.75
250 - 499 £0.53 £0.63
500 - 999 £0.43 £0.52
1000 + £0.37 £0.44

£0.90 / each


Up to 3 units
In Stock
Vital Parts Tick
Order by for same day dispatch.
3 + units
Available for production
Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.

Product Specification
Outside Diameter 20mm
Wall Thickness 1.0mm
Internal Length 20mm
Thread Size M6
Style Expanding
Material Nylon

Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.

Larger Order?

Call our sales team on

01233 713581


Frequently Bought Together

Total Price: £0.00

20mm Saddle Tube Connector – 1mm Wall | M6 Thread, Nylon (Expanding)

This Nylon saddle connector is intended for round tubular sections measuring 20mm outside diameter and 1mm wall thickness. A 20mm internal length and M6 threaded attachment make it suitable for planned junctions and detachable connections in frame assemblies.

What Are Saddle Tube Connectors?

A saddle connector helps create a tube-to-tube junction where a round section needs an internally positioned threaded connection. Matching the outside tube diameter and wall thickness is essential. We also offer tube connectors for round and square tubing for alternative frame geometries.

Common Applications

  • Display Stands: Fitting transverse round tubes to frames used for presentation stands and temporary installations.
  • Protective Frameworks: Connecting round tubing in non-load-rated equipment guards and enclosure structures.
  • Retail Displays: Building removable junctions for round-tube exhibition stands and shop display frameworks.
  • Workshop Fabrication: Adding a threaded connection point when assembling round metal tube structures without a welded joint.

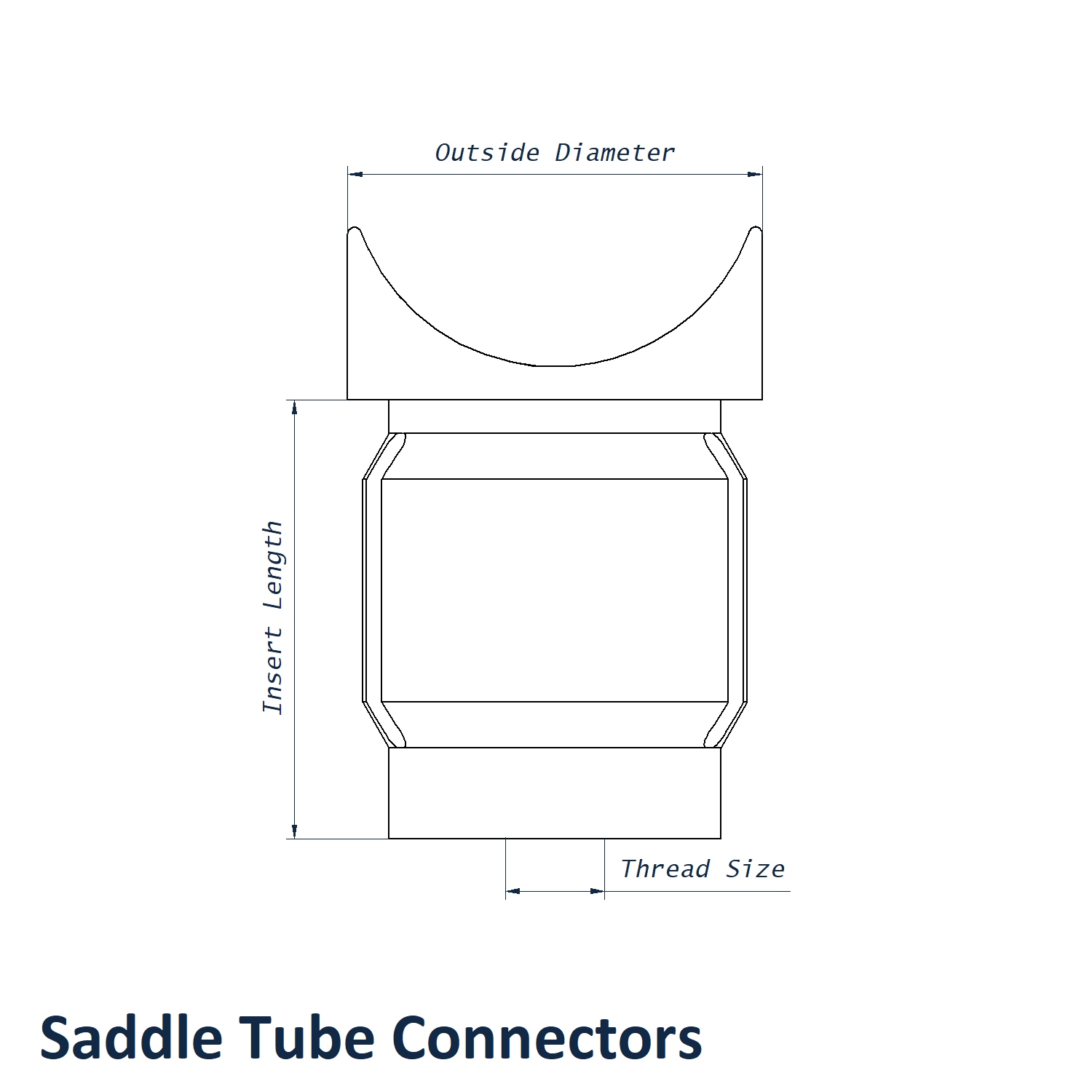

20mm M6 Saddle Tube Connector Dimensions

  • Outside Diameter: 20mm
  • Wall Thickness: 1mm
  • Internal Length: 20mm
  • Thread Size: M6
  • Material: Nylon
  • Style: Expanding

Key Benefits

  • The specified expanding style helps identify the intended fitting arrangement.
  • The connector supports T-joint assembly where the matching tube dimensions are known.
  • A 1mm wall-thickness specification helps avoid mismatches between the insert and tube.
  • The 20mm internal length allows fitting depth to be checked during assembly.

Compare other threaded saddle tube fittings to select the dimensions required by your frame. If you need help selecting the correct connector, call us on 01233 713581.
