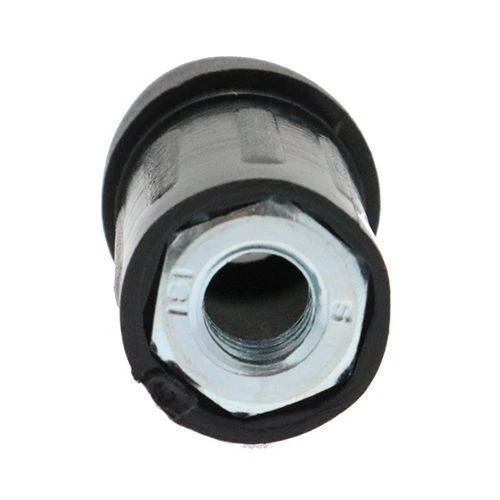

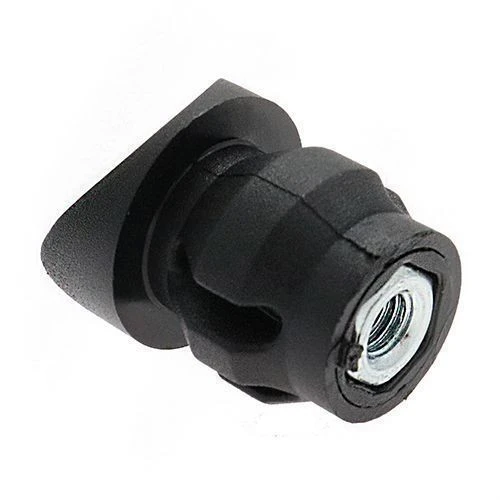

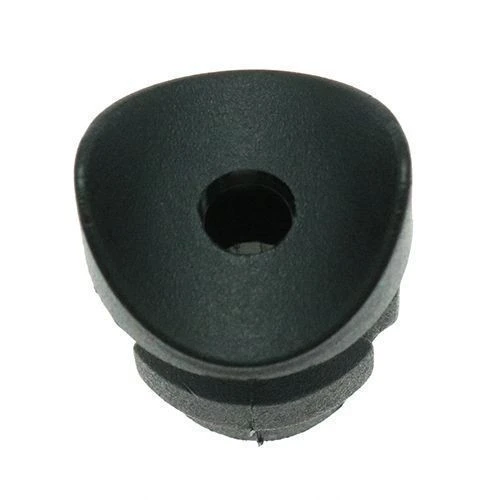

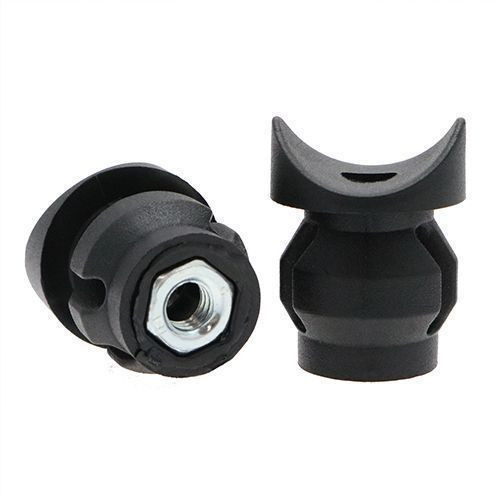

22mm Saddle Tube Connector (M6 Thread) - 20mm Length (Expanding) - 1mm Wall | Nylon

Product code: TC077
View All Specifications
22mm Saddle Tube Connector (M6 Thread) - 20mm Length (Expanding) - 1mm Wall | Nylon
22mm Saddle Tube Connector (M6 Thread) - 20mm Length (Expanding) - 1mm Wall | Nylon
22mm Saddle Tube Connector (M6 Thread) - 20mm Length (Expanding) - 1mm Wall | Nylon
22mm Saddle Tube Connector (M6 Thread) - 20mm Length (Expanding) - 1mm Wall | Nylon
22mm Saddle Tube Connector (M6 Thread) - 20mm Length (Expanding) - 1mm Wall | Nylon
22mm Saddle Tube Connector (M6 Thread) - 20mm Length (Expanding) - 1mm Wall | Nylon
Quantity
Unit Price
(ex. VAT)
Unit Price
(inc. VAT)
1 - 99 £0.78 £0.94
100 - 249 £0.65 £0.78
250 - 499 £0.54 £0.65
500 - 999 £0.45 £0.54
1000 + £0.38 £0.45

£0.94 / each


Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.

Product Specification
Outside Diameter 22mm
Wall Thickness 1mm
Internal Length 20mm
Thread Size M6
Style Expanding
Material Nylon

Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.

Larger Order?

Call our sales team on

01233 713581


Frequently Bought Together

Total Price: £0.00

22mm Saddle Tube Connector – 1mm Wall | M6 Thread, Nylon (Expanding)

This 22mm saddle tube connector fits round sections specified with a 1mm wall thickness. The Nylon body and M6 threaded connection allow a mating component to be fixed into a tubular assembly, with a 20mm internal length for insertion.

What Are Saddle Tube Connectors?

A saddle tube connector locates inside a compatible round tube and provides an M6 fixing point for joining an additional frame component. The stated wall thickness identifies the tubing it is intended to fit. Different configurations are available among our plastic tubing connectors.

Common Applications

  • Protective Frameworks: Connecting round tubing in non-load-rated equipment guards and enclosure structures.
  • Retail Displays: Building removable junctions for round-tube exhibition stands and shop display frameworks.
  • Workshop Fabrication: Adding a threaded connection point when assembling round metal tube structures without a welded joint.
  • Display Stands: Fitting transverse round tubes to frames used for presentation stands and temporary installations.

22mm M6 Saddle Tube Connector Dimensions

  • Outside Diameter: 22mm
  • Wall Thickness: 1mm
  • Internal Length: 20mm
  • Thread Size: M6
  • Material: Nylon
  • Style: Expanding

Key Benefits

  • The connector supports T-joint assembly where the matching tube dimensions are known.
  • A 1mm wall-thickness specification helps avoid mismatches between the insert and tube.
  • The 20mm internal length allows fitting depth to be checked during assembly.
  • The specified expanding style helps identify the intended fitting arrangement.

See more M6 saddle tube connectors to identify the right fit for your assembly. If you need help selecting the correct connector, call us on 01233 713581.
