Saddle Tube Connectors - TC076

Saddle Tube Connectors - 20mm Outside Diameter x 1.5mm Wall Thickness x M6 Thread - Nylon | Vital Parts - TC076

Our Saddle Tube Connectors are designed for secure and reliable connections in round tube assemblies, providing a strong ‘T-joint’ connection method. These connectors are widely used in structural frameworks, industrial applications, and assembly systems where tube reinforcement is necessary.

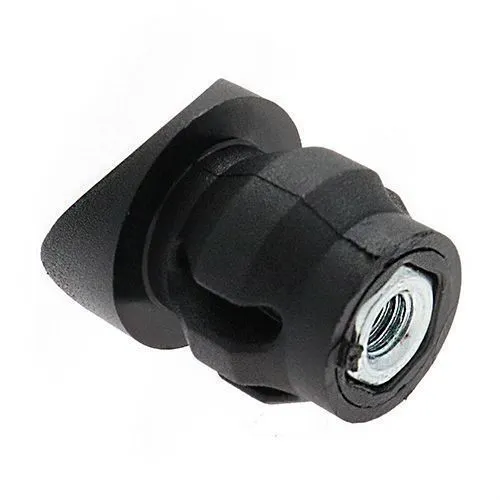

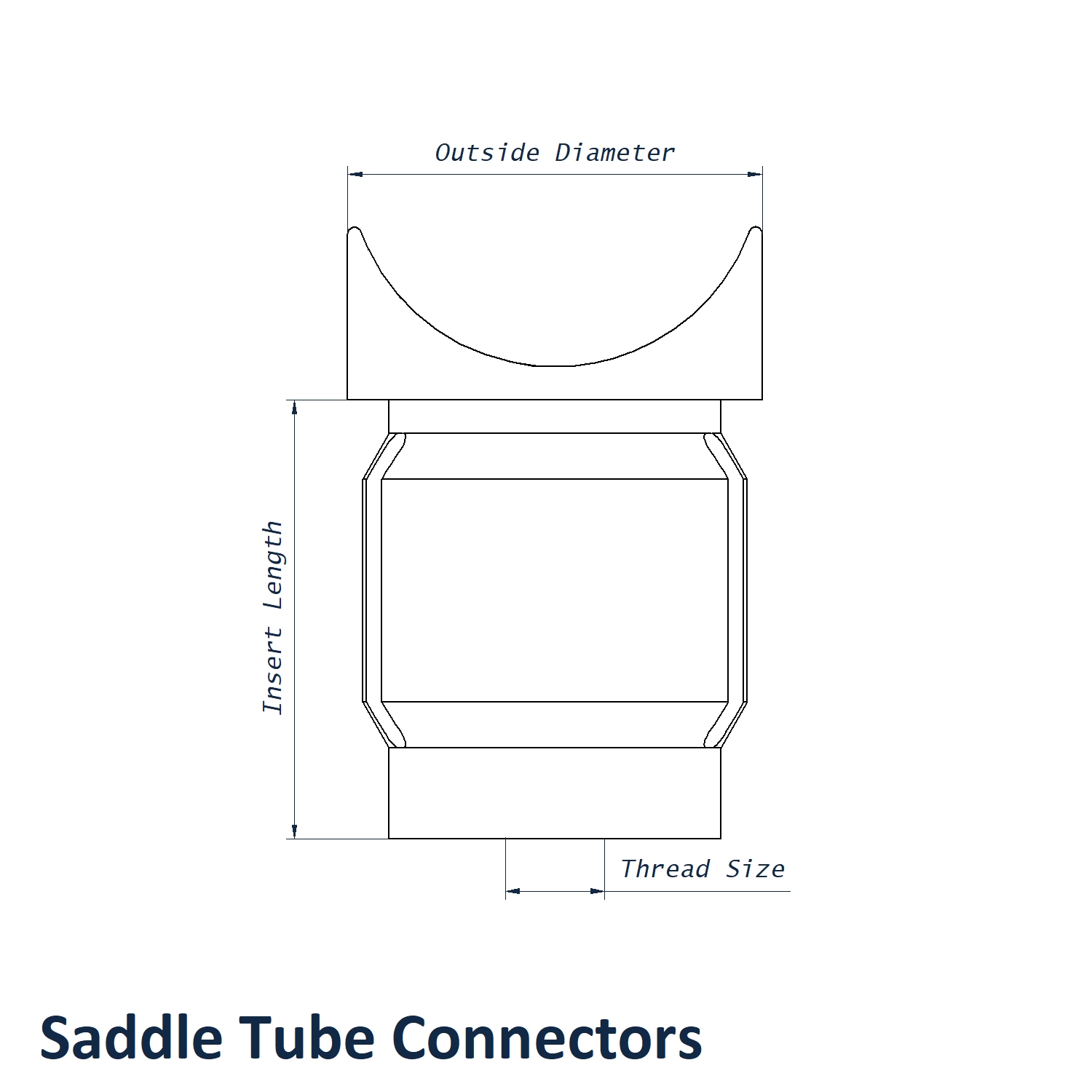

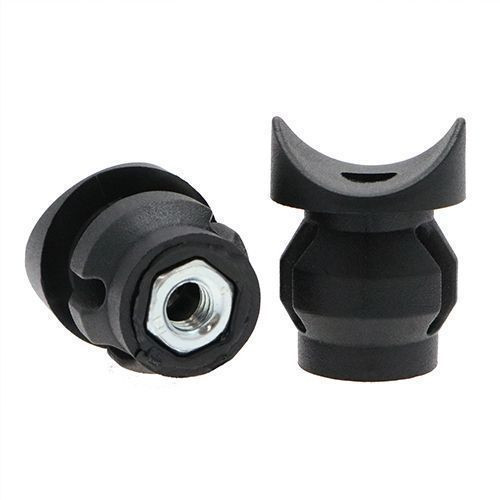

This saddle tube connector has an outside diameter of 20mm and a wall thickness of 1.5mm. It has an internal length of 20mm and a M6 thread size. It is available in a black coloured Nylon.

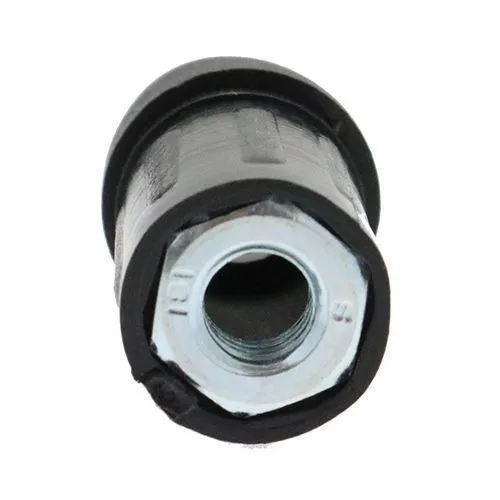

This product is manufactured using a high-quality pairing of Nylon 6/6 and a Zinc-Plated Steel Nut, ensuring a durable and long-lasting solution for tube assembly. Each connector features expanding ribs and a threaded insert, allowing for a firm grip and accommodating different tube diameters and wall thicknesses. This makes them suitable for even the thinnest tubular or framed applications.

What Are Saddle Tube Connectors?

Saddle Tube Connectors are essential components used in round tube assemblies to provide secure joining and structural support. They function by offering a T-section connection, enabling users to reinforce and extend tube structures efficiently. Their robust design and high-quality material make them ideal for various assembly applications, ensuring a reliable hold with minimal effort.

Key Features:

• Manufactured from Nylon 6/6 & Zinc-Plated Steel Nut - Combining strength, durability, and resistance to wear.
• Designed for use with round tubes - Ensures a secure and firm fit for structural applications.
• Threaded insert for easy fixing - Provides a robust connection without the need for welding.
• Expanding ribs for superior grip - Ensures compatibility with varying wall thicknesses and prevents loosening over time.
• Available in multiple sizes - Stocked in tube diameters ranging from 15mm to 32mm with options for double-ended connectors.

Applications:

Our Saddle Tube Connectors are ideal for:

• Industrial and commercial framework assemblies
• Furniture and racking systems
• Display structures and signage installations
• Handrails and safety barriers
• Custom fabrication projects requiring tubular joints

Benefits:

• Secure Connection - Ensures a tight and firm fit to reinforce round tube assemblies.
• High Durability - Resistant to corrosion and wear, offering long-term reliability.
• Versatile Use - Compatible with a range of tube sizes and wall thicknesses.
• Ease of Installation - No special tools or welding required, making assembly quick and hassle-free.
• Enhanced Stability - Prevents tube movement or misalignment in structural applications.

Conclusion

Our Saddle Tube Connectors provide an effective and durable solution for creating strong T-joint connections in round tube applications. Manufactured from Nylon 6/6 and Zinc-Plated Steel, they offer excellent resistance to wear and corrosion, making them a reliable choice for industrial, commercial, and custom applications. Available in various sizes and configurations, these connectors are an essential component for any tube-based structure. For more information or to request a free sample, check our available product sizes or contct us at 01233 713581.
