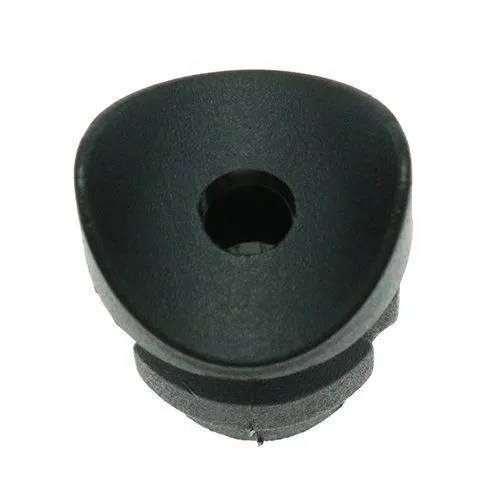

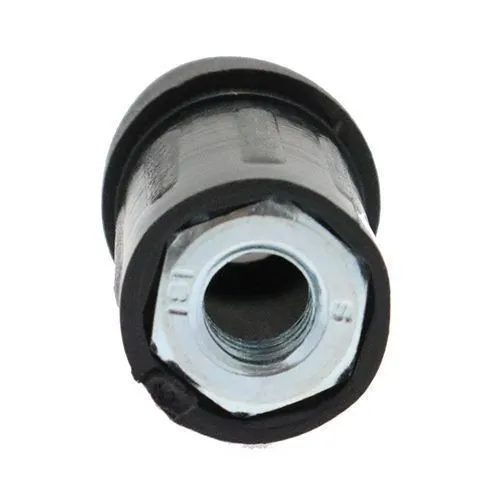

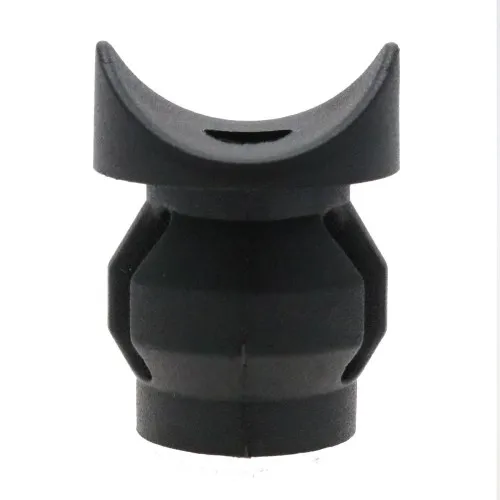

27mm Saddle Tube Connector (M6 Thread) - 20mm Length (Expanding) - 2mm Wall | Nylon

Product code: TC091
View All Specifications
27mm Saddle Tube Connector (M6 Thread) - 20mm Length (Expanding) - 2mm Wall | Nylon
27mm Saddle Tube Connector (M6 Thread) - 20mm Length (Expanding) - 2mm Wall | Nylon
27mm Saddle Tube Connector (M6 Thread) - 20mm Length (Expanding) - 2mm Wall | Nylon
27mm Saddle Tube Connector (M6 Thread) - 20mm Length (Expanding) - 2mm Wall | Nylon
27mm Saddle Tube Connector (M6 Thread) - 20mm Length (Expanding) - 2mm Wall | Nylon
27mm Saddle Tube Connector (M6 Thread) - 20mm Length (Expanding) - 2mm Wall | Nylon
Quantity
Unit Price
(ex. VAT)
Unit Price
(inc. VAT)
1 - 99 £0.84 £1.01
100 - 249 £0.70 £0.84
250 - 499 £0.58 £0.70
500 - 999 £0.49 £0.59
1000 + £0.42 £0.50

£1.01 / each


Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.

Product Specification
Outside Diameter 27mm
Wall Thickness 2.0mm
Internal Length 20mm
Thread Size M6
Style Expanding
Material Nylon

Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.

Larger Order?

Call our sales team on

01233 713581


Frequently Bought Together

Total Price: £0.00

27mm Saddle Tube Connector – 2mm Wall | M6 Thread, Nylon (Expanding)

Where a tubular framework needs a T-section connection, this 27mm Nylon saddle tube connector is an option for tubing with 2mm walls. The M6 thread offers a fixing point while the 20mm internal length describes the portion installed within the round section.

What Are Saddle Tube Connectors?

A saddle connector helps create a tube-to-tube junction where a round section needs an internally positioned threaded connection. Matching the outside tube diameter and wall thickness is essential. We also offer tube connectors for round and square tubing for alternative frame geometries.

Common Applications

  • Protective Frameworks: Connecting round tubing in non-load-rated equipment guards and enclosure structures.
  • Retail Displays: Building removable junctions for round-tube exhibition stands and shop display frameworks.
  • Workshop Fabrication: Adding a threaded connection point when assembling round metal tube structures without a welded joint.
  • Display Stands: Fitting transverse round tubes to frames used for presentation stands and temporary installations.

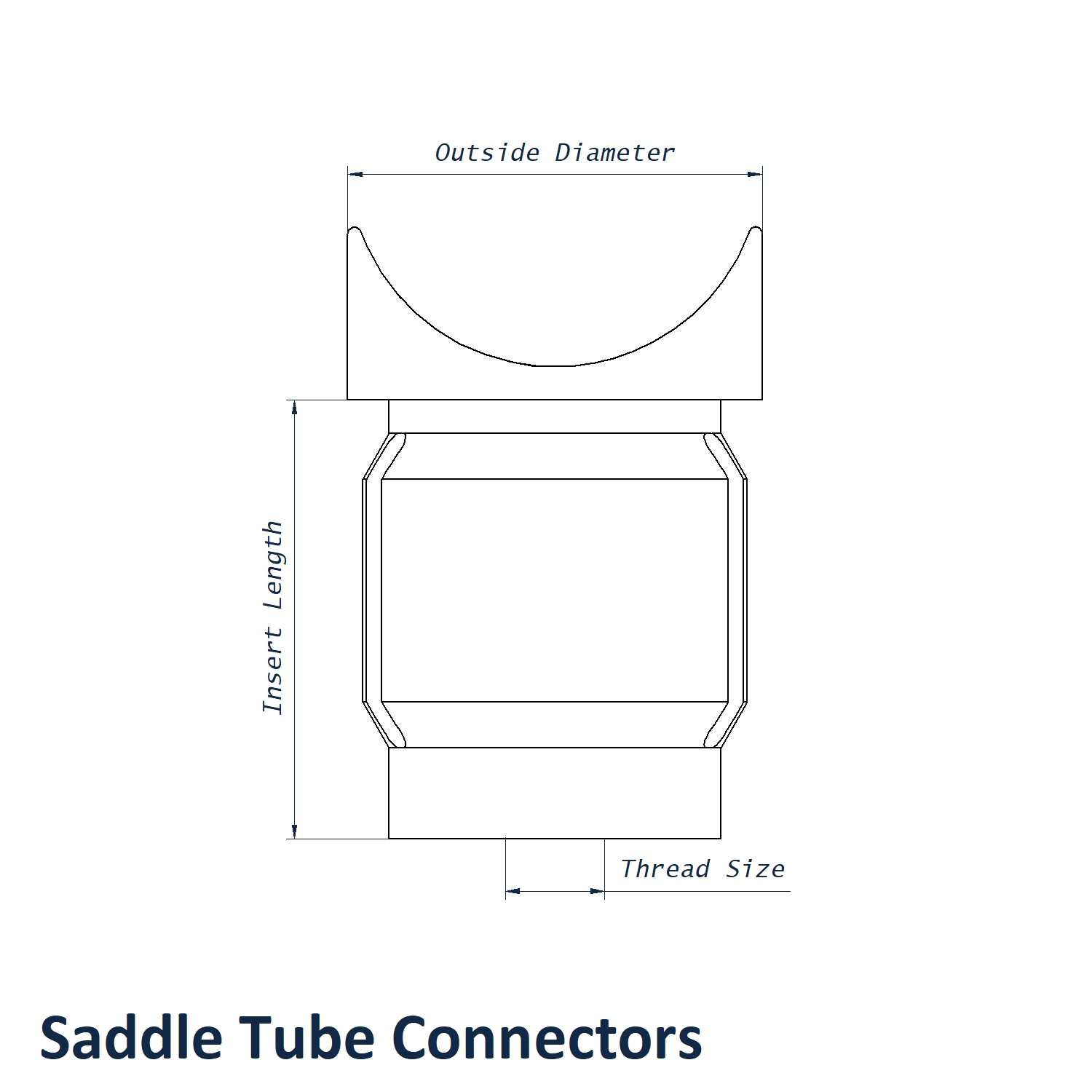

27mm M6 Saddle Tube Connector Dimensions

  • Outside Diameter: 27mm
  • Wall Thickness: 2mm
  • Internal Length: 20mm
  • Thread Size: M6
  • Material: Nylon
  • Style: Expanding

Key Benefits

  • The connector supports T-joint assembly where the matching tube dimensions are known.
  • A 2mm wall-thickness specification helps avoid mismatches between the insert and tube.
  • The 20mm internal length allows fitting depth to be checked during assembly.
  • The specified expanding style helps identify the intended fitting arrangement.

Compare other threaded saddle tube fittings to select the dimensions required by your frame. If you need help selecting the correct connector, call us on 01233 713581.
