28mm Saddle Tube Connector (M6 Thread) - 20mm Length (Expanding) - 1mm Wall | Nylon
CAD Viewer
CAD Request
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.91 | £1.09 |
| 100 - 249 | £0.75 | £0.90 |
| 250 - 499 | £0.63 | £0.76 |
| 500 - 999 | £0.53 | £0.63 |
| 1000 + | £0.44 | £0.53 |
£1.09 / each
Product Specification
| Outside Diameter | 28mm |
| Wall Thickness | 1.0mm |
| Internal Length | 20mm |
| Thread Size | M6 |
| Style | Expanding |
| Material | Nylon |
Frequently Bought Together
- Thread Size M8
- Material Spring Steel
- Colour Chrome
- Outside Diameter 25mm
- Wall Thickness 1.2mm
- Material Nylon
- Colour Black
- Outside Diameter 25mm
- Wall Thickness 1.5mm
- Internal Length 71mm
- Thread Size M6
- Material Nylon
- Outside Diameter 28mm
- Wall Thickness 1.0mm
- Internal Length 26mm
Total Price: £0.00

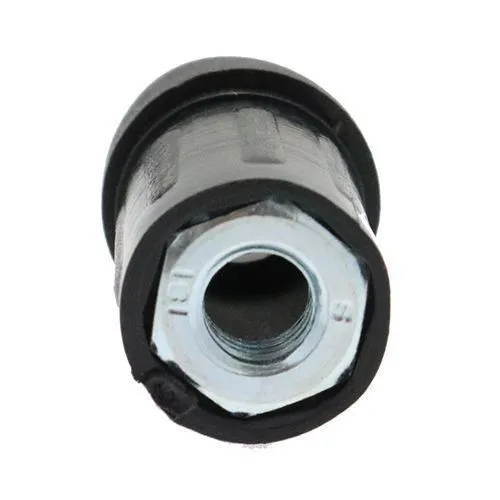

28mm Saddle Tube Connector – 1mm Wall | M6 Thread, Nylon (Expanding)
This Nylon saddle connector is intended for round tubular sections measuring 28mm outside diameter and 1mm wall thickness. A 20mm internal length and M6 threaded attachment make it suitable for planned junctions and detachable connections in frame assemblies.
What Are Saddle Tube Connectors?
A saddle tube connector locates inside a compatible round tube and provides an M6 fixing point for joining an additional frame component. The stated wall thickness identifies the tubing it is intended to fit. Different configurations are available among our plastic tubing connectors.
Common Applications
- Retail Displays: Building removable junctions for round-tube exhibition stands and shop display frameworks.
- Workshop Fabrication: Adding a threaded connection point when assembling round metal tube structures without a welded joint.
- Display Stands: Fitting transverse round tubes to frames used for presentation stands and temporary installations.
- Protective Frameworks: Connecting round tubing in non-load-rated equipment guards and enclosure structures.

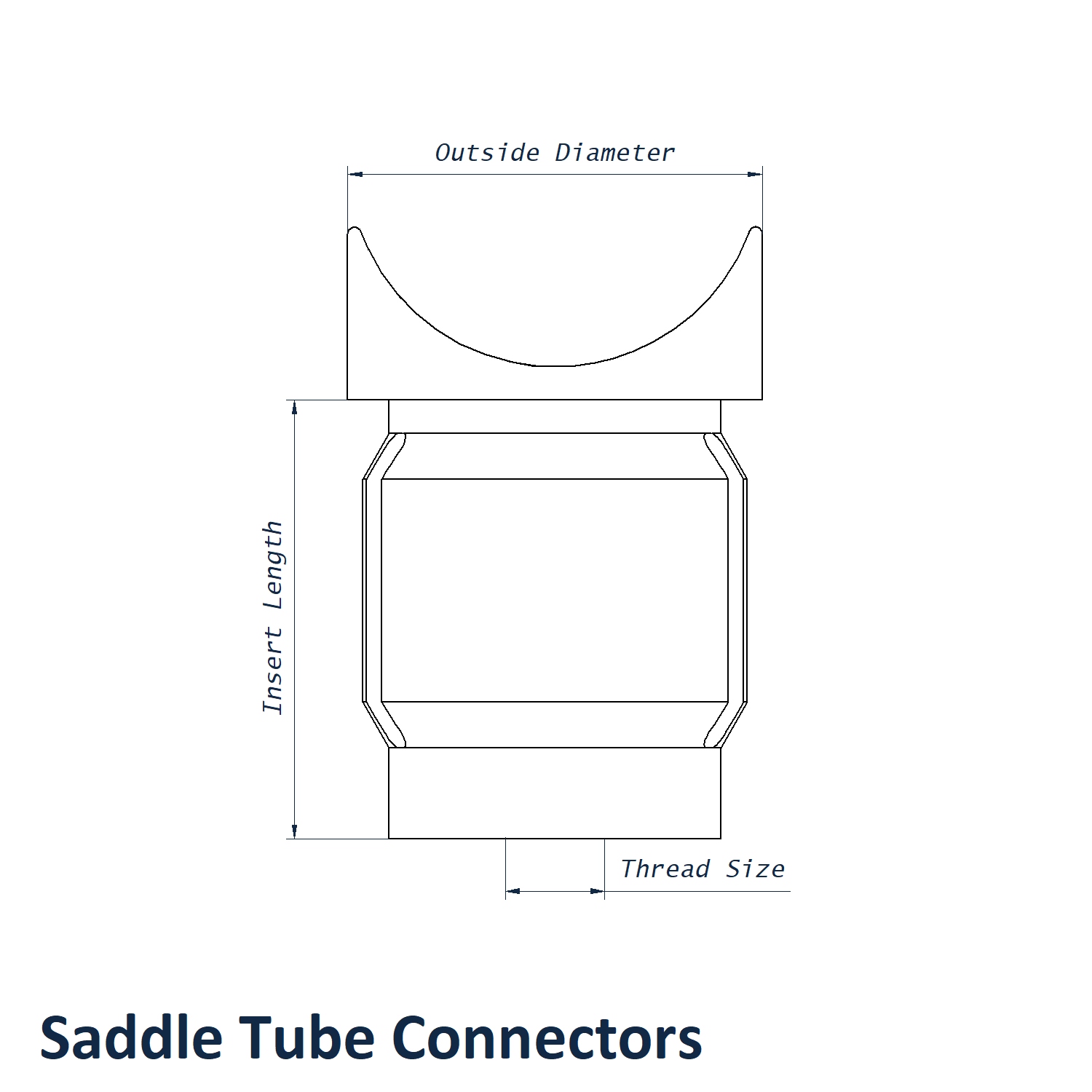

28mm M6 Saddle Tube Connector Dimensions
- Outside Diameter: 28mm
- Wall Thickness: 1mm
- Internal Length: 20mm
- Thread Size: M6
- Material: Nylon
- Style: Expanding
Key Benefits
- A 1mm wall-thickness specification helps avoid mismatches between the insert and tube.
- The 20mm internal length allows fitting depth to be checked during assembly.
- The specified expanding style helps identify the intended fitting arrangement.
- The connector supports T-joint assembly where the matching tube dimensions are known.
See more M6 saddle tube connectors to identify the right fit for your assembly. If you need help selecting the correct connector, call us on 01233 713581.
| Code | Thread Size | Style | Material | Outside Diameter | Wall Thickness | Internal Length | Stock | |
|---|---|---|---|---|---|---|---|---|
| TC090 | M6 | Expanding | Nylon | 27mm | 1.5mm | 20mm |
Checking...
|
|
| TC092 | M6 | Expanding | Nylon | 27mm | 2.5mm | 20mm |
Checking...
|
|
| TC091 | M6 | Expanding | Nylon | 27mm | 2.0mm | 20mm |
Checking...
|
|
| TC094 | M6 | Expanding | Nylon | 28mm | 1.5mm | 20mm |
Checking...
|
|
| TC096 | M6 | Expanding | Nylon | 28mm | 2.5mm | 20mm |
Checking...
|
|
| TC095 | M6 | Expanding | Nylon | 28mm | 2.0mm | 20mm |
Checking...
|
|
