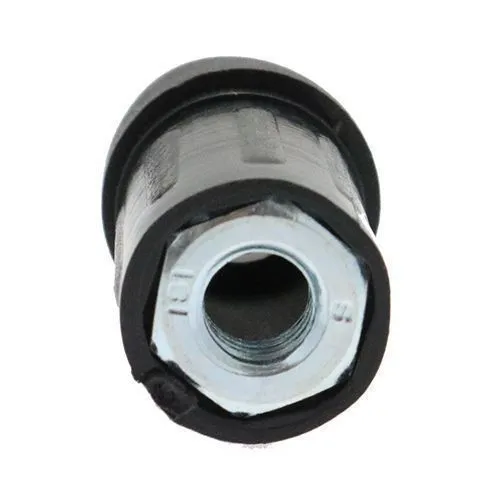

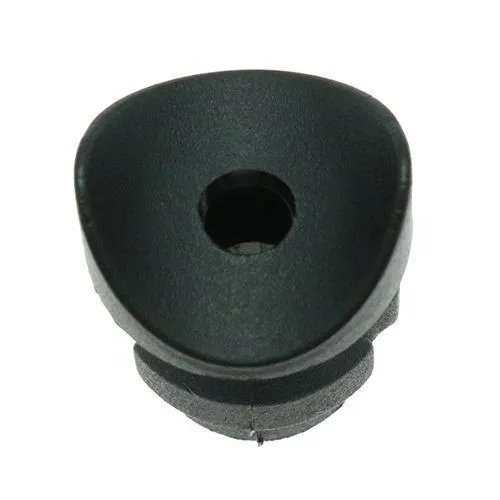

28mm Saddle Tube Connector (M6 Thread) - 20mm Length (Expanding) - 1.5mm Wall | Nylon
CAD Viewer
CAD Request
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.89 | £1.07 |
| 100 - 249 | £0.74 | £0.89 |
| 250 - 499 | £0.62 | £0.75 |
| 500 - 999 | £0.52 | £0.62 |
| 1000 + | £0.43 | £0.52 |
£1.07 / each
Product Specification
| Outside Diameter | 28mm |
| Wall Thickness | 1.5mm |
| Internal Length | 20mm |
| Thread Size | M6 |
| Style | Expanding |
| Material | Nylon |
Frequently Bought Together
- Thread Size M10
- Material Spring Steel
- Colour Chrome
- Outside Diameter 25mm
- Wall Thickness 1.5mm
- Material Nylon
- Colour Black
- Outside Diameter 25mm
- Wall Thickness 1.5mm
- Internal Length 55mm
- Thread Size M6
- Material Nylon
- Outside Diameter 28mm
- Wall Thickness 1.5mm
- Internal Length 26mm
Total Price: £0.00
28mm Saddle Tube Connector – 1.5mm Wall | M6 Thread, Nylon (Expanding)
Designed for 28mm outside diameter round tubing with a 1.5mm wall, this Nylon saddle tube connector provides an M6 threaded fixing point for a tubular T-joint. Its expanding configuration accommodates a 20mm internal fitting length and suits compatible frame sections used in furniture and equipment.
What Are Saddle Tube Connectors?
Saddle tube connectors are fittings that enable round tube sections to be joined at a T-shaped junction using a threaded fastening point. The connector is fitted into the matching tube section and the M6 thread is used with a compatible fixing. For other joint layouts, our plastic tube connectors include additional shapes and connection arrangements.
Common Applications
- Workshop Fabrication: Adding a threaded connection point when assembling round metal tube structures without a welded joint.
- Display Stands: Fitting transverse round tubes to frames used for presentation stands and temporary installations.
- Protective Frameworks: Connecting round tubing in non-load-rated equipment guards and enclosure structures.
- Retail Displays: Building removable junctions for round-tube exhibition stands and shop display frameworks.

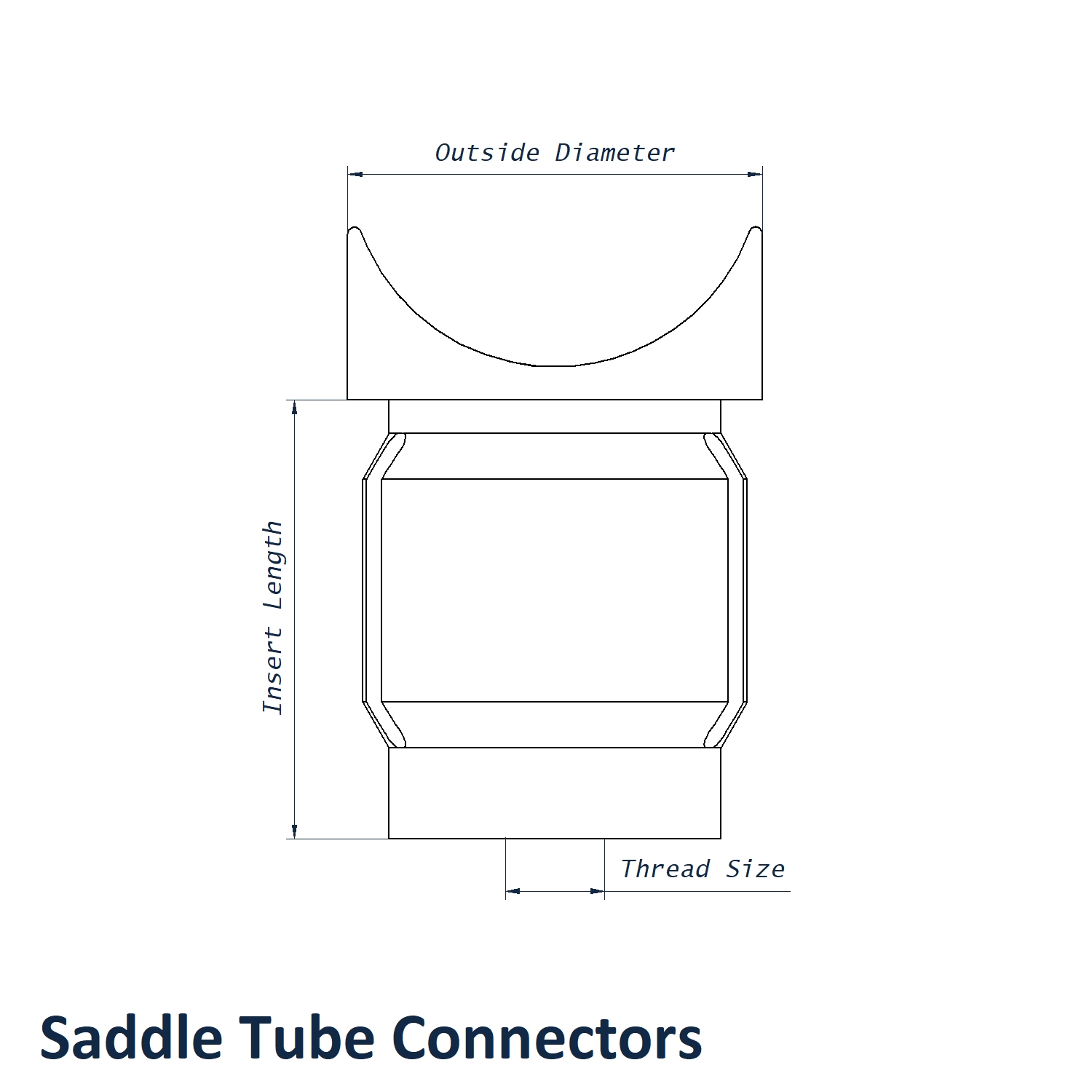

28mm M6 Saddle Tube Connector Dimensions
- Outside Diameter: 28mm
- Wall Thickness: 1.5mm
- Internal Length: 20mm
- Thread Size: M6
- Material: Nylon
- Style: Expanding
Key Benefits
- The 20mm internal length allows fitting depth to be checked during assembly.
- The specified expanding style helps identify the intended fitting arrangement.
- The connector supports T-joint assembly where the matching tube dimensions are known.
- A 1.5mm wall-thickness specification helps avoid mismatches between the insert and tube.
Explore our saddle connectors for round tubing to compare outside diameters and compatible wall thicknesses. If you need help selecting the correct connector, call us on 01233 713581.
| Code | Thread Size | Style | Material | Outside Diameter | Wall Thickness | Internal Length | Stock | |
|---|---|---|---|---|---|---|---|---|
| TC092 | M6 | Expanding | Nylon | 27mm | 2.5mm | 20mm |
Checking...
|
|
| TC091 | M6 | Expanding | Nylon | 27mm | 2.0mm | 20mm |
Checking...
|
|
| TC093 | M6 | Expanding | Nylon | 28mm | 1.0mm | 20mm |
Checking...
|
|
| TC096 | M6 | Expanding | Nylon | 28mm | 2.5mm | 20mm |
Checking...
|
|
| TC095 | M6 | Expanding | Nylon | 28mm | 2.0mm | 20mm |
Checking...
|
|
| TC097 | M6 | Expanding | Nylon | 30mm | 1.0mm | 20mm |
Checking...
|
|
