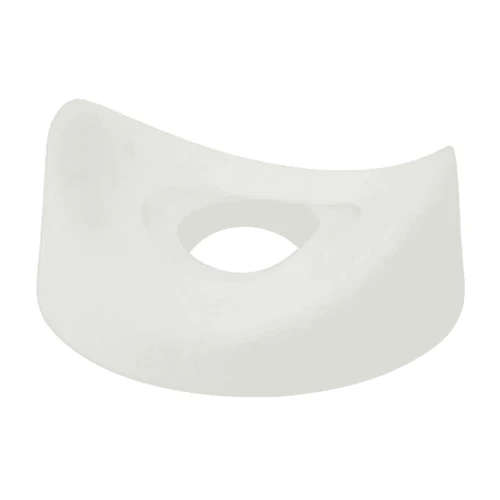

13mm Saddle Washer (4.2mm ID) For 12-14mm Tubes | Natural Nylon
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 999 | £0.22 | £0.26 |
| 1000 - 1999 | £0.18 | £0.22 |
| 2000 - 4999 | £0.15 | £0.18 |
| 5000 + | £0.12 | £0.15 |
£0.26 / each
.png)
Product Specification
| Tube Diameter | 12-14mm |
| Internal Diameter | 4.2mm |
| Outside Diameter | 13mm |
| Colour | Natural |
| Material | Nylon |
| Tube Offset | 2.2mm |
| Height | 5.5mm |
Frequently Bought Together
Total Price: £0.00
12-14mm Saddle Washer (4.2mm ID) For 12-14mm Tubes | Natural Nylon
Designed for securing pipes, tubes and cables against flat mounting surfaces, this medium tube saddle washer is produced for use with 12-14mm diameter tubes and features a 4.2mm internal diameter for compatible fixing points. The curved seating profile allows improved contact around cylindrical sections during fastening.
Manufactured from nylon in a natural finish, this saddle washer is suited to fabrication, pipe mounting and tube support installations where a formed washer profile is required. The curved saddle profile helps improve load distribution across round surfaces while helping maintain stable positioning around curved surfaces.
Common Applications
- Pipe and conduit mounting installations
- Tube fastening and support assemblies
- Fabrication and engineering projects
- Mechanical fastening applications

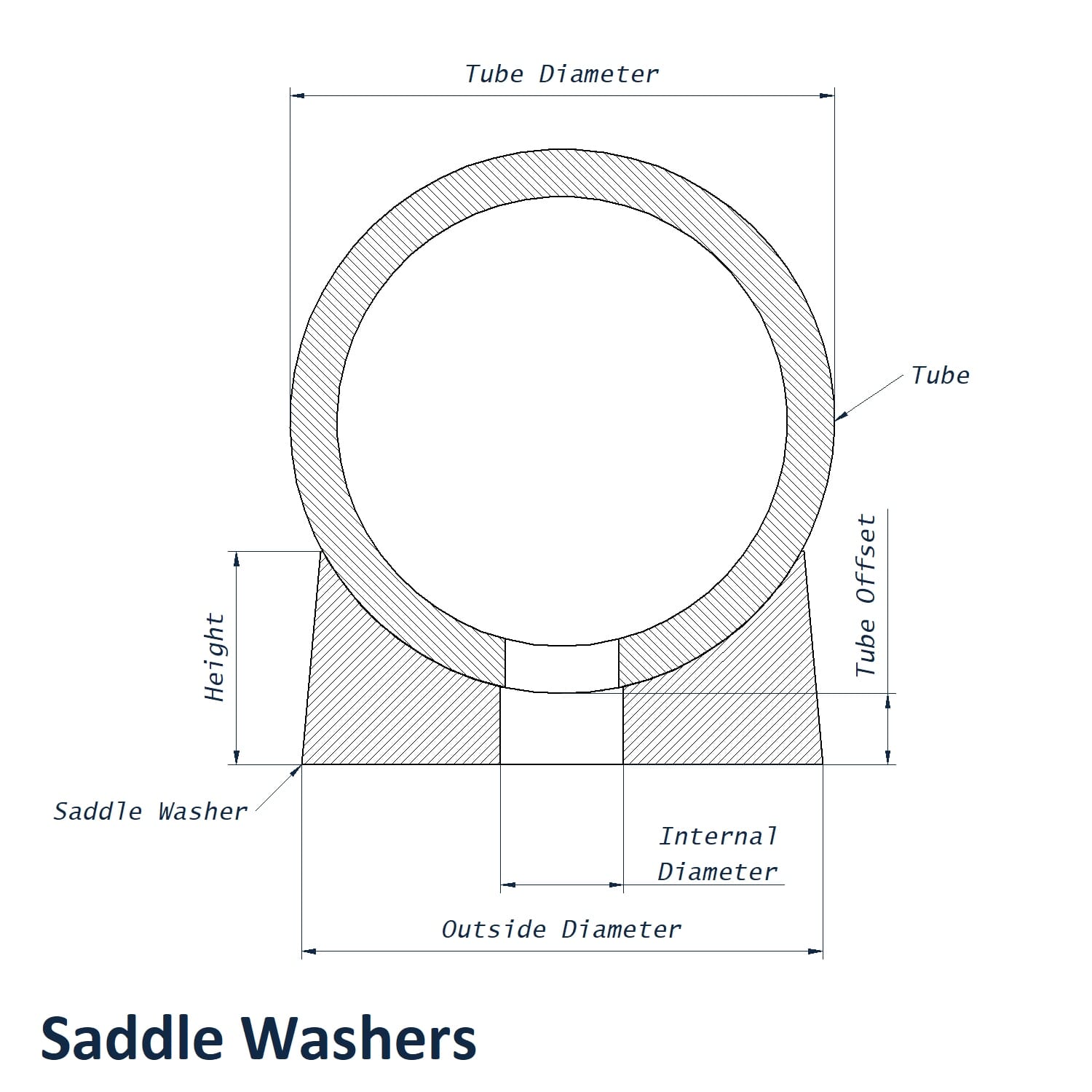

12-14mm Saddle Washer Dimensions
- Tube Diameter: 12-14mm
- Internal Diameter: 4.2mm
- Outside Diameter: 13mm
- Thickness: 5.5mm
- Tube Offset: 2.2mm
- Material: Nylon
- Colour: Natural
View our full Saddle Washer range or browse our Washer collection.
