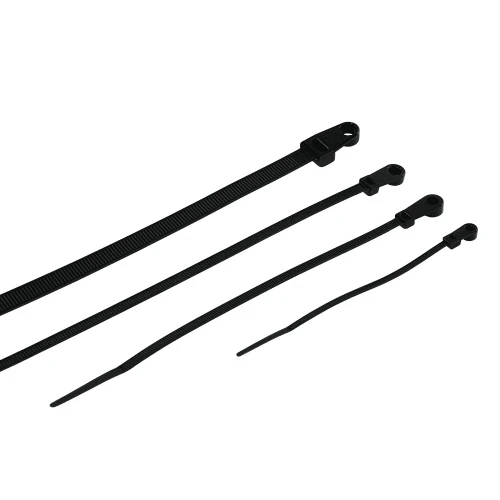

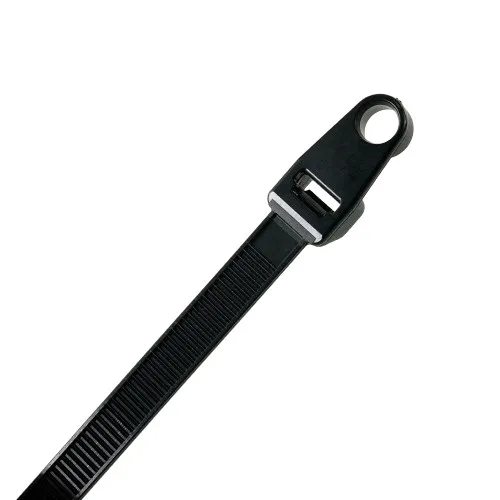

Screw Mounted Cable Ties (Pack of 100) - CTSM4.8-370B

M5 Screw Mounted Black Cable Ties, 4.8mm x 370mm | Vital Parts - CTSM4.8-370B

Screw Mounted Cable Ties allows the user to position and fix cables directly to walls and surfaces (especially helpful for vertical surfaces). This can be particularly useful in a range of different industries and applications. Whereas the primary function of standard cable ties is to help with general cable management, screw mounted cable ties provide additional functionality on vertical surfaces meaning that cables can be positioned neatly at any point on a wall - either horizontally or vertically. These cable ties are Supplied in two colours - black and natural, these ties are halogen free, RoHS and REACH compliant and made from flame-rated Nylon 66 (UL 94V-2).

What are Screw Mounted Cable Ties?

Screw Mounted Cable Ties are nylon fasteners designed with a mounting hole that enables the tie to be fixed directly to a surface using a screw. This allows for cable management not only along horizontal pathways, but also vertically, which is particularly useful in tight spaces or complex installations. Once fixed, the cable tie functions in the same way as a standard tie - with a self-locking head that secures cables, pipes or wires firmly in place.

Key Features:

• Mounting hole allows for screw-fix installation on walls or panels
• Enables vertical and horizontal cable routing with added stability
• Made from UL approved Nylon 66, flame class UL94V-2
• Operating temperature range: -40°C to +85°C
• RoHS and REACH compliant, halogen free
• Available in widths from 2.5mm to 7.6mm and lengths from 110mm to 380mm
• Available in black and natural colour options

Key Applications and Industries

• Electrical installations where wall-mounted cable guidance is required
• Telecoms and data infrastructure for secure cable placement
• Workshops, factories and commercial facilities for routing pipes or wires
• Construction environments for keeping cables tidy and safe along walls
• General industrial cable management where precision positioning is needed

How to Use Screw Mounted Cable Ties

• Mark positions along the wall or surface where the ties should be fixed
• Drill holes at regular intervals to match the mounting hole on the tie
• Secure each tie to the surface using a screw
• Place cables along the route and loop the tie around them
• Guide the tail through the head of the tie and pull tight to lock

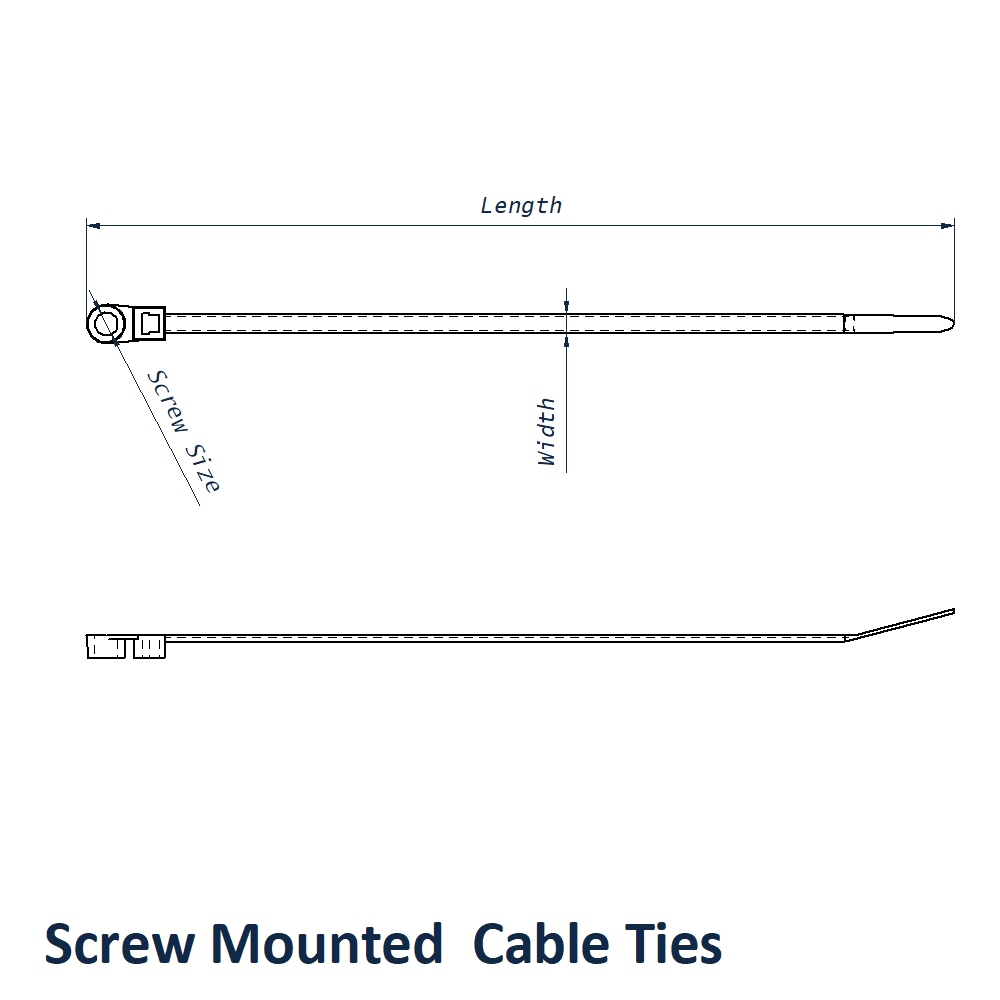

Technical Specifications

• Width: 4.8mm
• Length: 370mm
• Screw Size: M5
• Colour: Black
• Max Bundle: 102mm
• Minimum Tensile Strength: 22kg

Benefits:

• Provides reliable support for vertical or wall-mounted cable runs
• Improves safety and aesthetics of cable routing in visible areas
• Quick and easy installation using standard tools
• Durable and flame-resistant for use in demanding settings
