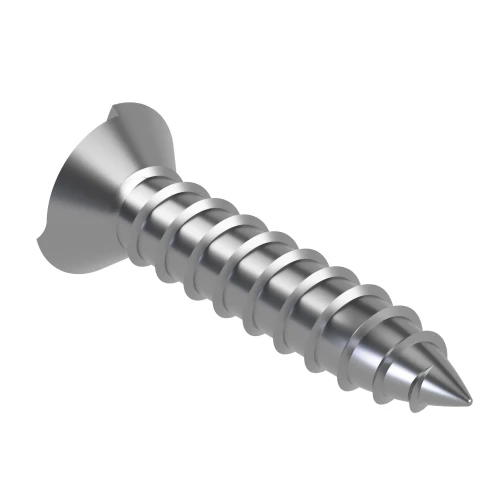

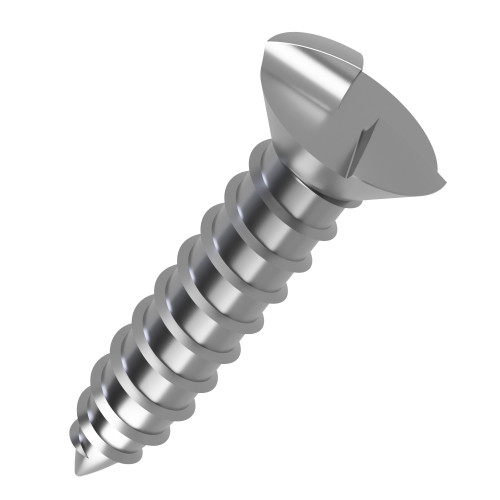

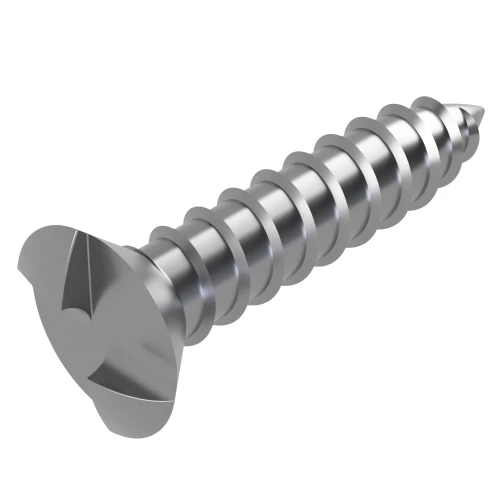

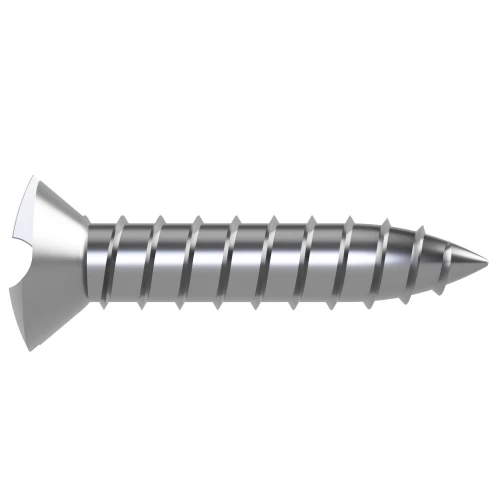

3.5mm x 19mm Clutch Countersunk AB Self Tapping Screw | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £1.07 | £1.28 |
| 100 - 499 | £1.04 | £1.25 |
| 500 - 999 | £0.82 | £0.99 |
| 1000 + | £0.53 | £0.64 |
Product Specification
| Thread Size | 3.5mm |
| Length | 19.0mm |
| Head Diameter | 6.8mm |
| Head Height | 3.20mm |
| End Type | AB |
| Drive Type | Clutch |
| Drive | Security Flat Head |
| Standard | N/A |
| Material | A2 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
3.5mm x 19mm Clutch Countersunk AB Self Tapping Screw | A2 Stainless Steel
Made to support repeatable assembly, this 3.5mm x 19mm equipment cover screw is used for fixing protective metal guards across production line settings.
The head profile keeps the fixing low once installed, helping with corrosion resistance on covers, trims and enclosure parts. A2 stainless steel supports corrosion resistance and consistent performance in production line work where corrosion resistance is required.
Common Applications
- Mounting steel panel inserts
- Securing agricultural guards
- Fastening support plates
- Repairing fabricated housings

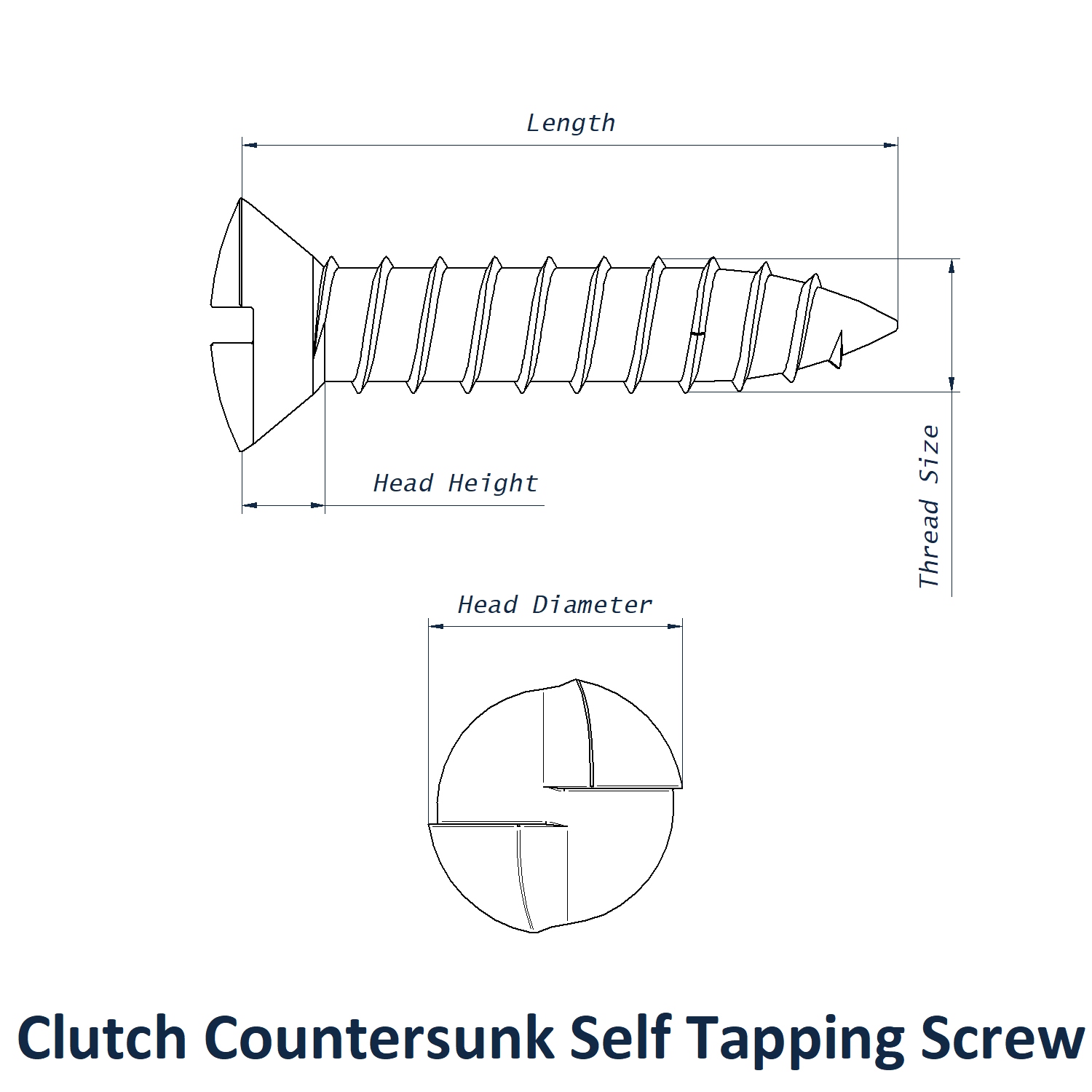

3.5mm x 19mm Clutch Countersunk Screw Dimensions
- Thread Size: 3.5mm
- Length: 19mm
- Head Diameter: 6.8mm
- Head Height: 3.20mm
- End Type: AB
- Drive: Security Flat Head
- Drive Type: Clutch
- Material: A2 Stainless Steel
Range Guidance
Select the correct thread size, length, drive and material for the panel thickness and environment before ordering. Pilot hole suitability should be checked against the material being fixed.
View our full Countersunk Self Tapping Screws Range. Explore more Self Tapping Screws for related fastening options.
