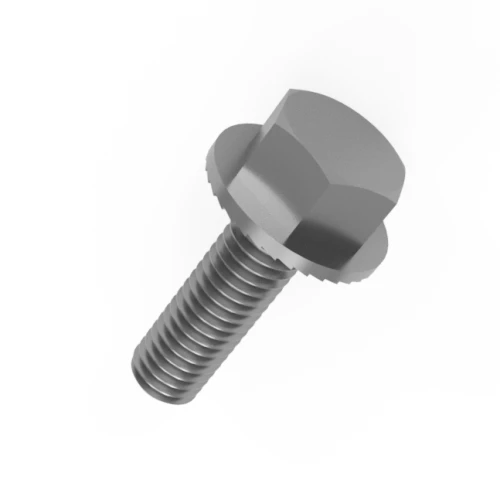

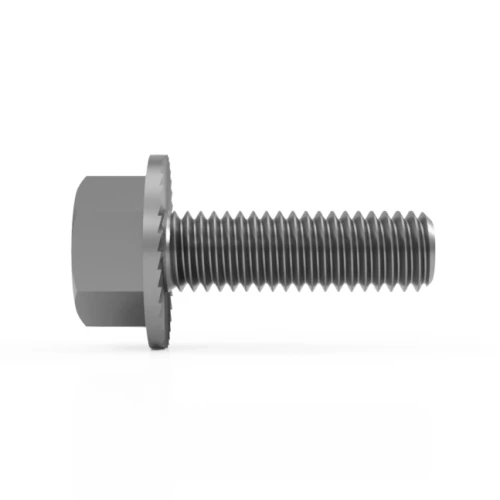

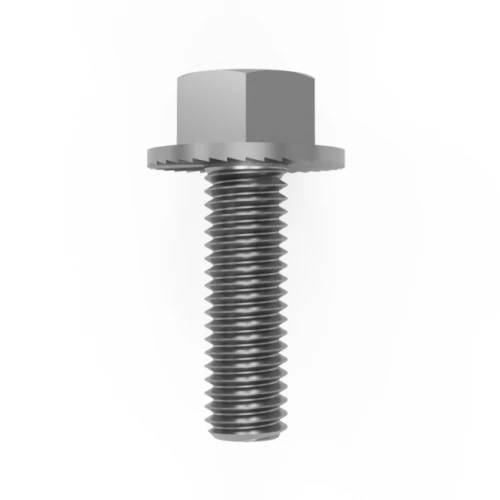

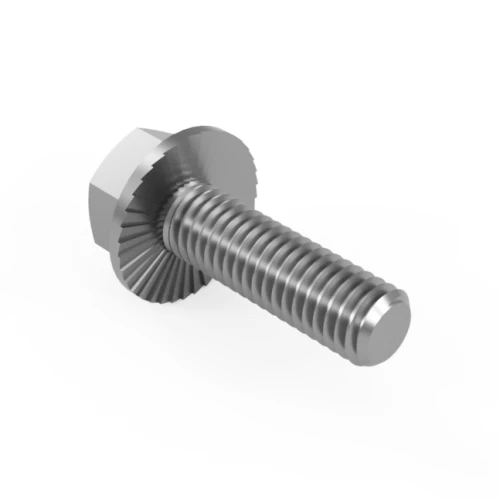

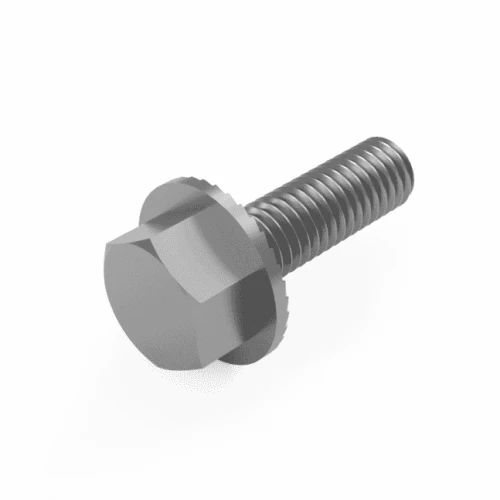

M10 x 100mm Hex Serrated Flange Bolt (DIN 6921) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £4.85 | £5.82 |
| 10 - 24 | £3.88 | £4.66 |
| 25 - 49 | £2.91 | £3.49 |
| 50 - 99 | £2.42 | £2.91 |
| 100 - 499 | £2.18 | £2.62 |
| 500 - 999 | £1.94 | £2.33 |
| 1000 + | £1.46 | £1.75 |
Product Specification
| Thread Size | M10 |
| Thread Length | 100mm |
| Pitch | 1.50mm |
| Flange Diameter | 22.3mm |
| Head Height | 9.2mm |
| Across Flats | 15.00mm |
| Standard | DIN 6921 |
| Head Style | Serrated Flanged Hex Head |
| Material | A2-70 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
M10 x 100mm Serrated Flange Hex Head Bolt DIN 6921 | A2-70 Stainless Steel
The M10 x 100mm serrated flange hex head bolt is built for machine frame assemblies where a single fixing must clamp firmly without a separate loose flange washer. The extended 100mm length helps reach through deeper assemblies, layered brackets and heavy duty mounting points.
The 1.50mm pitch supports predictable thread engagement while the 22.3mm flange diameter increases the bearing area beneath the head. A2 stainless steel provides a clean corrosion resistant finish for general engineering, access equipment and indoor or sheltered outdoor assemblies.
Common Applications
Common places this fixing is specified include:
- Machine guards and access panels
- Fabricated steel brackets
- Workshop repairs
- Production equipment frames

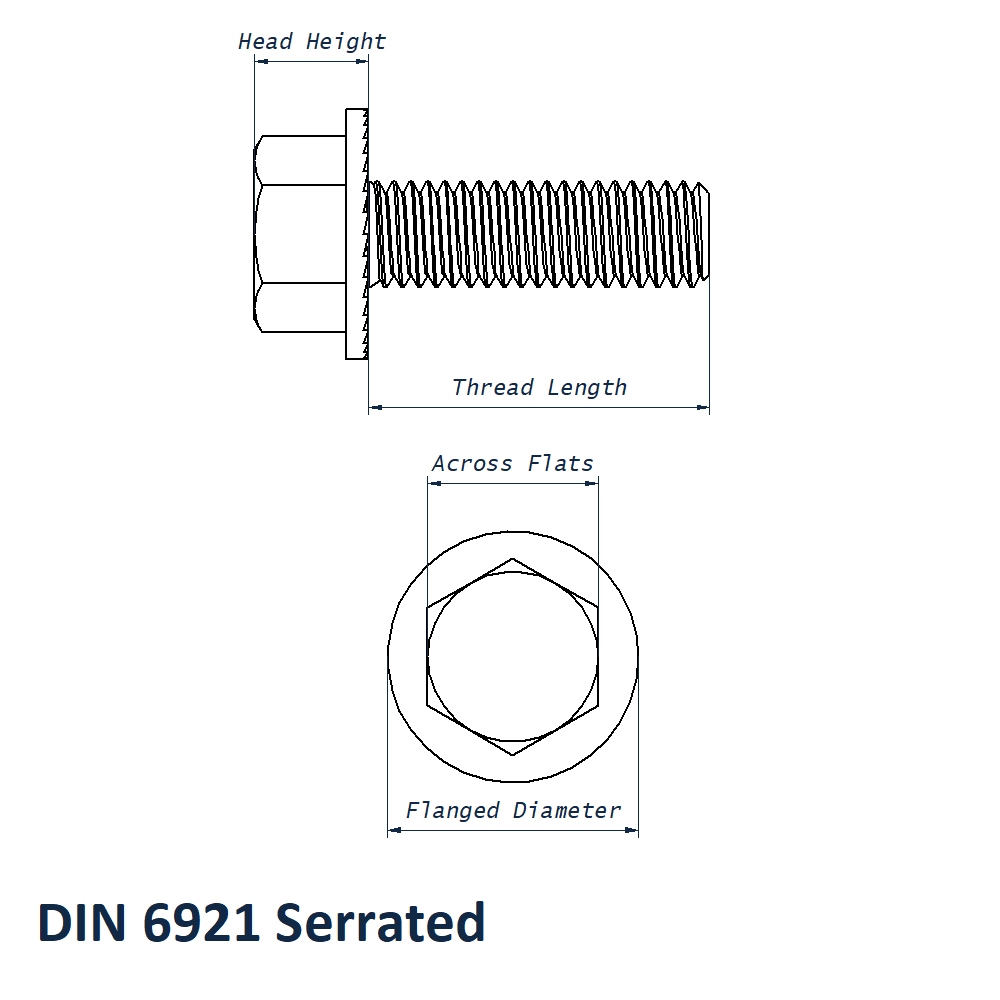

M10 x 100mm Serrated Flange Hex Head Bolt Dimensions
- Thread Size: M10
- Thread Length: 100mm
- Pitch: 1.50mm
- Flange Diameter: 22.3mm
- Head Height: 9.2mm
- Across Flats: 15.00mm
- Material: A2-70 Stainless Steel
- Standard: DIN 6921
- Head Style: Serrated Flanged Hex Head
Related Products
View our full range of Serrated Flange Hex Head Bolts DIN 6921 for more thread sizes and lengths.
These fixings are often paired with Washers and Nuts where the assembly design calls for extra spacing, protection or through-bolting.
You can also compare other options in our Bolts and Screws range.
Need help choosing the right serrated flange bolt for your application? Call 01233 713581 for technical support or bulk order advice.
