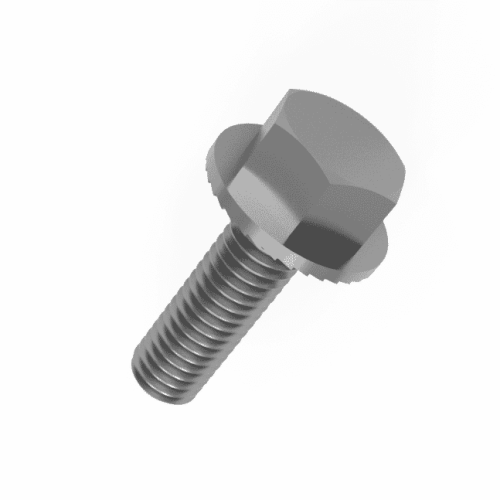

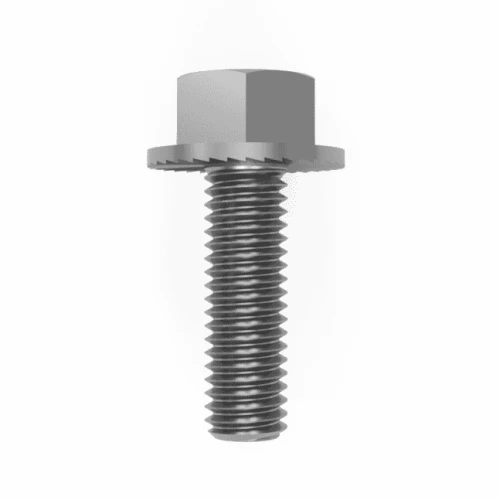

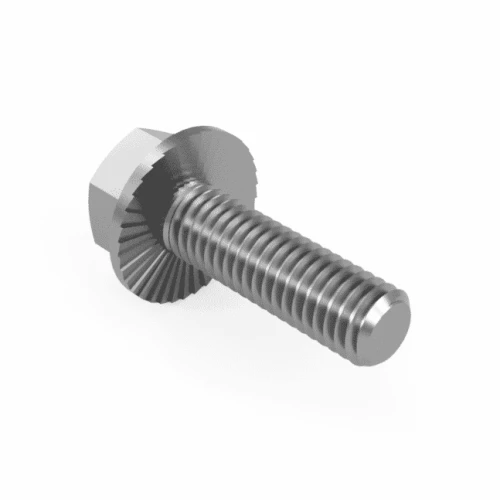

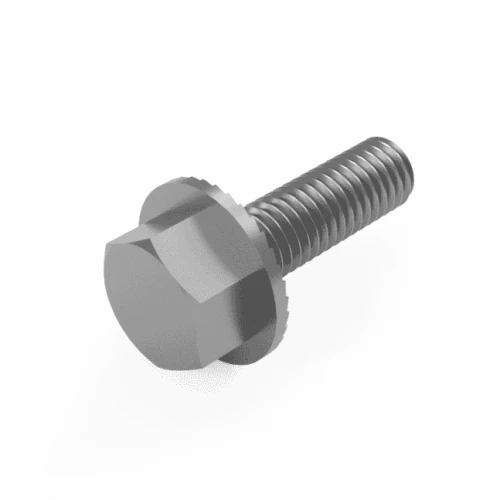

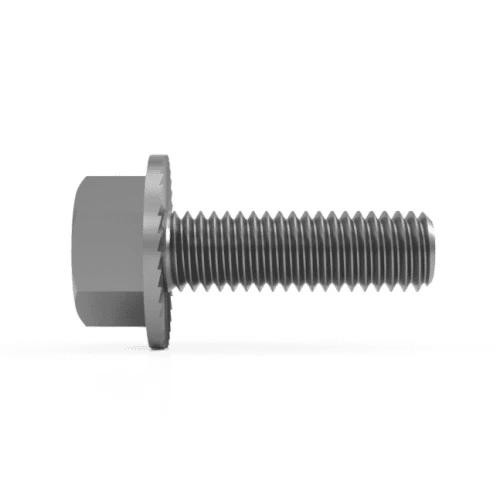

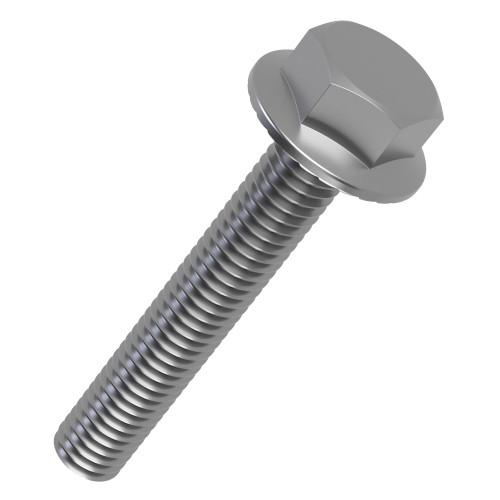

M5 x 16mm Hex Serrated Flange Bolt (DIN 6921) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £0.40 | £0.48 |
| 10 - 24 | £0.32 | £0.38 |
| 25 - 49 | £0.24 | £0.29 |
| 50 - 99 | £0.20 | £0.24 |
| 100 - 499 | £0.17 | £0.21 |
| 500 - 999 | £0.16 | £0.19 |
| 1000 + | £0.12 | £0.14 |
Product Specification
| Thread Size | M5 |
| Thread Length | 16mm |
| Pitch | 0.80mm |
| Flange Diameter | 11.8mm |
| Head Height | 5.4mm |
| Across Flats | 8.00mm |
| Standard | DIN 6921 |
| Head Style | Serrated Flanged Hex Head |
| Material | A2-70 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
M5 x 16mm Serrated Flange Hex Head Bolt DIN 6921 | A2-70 Stainless Steel
For builders of OEM production assemblies, the M5 x 16mm serrated flange bolt combines practical hex tooling with improved resistance to loosening. Its short 16mm length is useful where compact brackets, thin plates or shallow tapped sections need a secure flange fixing.
The design gives installers a positive hex drive and a serrated bearing face, making it a dependable choice for assemblies that must stay tight. A2 stainless steel provides a clean corrosion resistant finish for general engineering, access equipment and indoor or sheltered outdoor assemblies.
Common Applications
Typical UK trade uses include:
- OEM equipment builds
- Batch assembly work
- Production jigs
- Repeat manufacturing

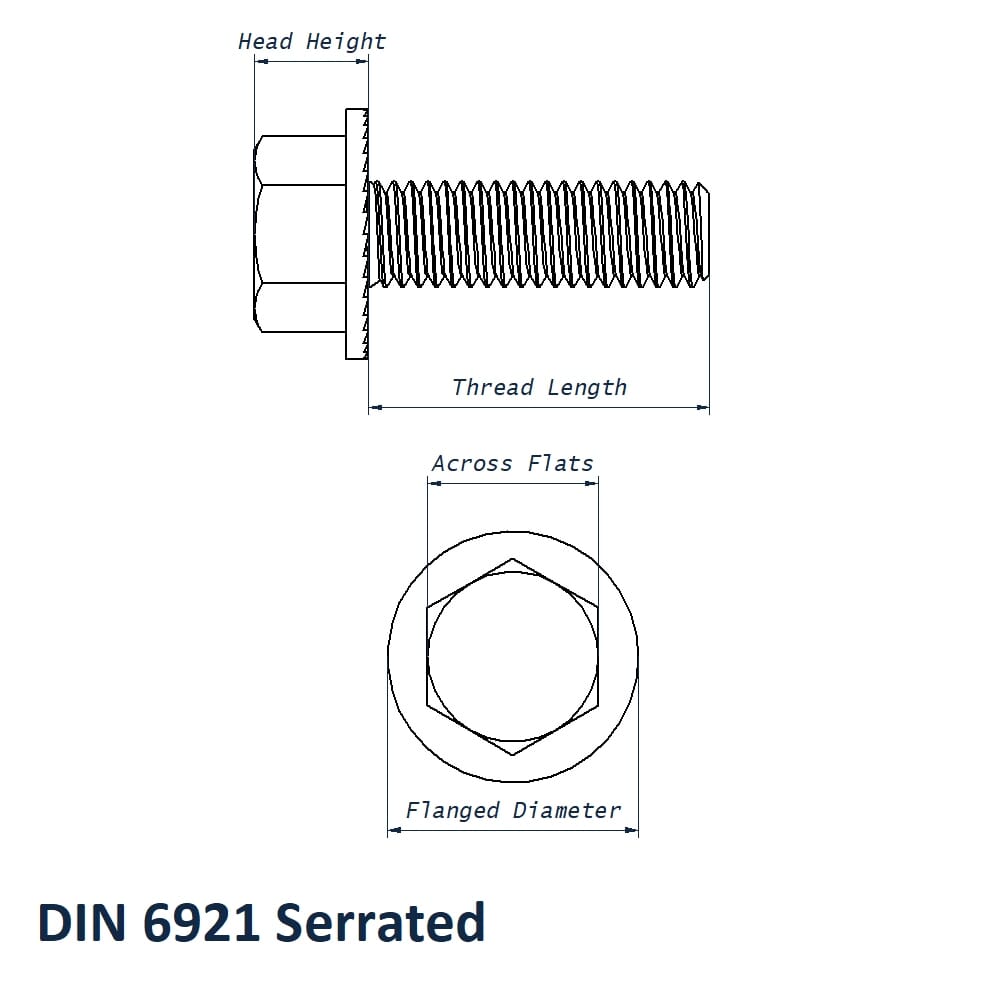

M5 x 16mm Serrated Flange Hex Head Bolt Dimensions
- Thread Size: M5
- Thread Length: 16mm
- Pitch: 0.80mm
- Flange Diameter: 11.8mm
- Head Height: 5.4mm
- Across Flats: 8.00mm
- Material: A2-70 Stainless Steel
- Standard: DIN 6921
- Head Style: Serrated Flanged Hex Head
Related Products
See more sizes in our Serrated Flange Hex Head Bolts DIN 6921 range.
For through-fixing work, many customers order these alongside Washers and Nuts to complete the joint.
You can also compare other options in our Bolts and Screws range.
Need help choosing the right serrated flange bolt for your application? Call 01233 713581 for technical support or bulk order advice.
