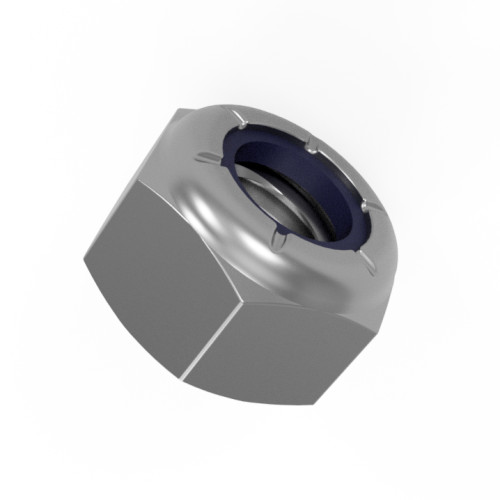

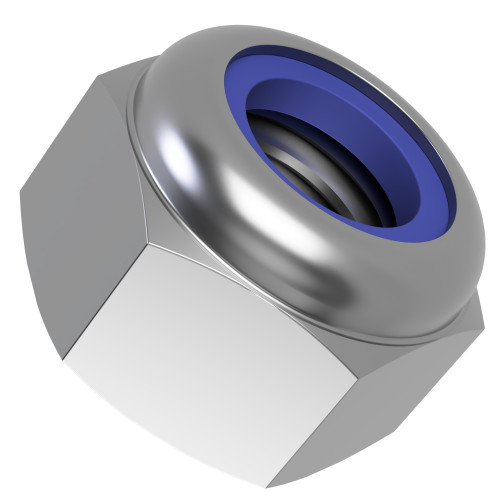

M5 Nyloc Nut (DIN 985) | A2-70 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.03 | £0.04 |
| 100 - 999 | £0.03 | £0.03 |
| 1000 - 9999 | £0.02 | £0.02 |
| 10000 + | £0.01 | £0.01 |
£0.04 / each
.png)
Product Specification
| Thread Size | M5 |
| Thread Pitch | 0.80mm |
| Material | A2-70 Stainless Steel |
| Across Flats | 8mm |
| Height | 5mm |
| Standard | DIN 985 |
Frequently Bought Together
Total Price: £0.00
M5 Thin Nyloc Hex Nut | 0.80mm Pitch | DIN 985 | A2-70 Stainless Steel
Providing a compact locking solution for general bolted joints where resistance to loosening is required, this M5 nyloc nut combines a DIN 985 hex profile with a nylon insert. The 0.80mm thread pitch matches compatible metric bolts and the 5mm body height helps reduce overall assembly height. The A2 stainless steel construction provides good corrosion resistance for general engineering, machinery and suitably exposed fastening applications.
What Are DIN 985 Nyloc Nuts?
Thin Nyloc Hex Nuts provide a lower-height locking option than taller nylon insert nuts. Their DIN 985 format combines a conventional metal hex body with a nylon locking ring which helps maintain the joint without relying on a separate lock washer.
Other compact locking sizes are available in our nyloc nuts range, while tall nyloc nuts are available where a higher nut profile is preferred.
Common Applications
- Pumps and Motors: Helps maintain bolted joints on suitable equipment exposed to vibration and repeated operation.
- Furniture and Frames: Provides a compact locking nut for metal frames, brackets and adjustable furniture components.
- Transport Equipment: Supports secure fastening on suitable panels, brackets and serviceable mechanical assemblies.
- Workshop Repairs: Provides a straightforward replacement locknut for compatible metric bolted joints.

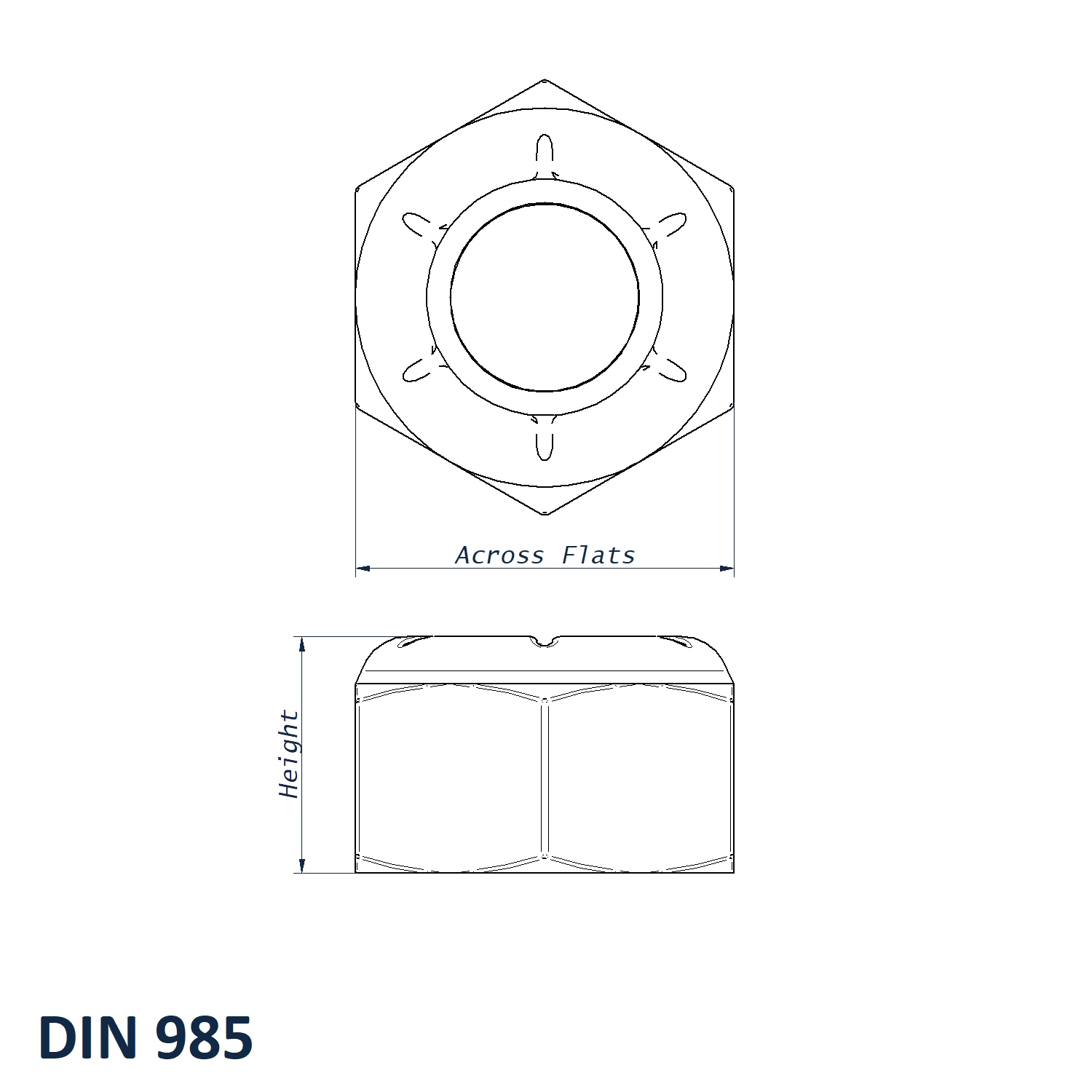

M5 DIN 985 Thin Nyloc Hex Nut Dimensions
- Thread Size: M5
- Thread Pitch: 0.80mm
- Across Flats: 8mm
- Height: 5mm
- Material: A2-70 Stainless Steel
- Standard: DIN 985
Key Benefits
- Nylon insert creates prevailing friction on the mating thread to help resist loosening.
- Metal nut body carries the clamping load while the nylon insert provides the locking action.
- 0.80mm thread pitch matches compatible metric bolts and threaded components.
- 5mm height provides the compact DIN 985 nut profile.
For help selecting the correct locking nut for your bolted joint, speak with our team on 01233 713581.
