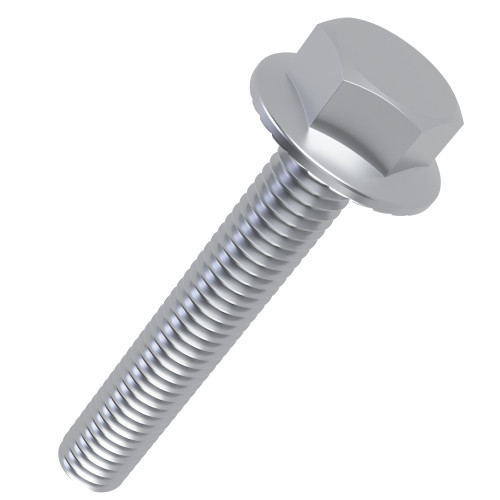

M6 x 35mm Hex Flange Bolt - Serrated (DIN 6921) - 8.8 Steel BZP
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.13 | £0.16 |
| 100 - 999 | £0.09 | £0.11 |
| 1000 - 4999 | £0.07 | £0.09 |
| 5000 + | £0.07 | £0.08 |
Product Specification
| Thread Size | M6 |
| Thread Length | 35mm |
| Pitch | 1.00mm |
| Flange Diameter | 14.2mm |
| Head Height | 6.6mm |
| Across Flats | 10.00mm |
| Standard | DIN 6921 |
| Head Style | Serrated Flanged Hex Head |
| Material | 8.8 Steel BZP |
Frequently Bought Together
Total Price: £0.00
M6 x 35mm Serrated Flange Hex Head Bolt DIN 6921 | 8.8 Steel BZP
The M6 x 35mm flanged hex head bolt is intended for construction plant covers where a low part count fastening method can support quicker assembly. The 35mm length gives a versatile fixing depth for common brackets, guards and fabricated assemblies.
The integrated flange can reduce fitting time in production because the bearing surface is already part of the fastener. 8.8 steel with a BZP finish gives a strong zinc plated option for machinery, fabricated frames and dry industrial environments.
Common Applications
Frequent use cases include:
- Plant machinery covers
- Temporary works brackets
- Equipment guards
- Site maintenance

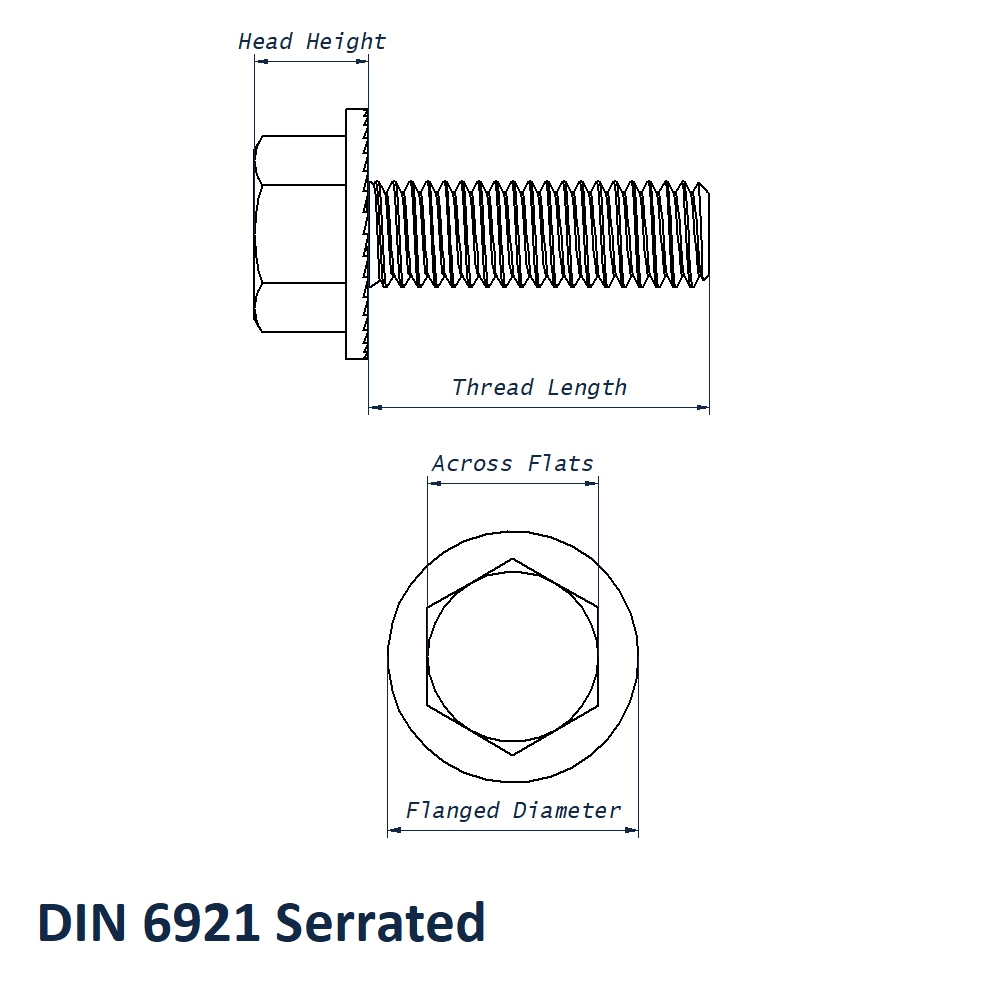

M6 x 35mm Serrated Flange Hex Head Bolt Dimensions
- Thread Size: M6
- Thread Length: 35mm
- Pitch: 1.00mm
- Across Flats: 10.00mm
- Head Height: 6.6mm
- Flange Diameter: 14.2mm
- Standard: DIN 6921
- Head Style: Serrated Flanged Hex Head
- Material: 8.8 Steel BZP
Related Products
See more sizes in our Serrated Flange Hex Head Bolts DIN 6921 range.
For through-fixing work, many customers order these alongside Washers and Nuts to complete the joint.
You can also compare other options in our Bolts and Screws range.
Need help choosing the right serrated flange bolt for your application? Call 01233 713581 for technical support or bulk order advice.
