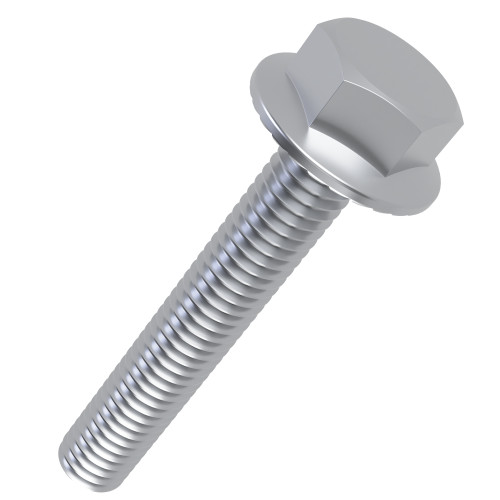

M6 x 40mm Hex Flange Bolt - Serrated (DIN 6921) - 8.8 Steel BZP
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.16 | £0.19 |
| 100 - 999 | £0.12 | £0.14 |
| 1000 - 4999 | £0.09 | £0.11 |
| 5000 + | £0.08 | £0.10 |
Product Specification
| Thread Size | M6 |
| Thread Length | 40mm |
| Pitch | 1.00mm |
| Flange Diameter | 14.2mm |
| Head Height | 6.6mm |
| Across Flats | 10.00mm |
| Standard | DIN 6921 |
| Head Style | Serrated Flanged Hex Head |
| Material | 8.8 Steel BZP |
Frequently Bought Together
Total Price: £0.00
M6 x 40mm Serrated Flange Hex Head Bolt DIN 6921 | 8.8 Steel BZP
This M6 x 40mm serrated DIN 6921 bolt is useful in furniture and racking frames where vibration, panel movement or repeated servicing can loosen standard fixings. With a 40mm length, it suits thicker brackets, spacers and deeper mounting points used in equipment builds.
The head profile gives enough driving area for reliable tightening while retaining the compact form expected from DIN 6921 fasteners. 8.8 steel with a BZP finish gives a strong zinc plated option for machinery, fabricated frames and dry industrial environments.
Common Applications
Typical engineering applications include:
- Metal racking
- Work benches
- Cabinet frames
- Storage equipment

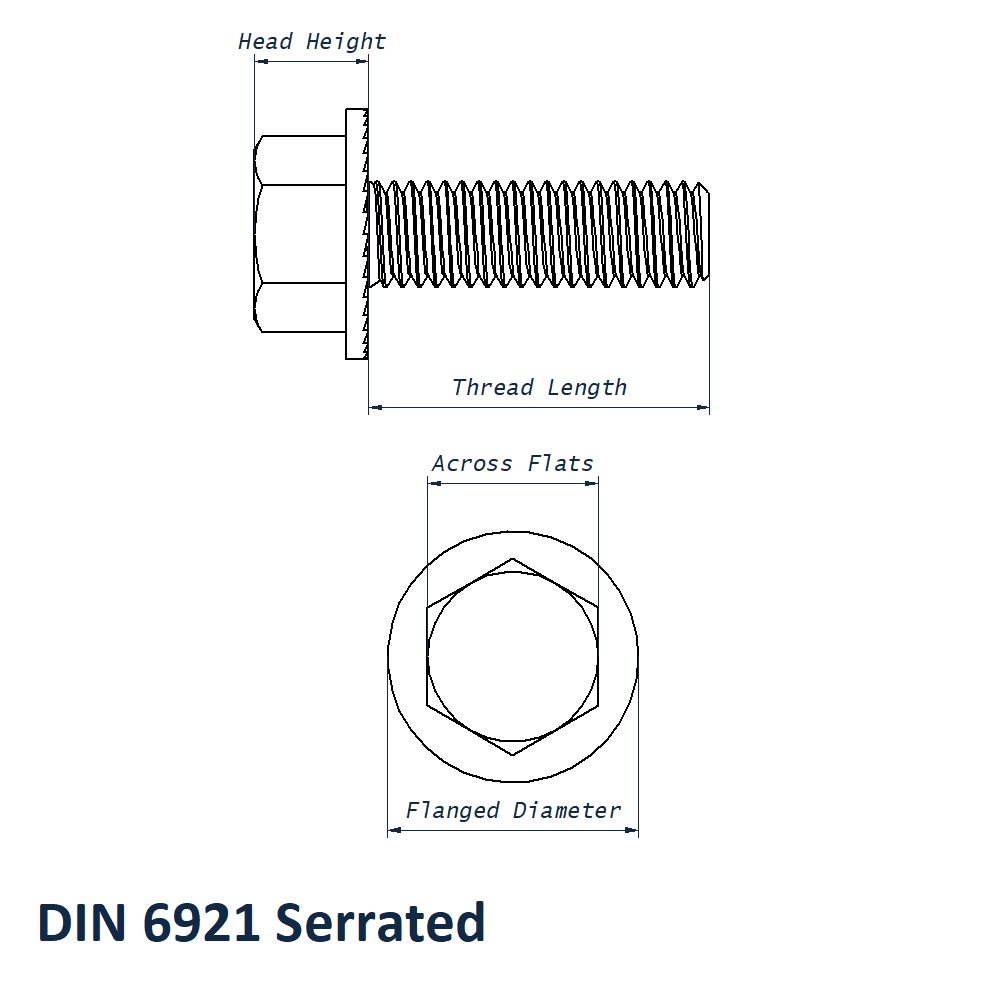

M6 x 40mm Serrated Flange Hex Head Bolt Dimensions
- Thread Size: M6
- Thread Length: 40mm
- Pitch: 1.00mm
- Across Flats: 10.00mm
- Head Height: 6.6mm
- Flange Diameter: 14.2mm
- Standard: DIN 6921
- Head Style: Serrated Flanged Hex Head
- Material: 8.8 Steel BZP
Related Products
For matching sizes across the range, visit Serrated Flange Hex Head Bolts DIN 6921.
If the joint needs a mating thread, load spreader or removable fixing method, pair this bolt with suitable Washers and Nuts.
You can also compare other options in our Bolts and Screws range.
Need help choosing the right serrated flange bolt for your application? Call 01233 713581 for technical support or bulk order advice.
