Silicone Pull Plugs - SPP002
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £0.60 | £0.72 |
| 2 - 10 | £0.60 | £0.72 |
| 11 - 50 | £0.48 | £0.58 |
| 51 - 100 | £0.38 | £0.46 |
| 101 - 500 | £0.32 | £0.38 |
| 501 + | £0.25 | £0.30 |

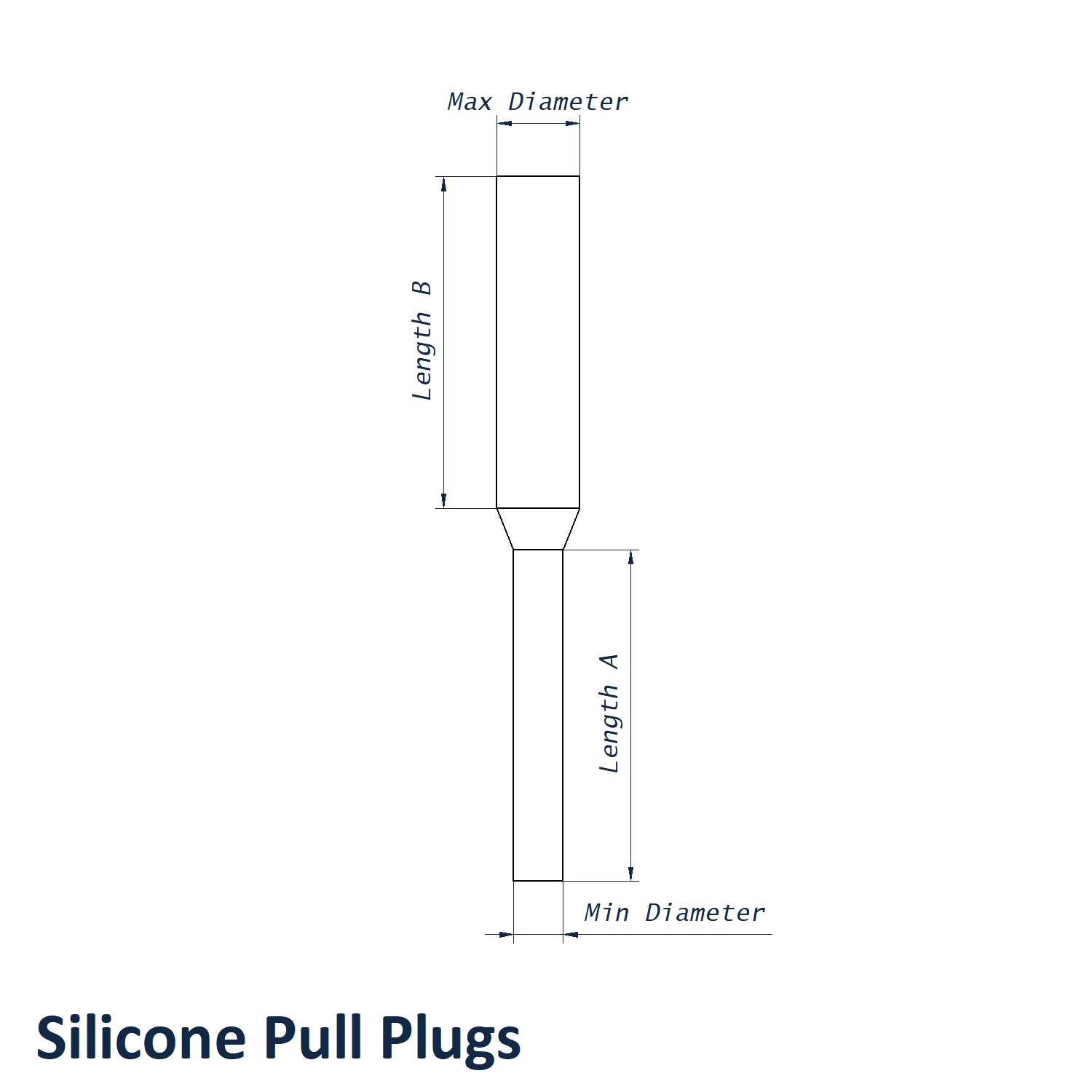

Product Specification
| Min Diameter | 1.2mm |
| Max Diameter | 1.7mm |
| Length A | 15.9mm |
| Length B | 15.5mm |
| Colour | Natural |
Frequently Bought Together
Total Price: £0.00

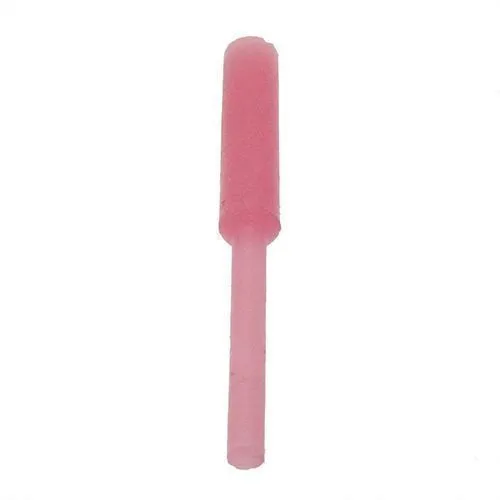

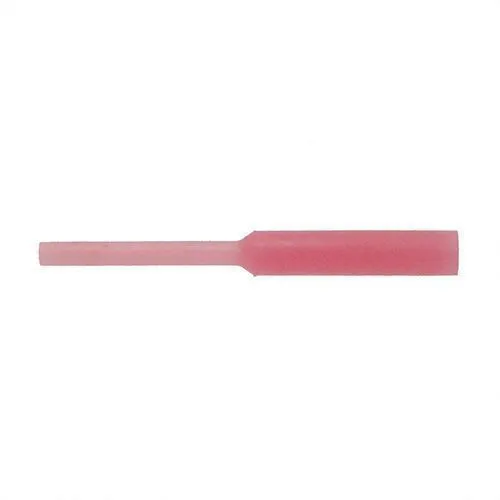

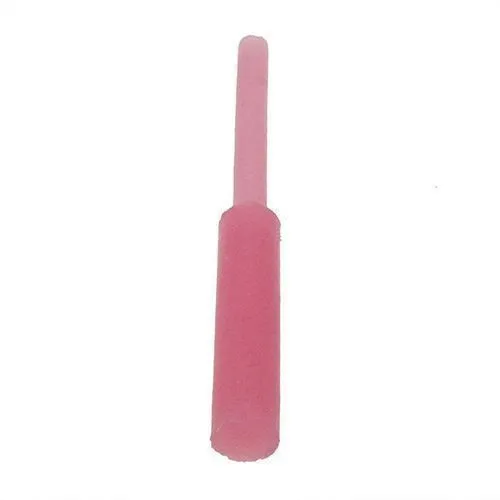

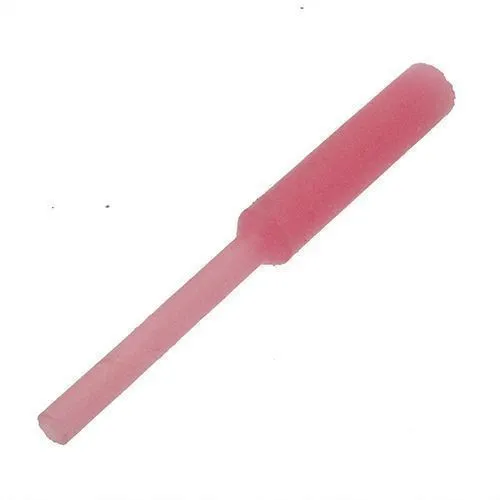

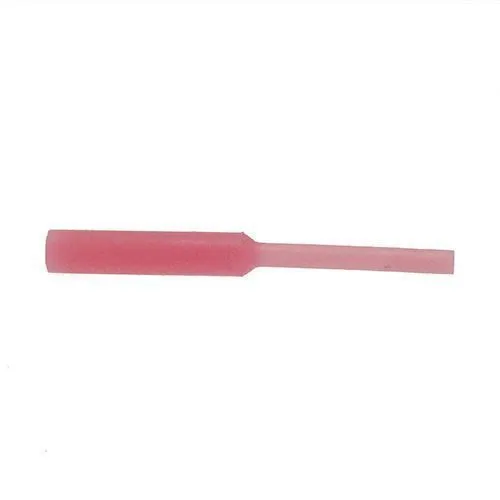

1.2mm to 1.7mm x 15.9mm Silicone Pull Plug | Natural Silicone | Vital Parts - SPP002
This 1.2mm to 1.7mm x 15.9mm reusable silicone masking plug combines a parallel profile with a practical pull tab for efficient through-hole protection. Manufactured from premium-grade natural silicone, it can withstand continuous temperatures up to 315°C.
What Are Silicone Pull Plugs?
A silicone pull plug is a reusable through-hole masking component with a parallel central section and an extended pull tab. It can be used in threaded or non-threaded openings and is particularly useful where access from both sides of the component is available.
Common Applications
- Automotive Manufacturing: Masks holes in brackets, housings and fabricated components during paint and coating work.
- Aerospace Finishing: Supports precise protection of through-holes on parts requiring controlled surface treatment.
- E-Coating: Helps prevent coating build-up inside selected threaded and non-threaded openings.
- Industrial Fabrication: Provides reusable bore protection during multi-stage finishing operations.
Technical Specifications:
- Max Diameter: 1.7mm
- Min Diameter: 1.2mm
- Length A: 15.9mm
- Length B: 15.5mm
- Colour: Natural
- Material: Silicone
- Maximum Operating Temperature: Up to 315°C
- Profile: Parallel pull-through profile with integrated pull tab
- Suitable Hole Types: Threaded and non-threaded through-holes
Related High Temperature Masking Products
If a stepped masking design is more suitable for the application, view our Silicone Step Plugs. Further parallel pull-tab options are available in the full Silicone Pull Plugs collection.
For technical guidance on pull plug sizing, high-temperature masking or volume requirements, speak with our sales team on 01233 713581.
