Silicone Pull Plugs - SPP003
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £0.60 | £0.72 |
| 2 - 10 | £0.60 | £0.72 |
| 11 - 50 | £0.48 | £0.58 |
| 51 - 100 | £0.38 | £0.46 |
| 101 - 500 | £0.32 | £0.38 |
| 501 + | £0.25 | £0.30 |

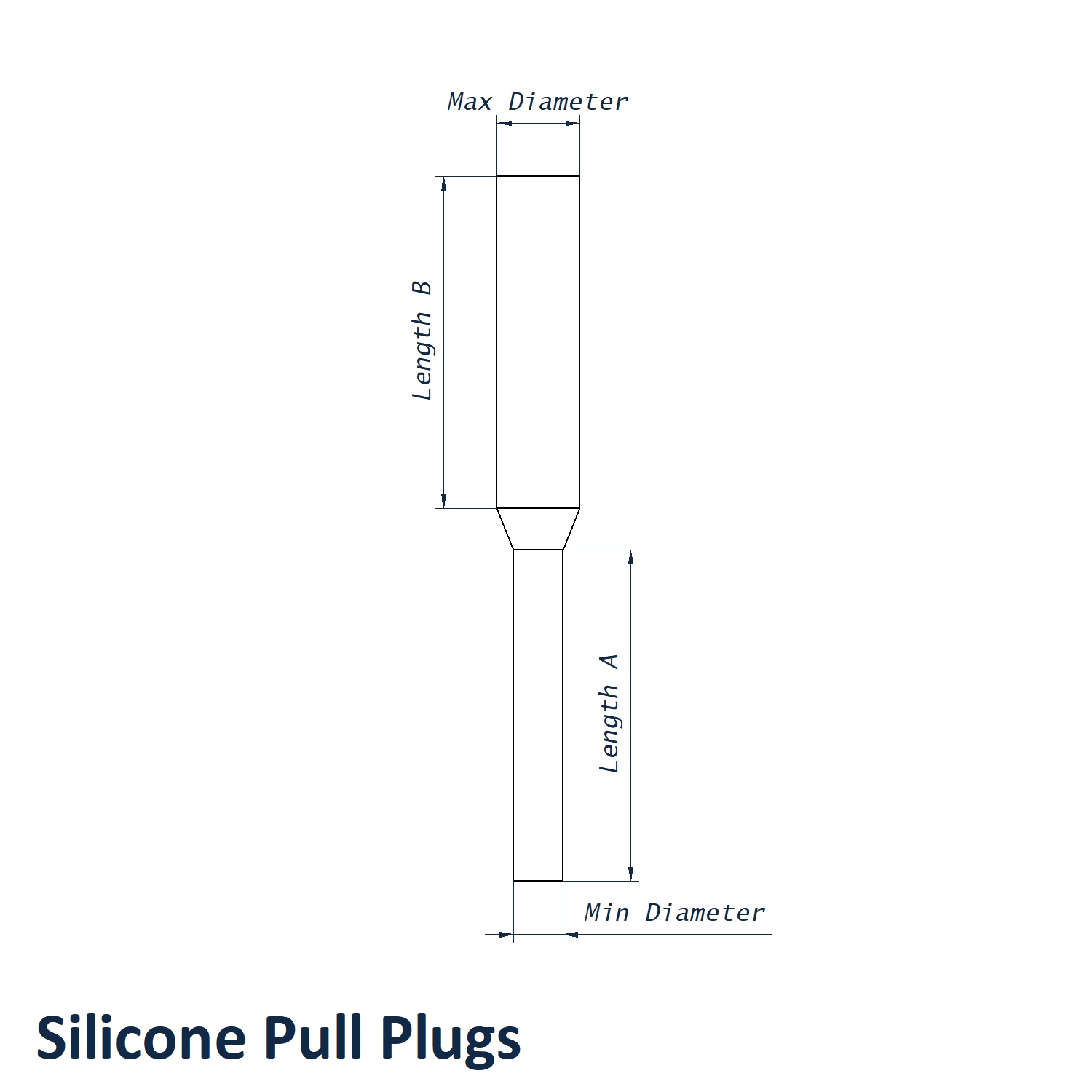

Product Specification
| Min Diameter | 1.2mm |
| Max Diameter | 1.9mm |
| Length A | 15.5mm |
| Length B | 15mm |
| Colour | Natural |
Frequently Bought Together
Total Price: £0.00
1.2mm to 1.9mm x 15.5mm Silicone Pull Plug | Natural Silicone | Vital Parts - SPP003
The 1.2mm to 1.9mm x 15.5mm high temperature pull plug is a dependable choice for keeping selected through-holes free from powder, paint and treatment residue. Its flexible natural silicone construction is reusable and the extended pull tab makes extraction straightforward.
What Are Silicone Pull Plugs?
Parallel silicone pull plugs protect through-holes during high-temperature finishing. Their flexible body compresses against the internal wall of the opening while the integrated tab provides a convenient grip for installation and tool-free extraction.
Common Applications
- Powder Coating Lines: Enables quick masking and removal during repetitive high-volume curing cycles.
- Metal Finishing: Keeps critical holes free from unwanted coating, paint or treatment residue.
- Precision Engineering: Protects measured openings where dimensional cleanliness is important after finishing.
- Maintenance Processing: Temporarily seals pipes, tubes and component openings during cleaning or treatment.
Technical Specifications:
- Max Diameter: 1.9mm
- Min Diameter: 1.2mm
- Length A: 15.5mm
- Length B: 15mm
- Colour: Natural
- Material: Silicone
- Maximum Operating Temperature: Up to 315°C
- Profile: Parallel pull-through profile with integrated pull tab
- Suitable Hole Types: Threaded and non-threaded through-holes
Related High Temperature Masking Products
For blind holes or openings requiring a multi-step body, consider our Silicone Step Plugs. Browse the complete Silicone Pull Plugs range for additional through-hole sizes.
To confirm whether this parallel silicone plug suits your threaded or plain through-hole, contact our technical sales team on 01233 713581.
