Silicone Pull Plugs - SPP005
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £0.60 | £0.72 |
| 2 - 10 | £0.60 | £0.72 |
| 11 - 50 | £0.48 | £0.58 |
| 51 - 100 | £0.38 | £0.46 |
| 101 - 500 | £0.32 | £0.38 |
| 501 + | £0.25 | £0.30 |

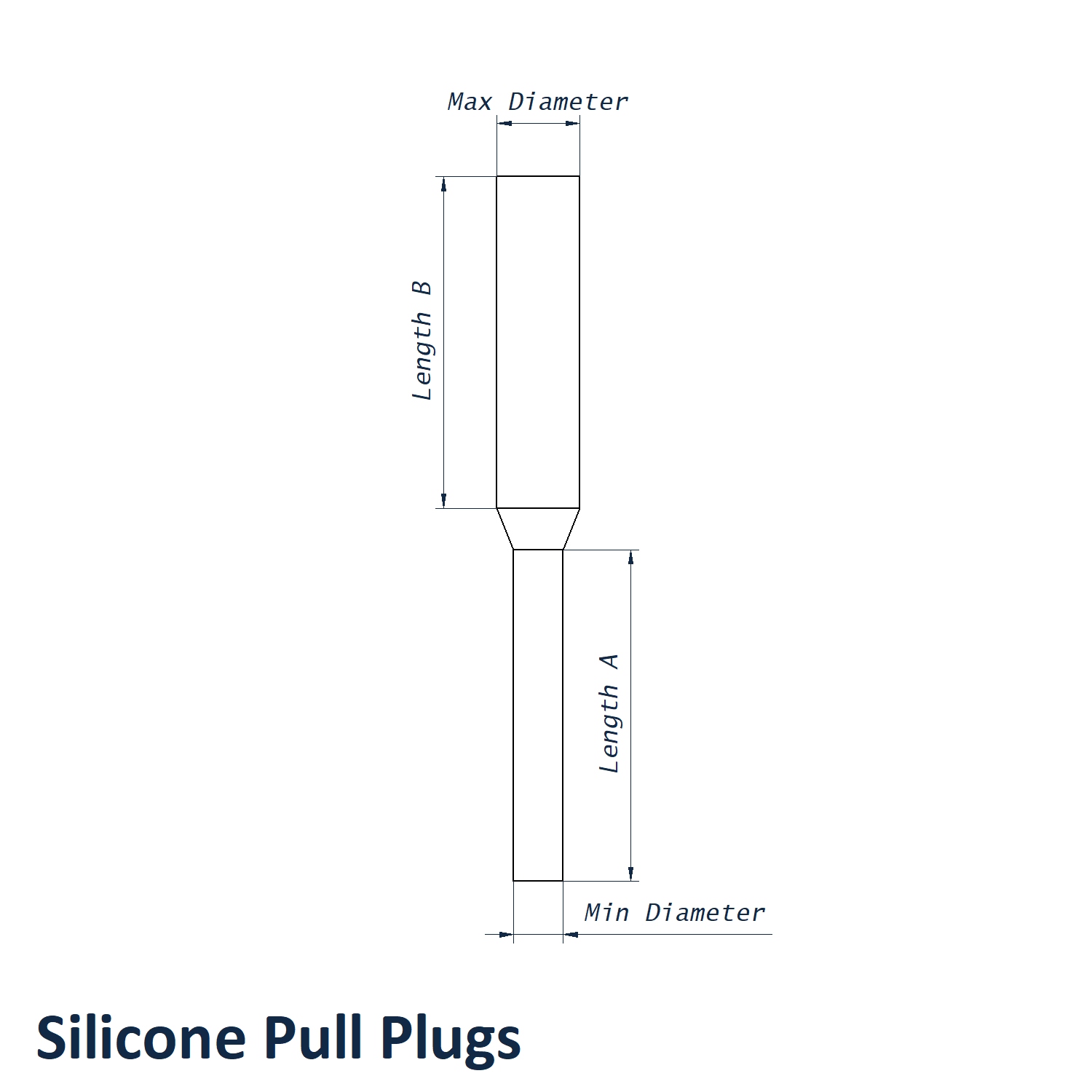

Product Specification
| Min Diameter | 1.3mm |
| Max Diameter | 2.4mm |
| Length A | 17.8mm |
| Length B | 17.8mm |
| Colour | Natural |
Frequently Bought Together
Total Price: £0.00

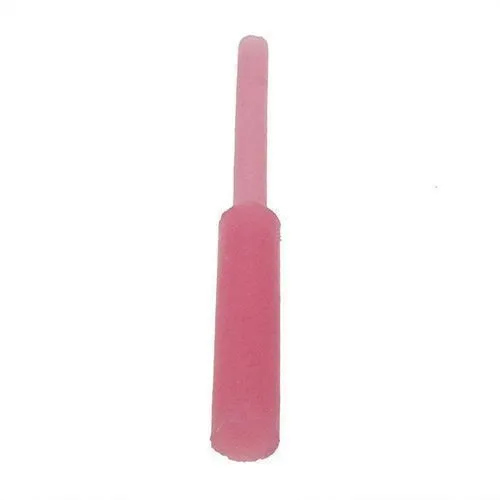

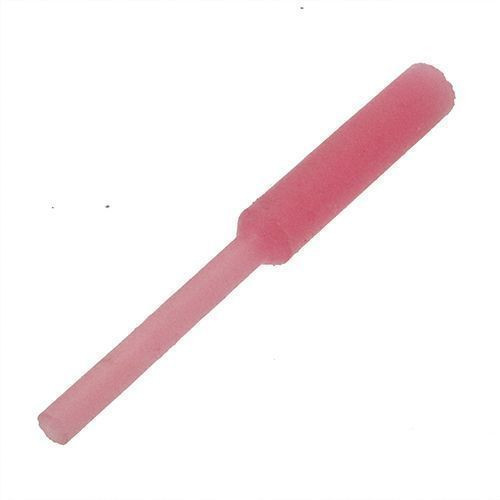

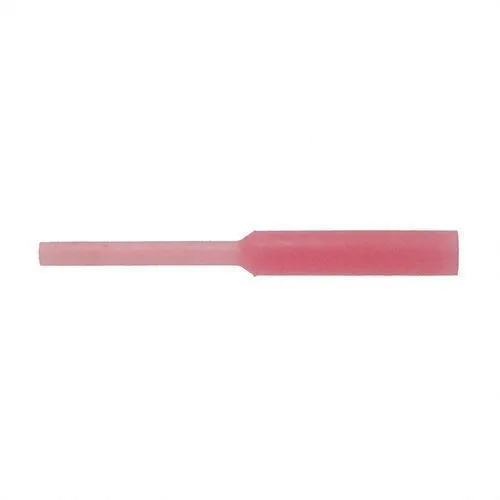

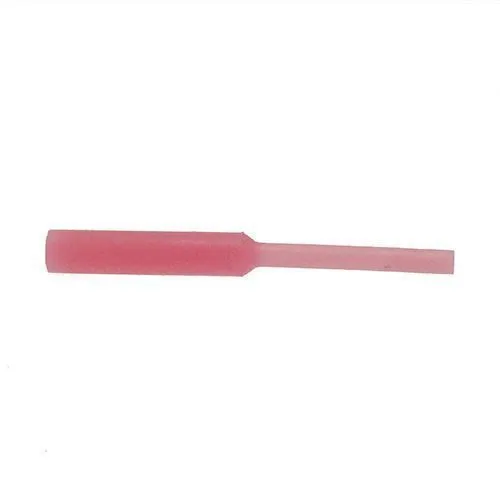

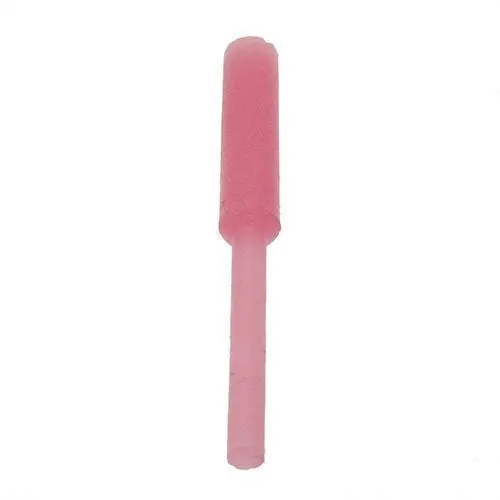

1.3mm to 2.4mm x 17.8mm Silicone Pull Plug | Natural Silicone | Vital Parts - SPP005
Our 1.3mm to 2.4mm x 17.8mm parallel silicone plug offers accurate masking for production environments where clean holes and quick changeovers are important. The natural silicone body tolerates temperatures up to 315°C and can be reused across multiple cycles.
What Are Silicone Pull Plugs?
Silicone masking pull plugs are reusable components that create a snug fit inside plain or threaded through-holes. The long pull tab helps position the plug accurately and makes removal easier in recessed or closely spaced applications.
Common Applications
- Component Coating: Maintains clear holes for later fastener installation after the coating stage.
- Anodising Lines: Protects internal bore surfaces during aluminium finishing processes.
- Plating Workshops: Reduces unwanted build-up inside holes during electroplating operations.
- General Engineering: Provides reusable temporary protection for through-holes during production.
Technical Specifications:
- Max Diameter: 2.4mm
- Min Diameter: 1.3mm
- Length A: 17.8mm
- Length B: 17.8mm
- Colour: Natural
- Material: Silicone
- Maximum Operating Temperature: Up to 315°C
- Profile: Parallel pull-through profile with integrated pull tab
- Suitable Hole Types: Threaded and non-threaded through-holes
Related High Temperature Masking Products
For openings requiring a stepped profile that can suit more than one diameter, explore our Silicone Step Plugs. You can also compare further dimensions and colours within our complete Silicone Pull Plugs range.
For help matching this silicone pull plug to your through-hole diameter or to discuss larger order quantities, contact our technical sales team on 01233 713581.
