Silicone Pull Plugs - SPP047
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £1.40 | £1.68 |
| 2 - 10 | £1.40 | £1.68 |
| 11 - 50 | £1.12 | £1.35 |
| 51 - 100 | £0.90 | £1.08 |
| 101 - 500 | £0.72 | £0.87 |
| 501 + | £0.57 | £0.69 |

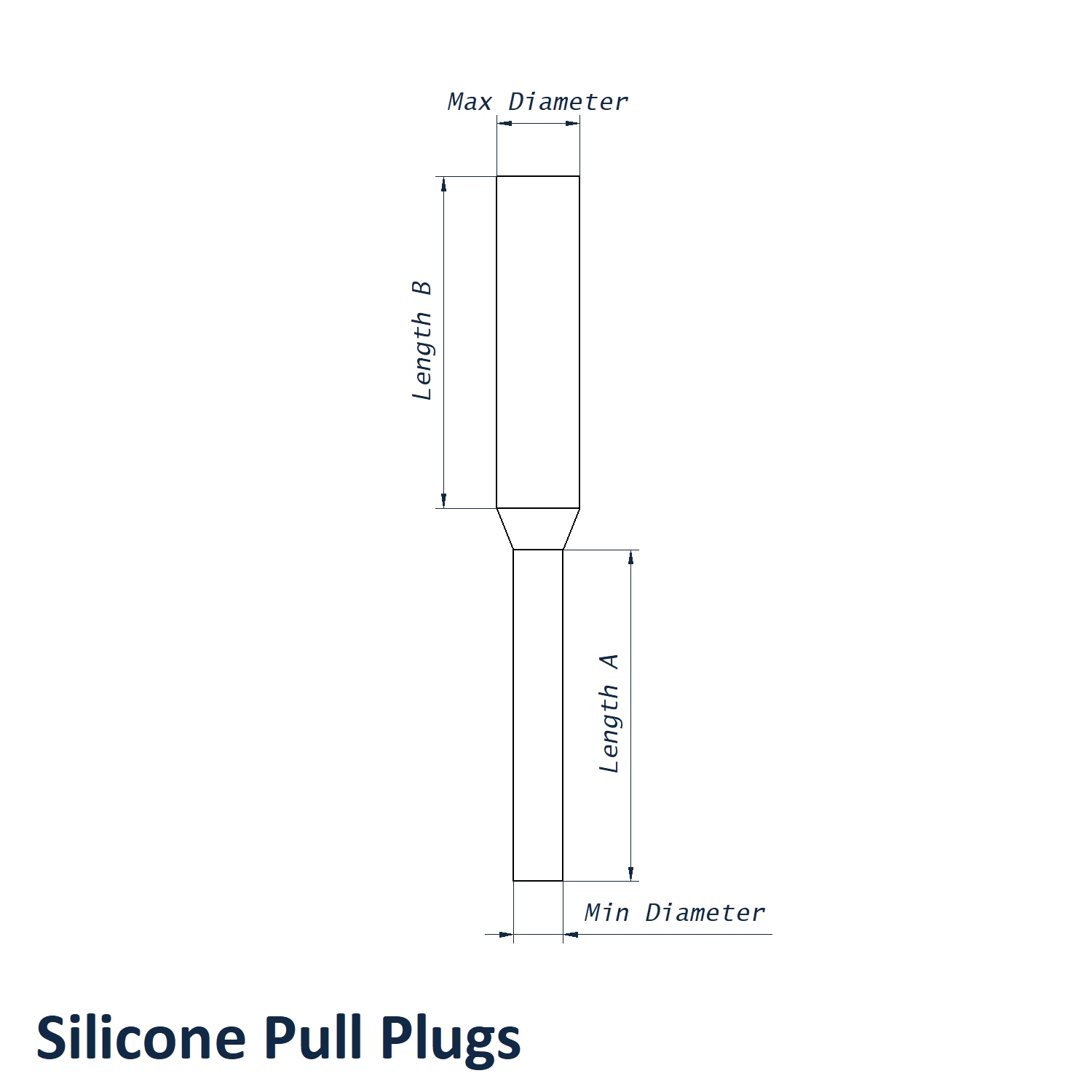

Product Specification
| Min Diameter | 9.5mm |
| Max Diameter | 22.8mm |
| Length A | 25.4mm |
| Length B | 25.4mm |
| Colour | Natural |
Frequently Bought Together
Total Price: £0.00

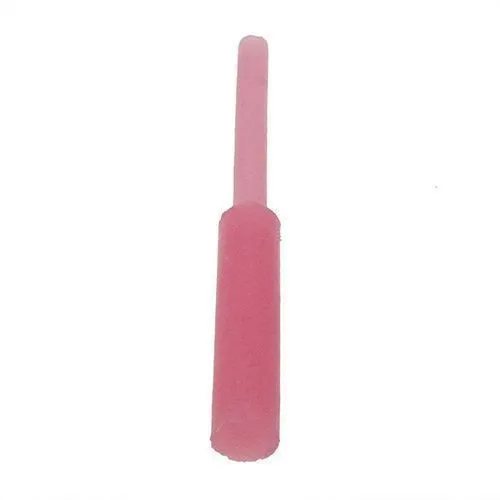

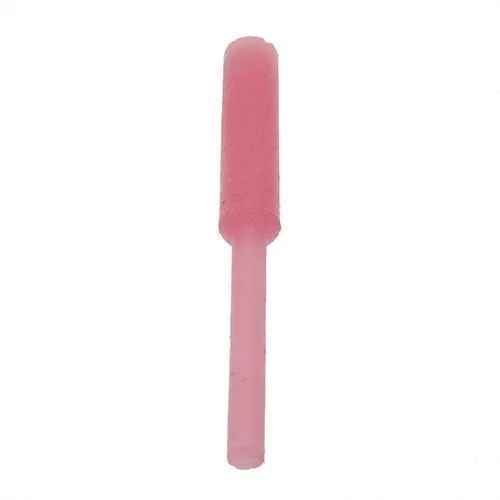

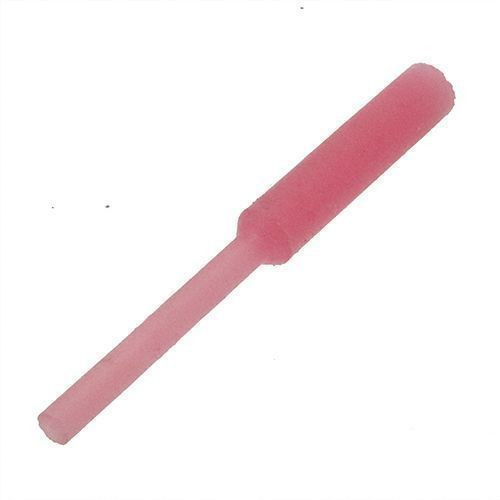

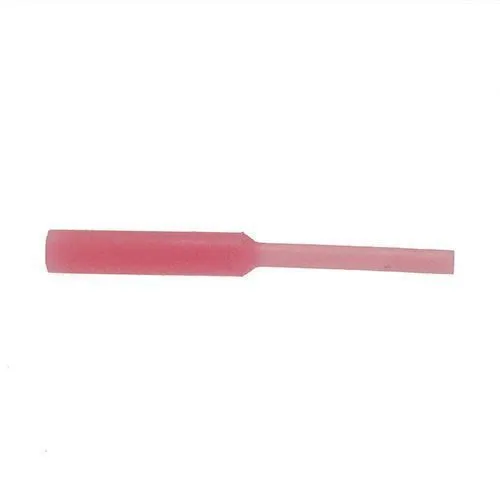

9.5mm to 22.8mm x 25.4mm Silicone Pull Plug | Natural Silicone | Vital Parts - SPP047
Made for repeat production use, this 9.5mm to 22.8mm x 25.4mm silicone masking pull plug helps keep through-holes clear during curing, plating and blasting operations. Its natural finish also supports straightforward identification on the workshop floor.
What Are Silicone Pull Plugs?
Silicone masking pull plugs are reusable components that create a snug fit inside plain or threaded through-holes. The long pull tab helps position the plug accurately and makes removal easier in recessed or closely spaced applications.
Common Applications
- Component Coating: Maintains clear holes for later fastener installation after the coating stage.
- Anodising Lines: Protects internal bore surfaces during aluminium finishing processes.
- Plating Workshops: Reduces unwanted build-up inside holes during electroplating operations.
- General Engineering: Provides reusable temporary protection for through-holes during production.
Technical Specifications:
- Max Diameter: 22.8mm
- Min Diameter: 9.5mm
- Length A: 25.4mm
- Length B: 25.4mm
- Colour: Natural
- Material: Silicone
- Maximum Operating Temperature: Up to 315°C
- Profile: Parallel pull-through profile with integrated pull tab
- Suitable Hole Types: Threaded and non-threaded through-holes
Related High Temperature Masking Products
For blind holes or openings requiring a multi-step body, consider our Silicone Step Plugs. Browse the complete Silicone Pull Plugs range for additional through-hole sizes.
To confirm whether this parallel silicone plug suits your threaded or plain through-hole, contact our technical sales team on 01233 713581.
