Silicone Pull Plugs - SPP045
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £1.25 | £1.50 |
| 2 - 10 | £1.25 | £1.50 |
| 11 - 50 | £1.00 | £1.20 |
| 51 - 100 | £0.80 | £0.96 |
| 101 - 500 | £0.64 | £0.77 |
| 501 + | £0.52 | £0.62 |

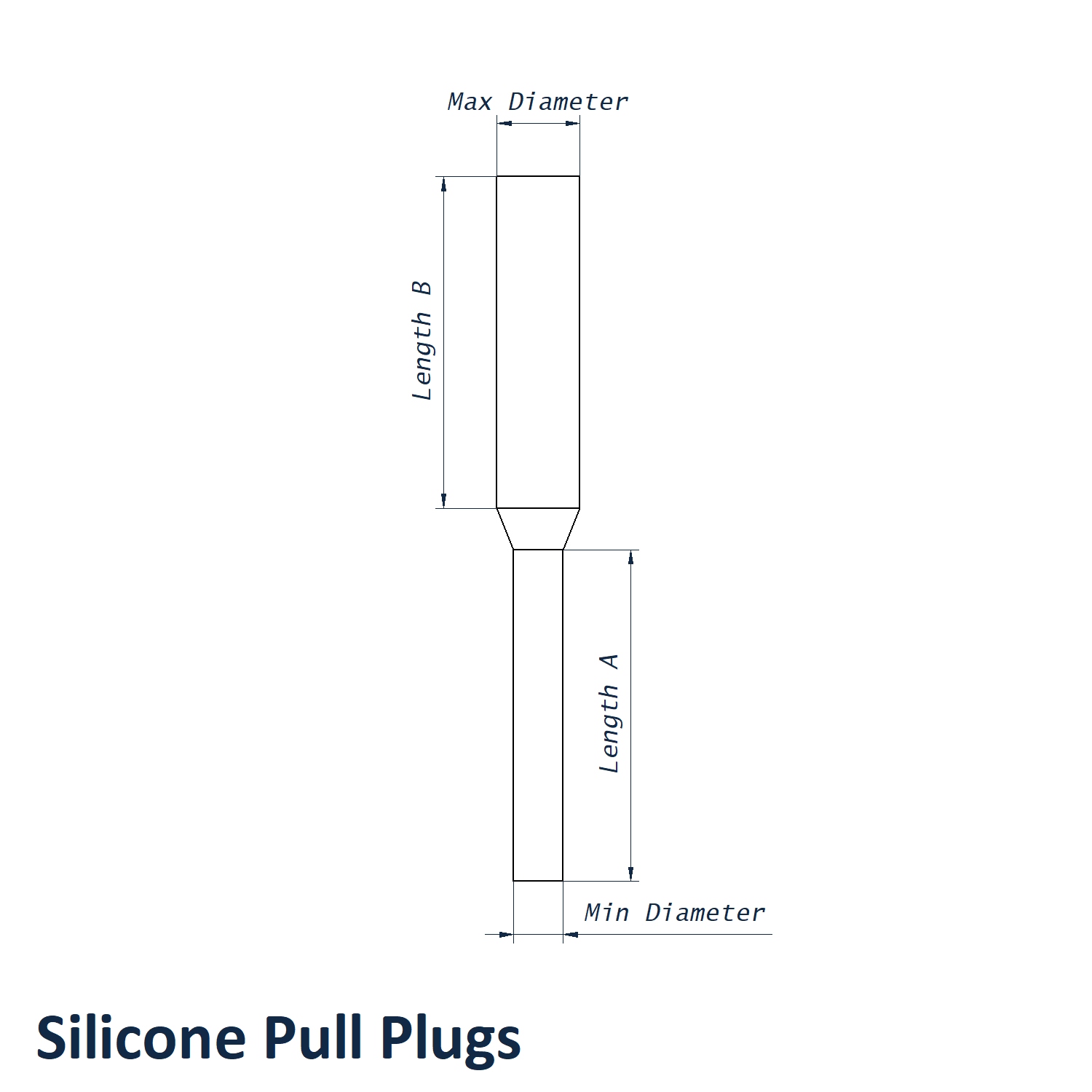

Product Specification
| Min Diameter | 9.5mm |
| Max Diameter | 18.0mm |
| Length A | 31.8mm |
| Length B | 33.7mm |
| Colour | Natural |
Frequently Bought Together
Total Price: £0.00
9.5mm to 18.0mm x 31.8mm Silicone Pull Plug | Natural Silicone | Vital Parts - SPP045
This 9.5mm to 18.0mm x 31.8mm high temperature masking plug uses premium natural silicone to protect selected holes during coating and treatment. A flexible pull extension passes through the component, allowing the plug to be drawn into position and removed without tools.
What Are Silicone Pull Plugs?
Parallel silicone pull plugs protect through-holes during high-temperature finishing. Their flexible body compresses against the internal wall of the opening while the integrated tab provides a convenient grip for installation and tool-free extraction.
Common Applications
- Powder Coating Lines: Enables quick masking and removal during repetitive high-volume curing cycles.
- Metal Finishing: Keeps critical holes free from unwanted coating, paint or treatment residue.
- Precision Engineering: Protects measured openings where dimensional cleanliness is important after finishing.
- Maintenance Processing: Temporarily seals pipes, tubes and component openings during cleaning or treatment.
Technical Specifications:
- Max Diameter: 18.0mm
- Min Diameter: 9.5mm
- Length A: 31.8mm
- Length B: 33.7mm
- Colour: Natural
- Material: Silicone
- Maximum Operating Temperature: Up to 315°C
- Profile: Parallel pull-through profile with integrated pull tab
- Suitable Hole Types: Threaded and non-threaded through-holes
Related High Temperature Masking Products
For openings requiring a stepped profile that can suit more than one diameter, explore our Silicone Step Plugs. You can also compare further dimensions and colours within our complete Silicone Pull Plugs range.
For help matching this silicone pull plug to your through-hole diameter or to discuss larger order quantities, contact our technical sales team on 01233 713581.
