Silicone Pull Plugs - SPP044
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £1.20 | £1.44 |
| 2 - 10 | £1.20 | £1.44 |
| 11 - 50 | £0.97 | £1.16 |
| 51 - 100 | £0.78 | £0.93 |
| 101 - 500 | £0.62 | £0.74 |
| 501 + | £0.49 | £0.59 |

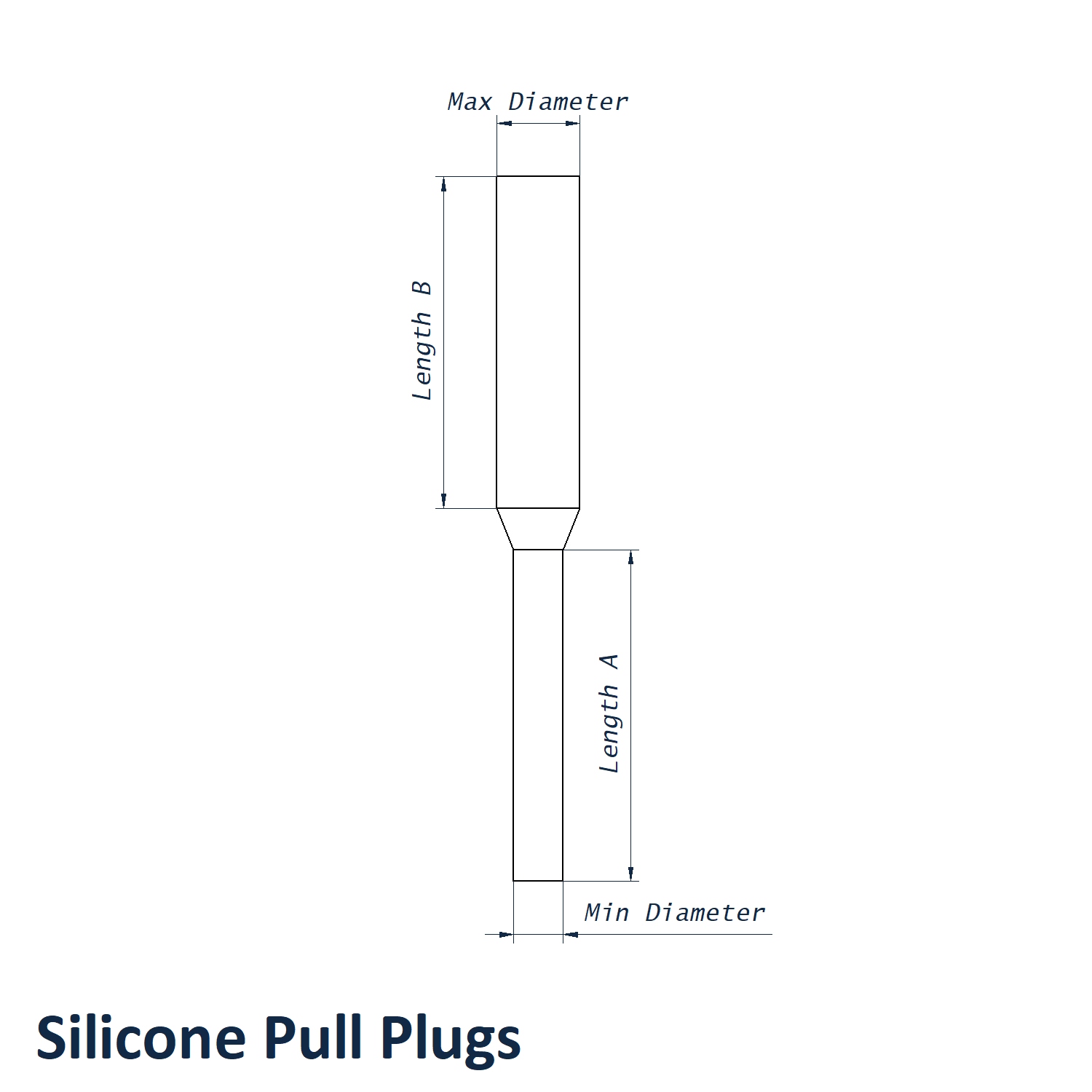

Product Specification
| Min Diameter | 9.5mm |
| Max Diameter | 16.3mm |
| Length A | 25.4mm |
| Length B | 25.4mm |
| Colour | Natural |
Frequently Bought Together
Total Price: £0.00

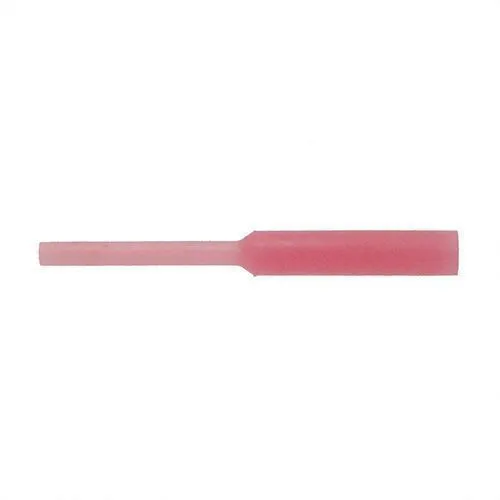

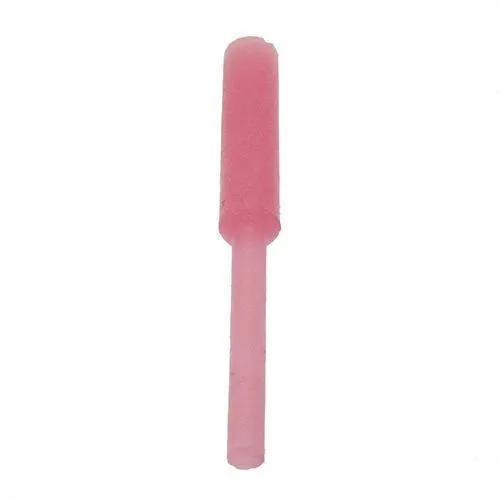

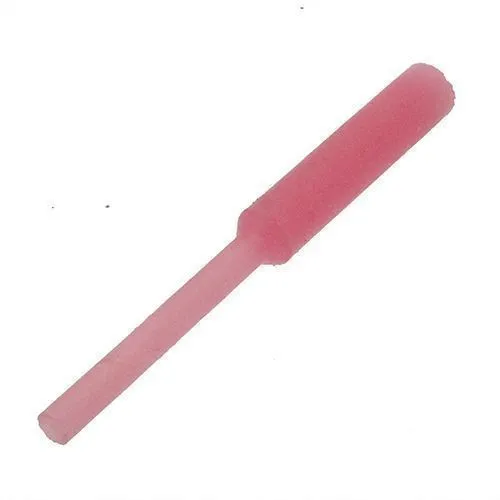

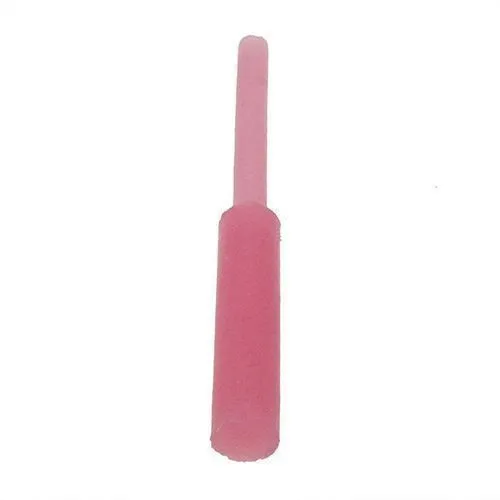

9.5mm to 16.3mm x 25.4mm Silicone Pull Plug | Natural Silicone | Vital Parts - SPP044
The 9.5mm to 16.3mm x 25.4mm industrial silicone pull plug is manufactured for powder coating, anodising and other finishing processes requiring protected through-holes. Its parallel shape sits neatly inside the opening and the pull tab reduces removal time.
What Are Silicone Pull Plugs?
A silicone pull plug is a reusable through-hole masking component with a parallel central section and an extended pull tab. It can be used in threaded or non-threaded openings and is particularly useful where access from both sides of the component is available.
Common Applications
- Automotive Manufacturing: Masks holes in brackets, housings and fabricated components during paint and coating work.
- Aerospace Finishing: Supports precise protection of through-holes on parts requiring controlled surface treatment.
- E-Coating: Helps prevent coating build-up inside selected threaded and non-threaded openings.
- Industrial Fabrication: Provides reusable bore protection during multi-stage finishing operations.
Technical Specifications:
- Max Diameter: 16.3mm
- Min Diameter: 9.5mm
- Length A: 25.4mm
- Length B: 25.4mm
- Colour: Natural
- Material: Silicone
- Maximum Operating Temperature: Up to 315°C
- Profile: Parallel pull-through profile with integrated pull tab
- Suitable Hole Types: Threaded and non-threaded through-holes
Related High Temperature Masking Products
Compare this product with our Silicone Step Plugs for applications needing a stepped masking profile. Alternative pull-tab diameters are listed within the full Silicone Pull Plugs range.
For assistance selecting the correct silicone pull tab plug or arranging a larger production quantity, call our team on 01233 713581.
