M3 (4.0mm) x 10.0mm Slotted Pan Head Shoulder Bolt (DIN 923) | A1 Stainless Steel
CAD Viewer
CAD Request
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 24 | £0.50 | £0.60 |
| 25 - 49 | £0.42 | £0.51 |
| 50 - 99 | £0.36 | £0.43 |
| 100 - 499 | £0.28 | £0.34 |
| 500 - 999 | £0.26 | £0.31 |
| 1000 + | £0.24 | £0.29 |
£0.60 / each
Product Specification
| Thread Size | M3 |
| Thread Pitch | 0.50mm |
| Shoulder Diameter | 4.0mm |
| Shoulder Length | 10.0mm |
| Thread Length | 4.5mm |
| Head Diameter | 7.0mm |
| Head Height | 1.9mm |
| Drive | Slotted |
| Material | A1 Stainless Steel |
Frequently Bought Together
- Thread Size M3
- Material A2 Stainless Steel
- Length 1000mm
- Standard DIN 976-1
- Pitch 0.50mm
- Thread Size M3
- Material A2 Stainless Steel
- Height 2.40mm
- Thread Pitch 0.50mm
- Across Flats 5.5mm
- Standard DIN 934
- Material A2 Stainless Steel
- Thickness 0.50mm
- Internal Diameter 3.2mm
- Outside Diameter 7.0mm
- Standard DIN 125A
- Size M3
Total Price: £0.00
M3 x 4mm Shoulder, 10mm Long Slotted Pan Head Shoulder Bolt (DIN 923) | A1 Stainless Steel

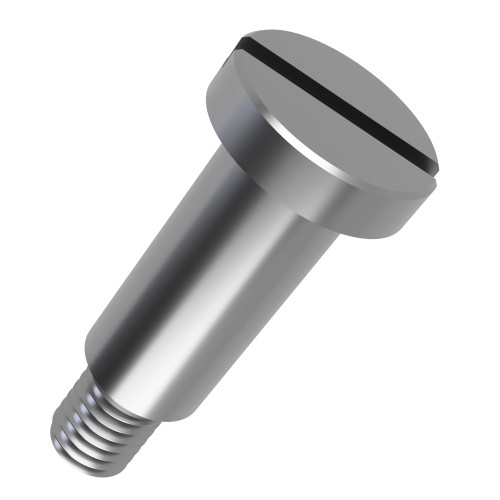

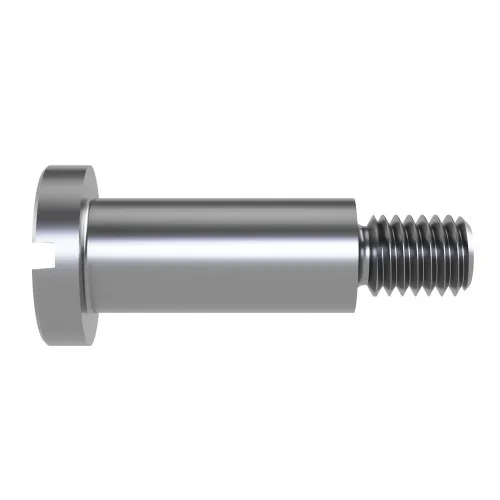

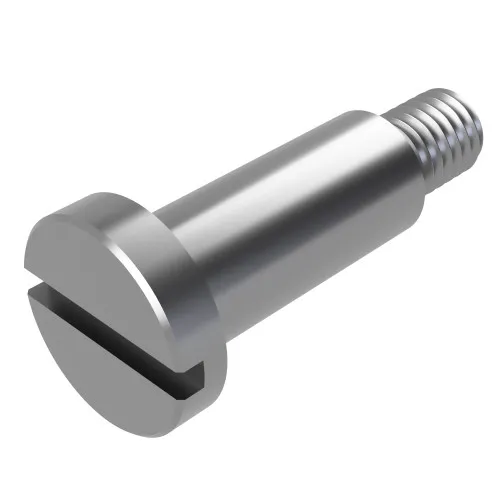

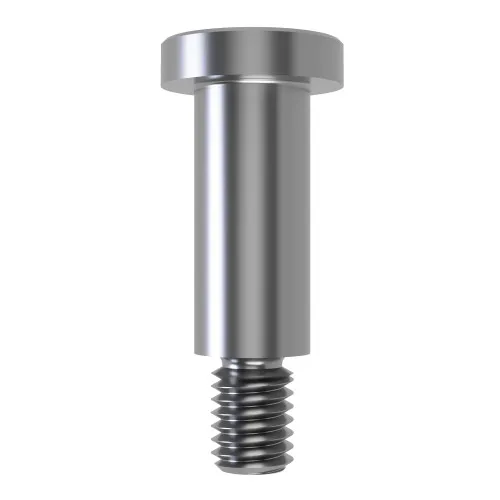

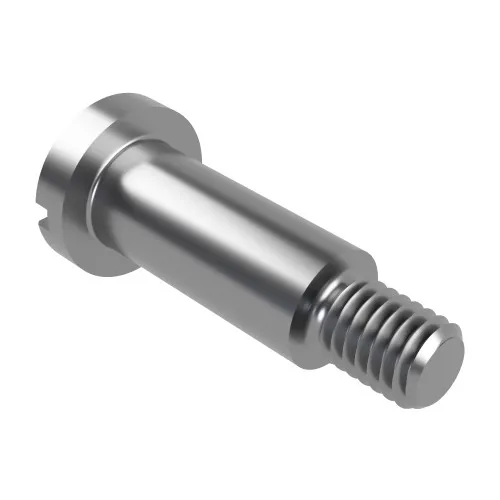

Featuring a 10.0mm smooth shoulder and a 4.0mm shoulder diameter, this M3 slotted pan head shoulder bolt is produced in A1 Stainless Steel. The shoulder locates a component or spacer while the threaded tip provides attachment to a matching tapped hole. Its 7.0mm pan head has a 1.9mm head height.
What Are Slotted Pan Head Shoulder Bolts?
These stepped screws combine fastening and component location. Their threaded end is tightened into a compatible hole and the 4.0mm smooth shoulder can pass through a matching clearance hole to act as a spacer or guide over its 10.0mm length. Select a corresponding clearance hole and threaded receiving part to match the stated dimensions.
Common Applications
- Jigs and fixtures: Using the shoulder to register a fixture component in a matching hole.
- Moving mechanisms: Providing a cylindrical contact section for a compatible link or arm.
- Panel mechanisms: Mounting a guided or pivoting panel fitting where the shoulder dimensions are suitable.
- Workshop equipment: Creating a removable joint with a machine-threaded end and a slotted head.

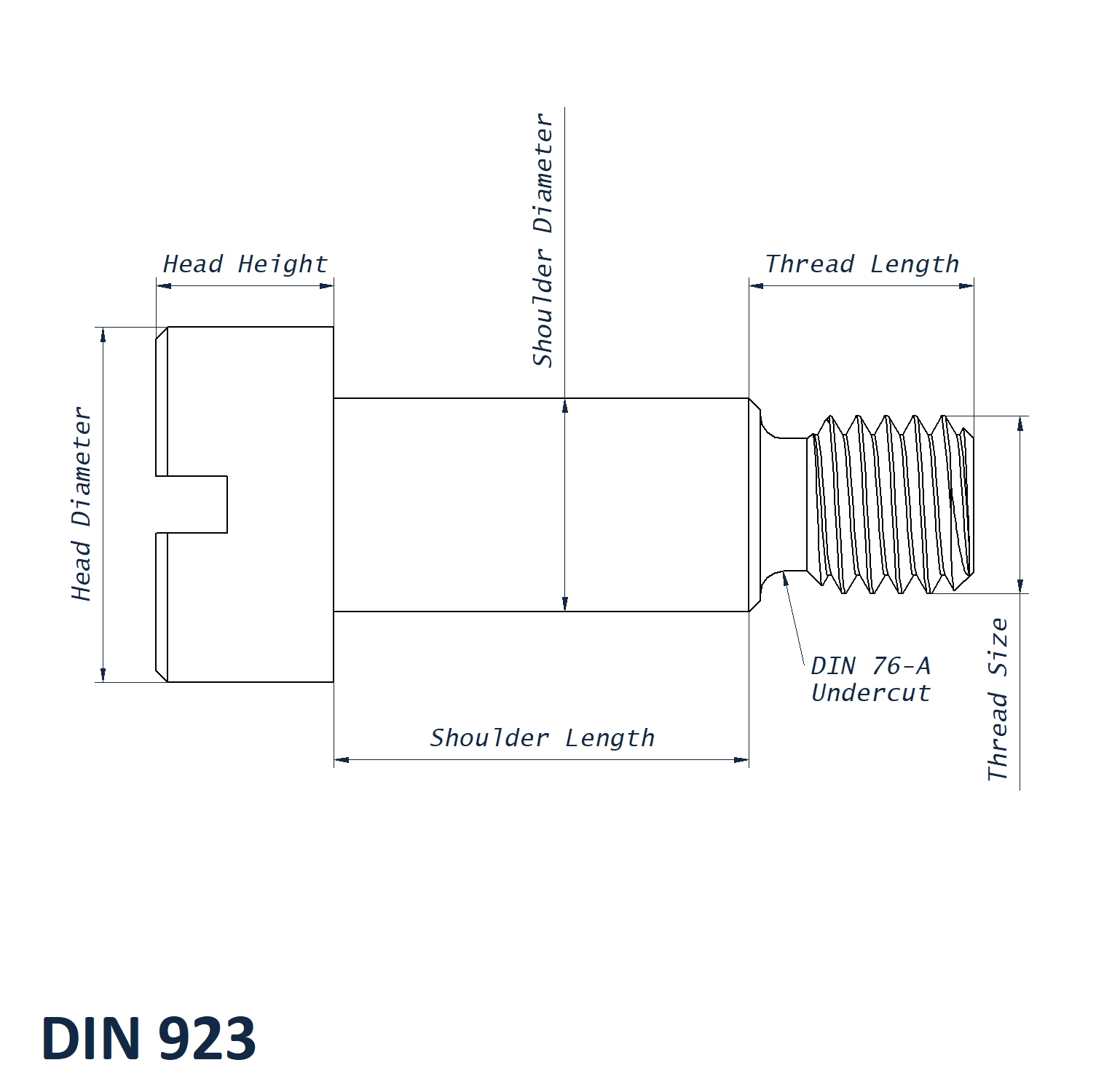

M3 x 4mm Shoulder, 10mm Slotted Shoulder Bolt Dimensions
- Thread Size: M3
- Thread Pitch: 0.50mm
- Shoulder Diameter: 4.0mm
- Shoulder Length: 10.0mm
- Thread Length: 4.5mm
- Head Diameter: 7.0mm
- Head Height: 1.9mm
- Drive: Slotted
- Material: A1 Stainless Steel
Key Benefits
- Pan head offers a distinct head bearing surface over the stepped shoulder.
- Its M3 thread can be paired with a correctly matched threaded component.
- The unthreaded 4.0mm shoulder avoids using the screw thread as the contact surface.
- A 10.0mm shoulder provides a repeatable dimension for replacement selection.
Compare more slotted pan head shoulder screws for different thread sizes and shoulder lengths. If you need help selecting the correct fixing, call us on 01233 713581.
| Code | Thread Size | Material | Thread Length | Thread Pitch | Head Diameter | Drive | Head Height | Shoulder Diameter | Shoulder Length | Stock | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SHOU923-M3-10-A1 | M3 | A1 Stainless Steel | 4.5mm | 0.50mm | 7.0mm | Slotted | 1.9mm | 4.0mm | 10.0mm |
Checking...
|
|
| SHOU923-M3-12-A1 | M3 | A1 Stainless Steel | 4.5mm | 0.50mm | 7.0mm | Slotted | 1.9mm | 4.0mm | 12.0mm |
Checking...
|
|
| SHOU923-M3-16-A1 | M3 | A1 Stainless Steel | 4.5mm | 0.50mm | 7.0mm | Slotted | 1.9mm | 4.0mm | 16.0mm |
Checking...
|
|
| SHOU923-M4-2-A1 | M4 | A1 Stainless Steel | 6.0mm | 0.70mm | 8.5mm | Slotted | 2.5mm | 5.5mm | 2.0mm |
Checking...
|
|
| SHOU923-M4-2.5-A1 | M4 | A1 Stainless Steel | 6.0mm | 0.70mm | 8.5mm | Slotted | 2.5mm | 5.5mm | 2.5mm |
Checking...
|
|
| SHOU923-M4-3-A1 | M4 | A1 Stainless Steel | 6.0mm | 0.70mm | 8.5mm | Slotted | 2.5mm | 5.5mm | 3.0mm |
Checking...
|
|
| SHOU923-M4-4-A1 | M4 | A1 Stainless Steel | 6.0mm | 0.70mm | 8.5mm | Slotted | 2.5mm | 5.5mm | 4.0mm |
Checking...
|
|
