M4 (5.5mm) x 2.5mm Slotted Pan Head Shoulder Bolt (DIN 923) | A1 Stainless Steel

Product code: SHOU923-M4-2.5-A1
View All Specifications
M4 (5.5mm) x 2.5mm Slotted Pan Head Shoulder Bolt (DIN 923) | A1 Stainless Steel
M4 (5.5mm) x 2.5mm Slotted Pan Head Shoulder Bolt (DIN 923) | A1 Stainless Steel
M4 (5.5mm) x 2.5mm Slotted Pan Head Shoulder Bolt (DIN 923) | A1 Stainless Steel
M4 (5.5mm) x 2.5mm Slotted Pan Head Shoulder Bolt (DIN 923) | A1 Stainless Steel
M4 (5.5mm) x 2.5mm Slotted Pan Head Shoulder Bolt (DIN 923) | A1 Stainless Steel
M4 (5.5mm) x 2.5mm Slotted Pan Head Shoulder Bolt (DIN 923) | A1 Stainless Steel
Quantity
Unit Price
(ex. VAT)
Unit Price
(inc. VAT)
1 - 24 £0.39 £0.47
25 - 49 £0.33 £0.40
50 - 99 £0.28 £0.33
100 - 499 £0.23 £0.27
500 - 999 £0.20 £0.24
1000 + £0.18 £0.22

£0.47 / each


Up to 11,025 units
Available
Vital Parts Tick
Order now for dispatch within 5 days.
11,025 + units
Available for production
Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.

Product Specification
Thread Size M4
Thread Pitch 0.70mm
Shoulder Diameter 5.5mm
Shoulder Length 2.5mm
Thread Length 6.0mm
Head Diameter 8.5mm
Head Height 2.5mm
Drive Slotted
Material A1 Stainless Steel

Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.

Larger Order?

Call our sales team on

01233 713581


Frequently Bought Together

Total Price: £0.00

M4 x 5.5mm Shoulder, 2.5mm Long Slotted Pan Head Shoulder Bolt (DIN 923) | A1 Stainless Steel

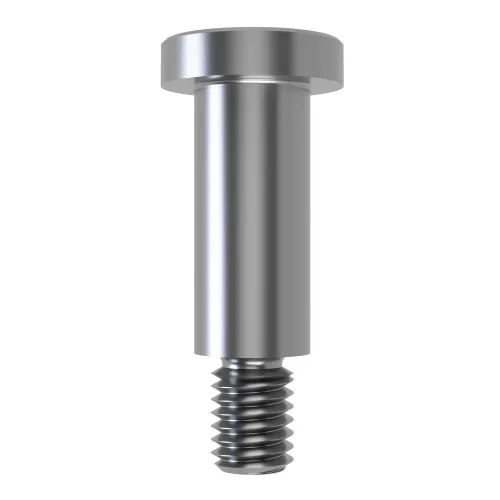

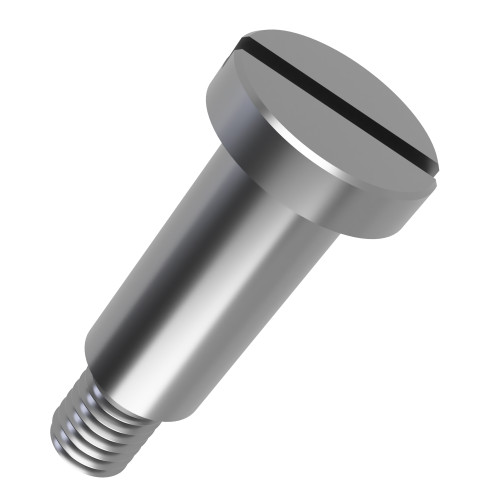

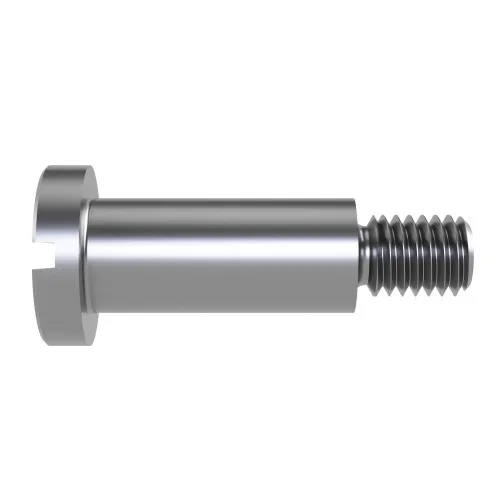

Made from A1 Stainless Steel, this M4 DIN 923 slotted pan head shoulder bolt has a 5.5mm smooth shoulder and a 2.5mm shoulder length. The slotted head accepts a flat-blade screwdriver while the threaded end fixes into a matching tapped component. It is suited to compact linkages and guided mechanical assemblies. The specified thread length is 6mm with a 0.70mm pitch.

What Are Slotted Pan Head Shoulder Bolts?

These stepped screws combine fastening and component location. Their threaded end is tightened into a compatible hole and the 5.5mm smooth shoulder can pass through a matching clearance hole to act as a spacer or guide over its 2.5mm length. Select a corresponding clearance hole and threaded receiving part to match the stated dimensions.

Common Applications

  • Jigs and fixtures: Using the shoulder to register a fixture component in a matching hole.
  • Moving mechanisms: Providing a cylindrical contact section for a compatible link or arm.
  • Panel mechanisms: Mounting a guided or pivoting panel fitting where the shoulder dimensions are suitable.
  • Workshop equipment: Creating a removable joint with a machine-threaded end and a slotted head.

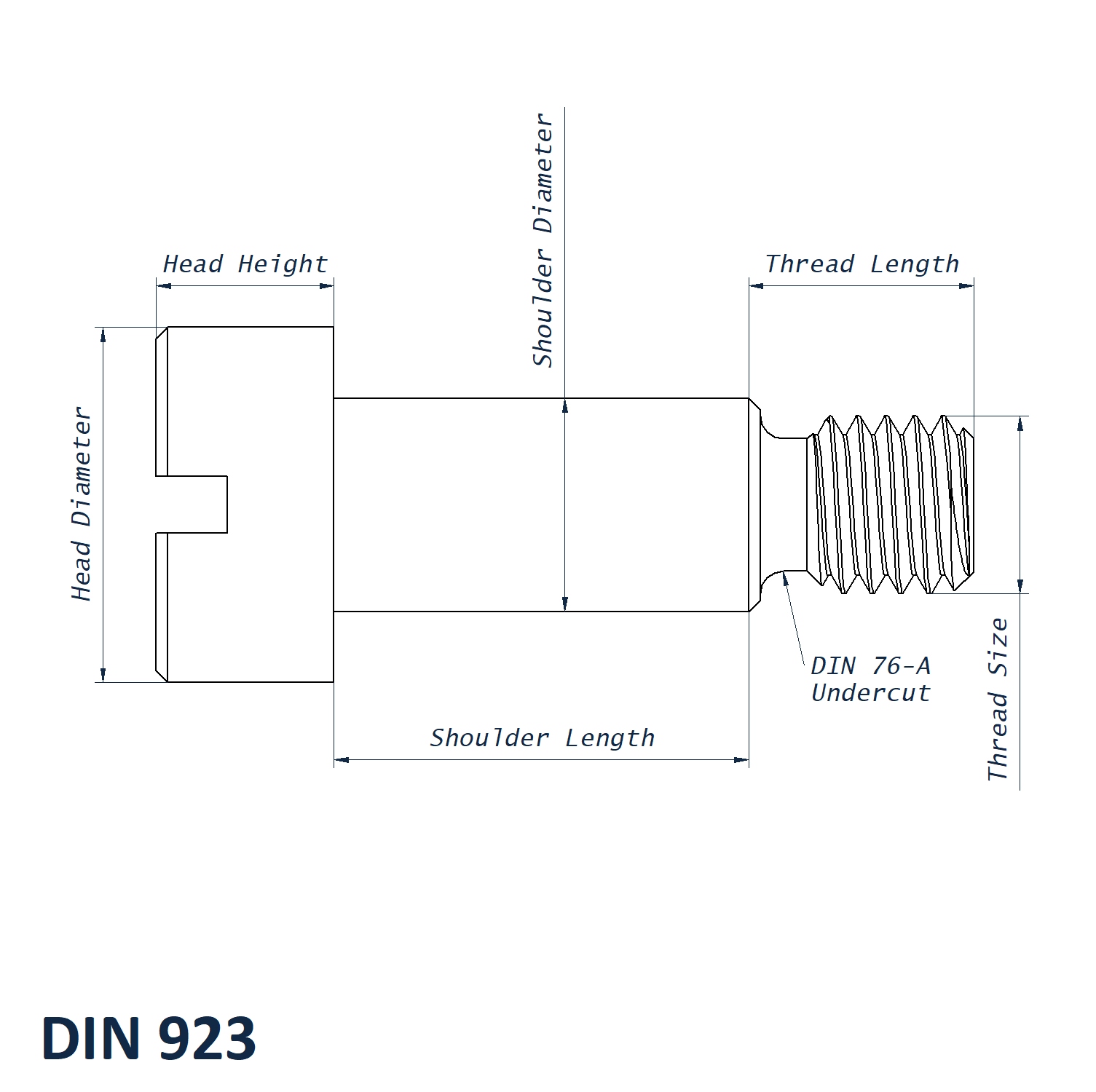

M4 x 5.5mm Shoulder, 2.5mm Slotted Shoulder Bolt Dimensions

  • Thread Size: M4
  • Thread Pitch: 0.70mm
  • Shoulder Diameter: 5.5mm
  • Shoulder Length: 2.5mm
  • Thread Length: 6.0mm
  • Head Diameter: 8.5mm
  • Head Height: 2.5mm
  • Drive: Slotted
  • Material: A1 Stainless Steel

Key Benefits

  • Pan head offers a distinct head bearing surface over the stepped shoulder.
  • Its M4 thread can be paired with a correctly matched threaded component.
  • The unthreaded 5.5mm shoulder avoids using the screw thread as the contact surface.
  • A 2.5mm shoulder provides a repeatable dimension for replacement selection.

Compare more slotted pan head shoulder screws for different thread sizes and shoulder lengths. If you need help selecting the correct fixing, call us on 01233 713581.
