M4 (5.5mm) x 16.0mm Slotted Pan Head Shoulder Bolt (DIN 923) | A1 Stainless Steel

Product code: SHOU923-M4-16-A1
View All Specifications
M4 (5.5mm) x 16.0mm Slotted Pan Head Shoulder Bolt (DIN 923) | A1 Stainless Steel
M4 (5.5mm) x 16.0mm Slotted Pan Head Shoulder Bolt (DIN 923) | A1 Stainless Steel
M4 (5.5mm) x 16.0mm Slotted Pan Head Shoulder Bolt (DIN 923) | A1 Stainless Steel
M4 (5.5mm) x 16.0mm Slotted Pan Head Shoulder Bolt (DIN 923) | A1 Stainless Steel
M4 (5.5mm) x 16.0mm Slotted Pan Head Shoulder Bolt (DIN 923) | A1 Stainless Steel
M4 (5.5mm) x 16.0mm Slotted Pan Head Shoulder Bolt (DIN 923) | A1 Stainless Steel
Quantity
Unit Price
(ex. VAT)
Unit Price
(inc. VAT)
1 - 24 £0.72 £0.87
25 - 49 £0.62 £0.74
50 - 99 £0.52 £0.62
100 - 499 £0.41 £0.49
500 - 999 £0.38 £0.45
1000 + £0.35 £0.42

£0.87 / each


Up to 3,600 units
Available
Vital Parts Tick
Order now for dispatch within 5 days.
3,600 + units
Available for production
Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.

Product Specification
Thread Size M4
Thread Pitch 0.70mm
Shoulder Diameter 5.5mm
Shoulder Length 16.0mm
Thread Length 6.0mm
Head Diameter 8.5mm
Head Height 2.5mm
Drive Slotted
Material A1 Stainless Steel

Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.

Larger Order?

Call our sales team on

01233 713581


Frequently Bought Together

Total Price: £0.00

M4 x 5.5mm Shoulder, 16mm Long Slotted Pan Head Shoulder Bolt (DIN 923) | A1 Stainless Steel

This M4 slotted shoulder screw combines a 16.0mm unthreaded shoulder with a 5.5mm shoulder diameter and a conventional slotted pan head. Manufactured from A1 Stainless Steel, it can be fastened into a matching female thread while leaving the cylindrical shoulder available to locate adjoining components. Its 8.5mm pan head has a 2.5mm head height.

What Are Slotted Pan Head Shoulder Bolts?

These stepped screws combine fastening and component location. Their threaded end is tightened into a compatible hole and the 5.5mm smooth shoulder can pass through a matching clearance hole to act as a spacer or guide over its 16.0mm length. Select a corresponding clearance hole and threaded receiving part to match the stated dimensions.

Common Applications

  • Jigs and fixtures: Using the shoulder to register a fixture component in a matching hole.
  • Moving mechanisms: Providing a cylindrical contact section for a compatible link or arm.
  • Panel mechanisms: Mounting a guided or pivoting panel fitting where the shoulder dimensions are suitable.
  • Workshop equipment: Creating a removable joint with a machine-threaded end and a slotted head.

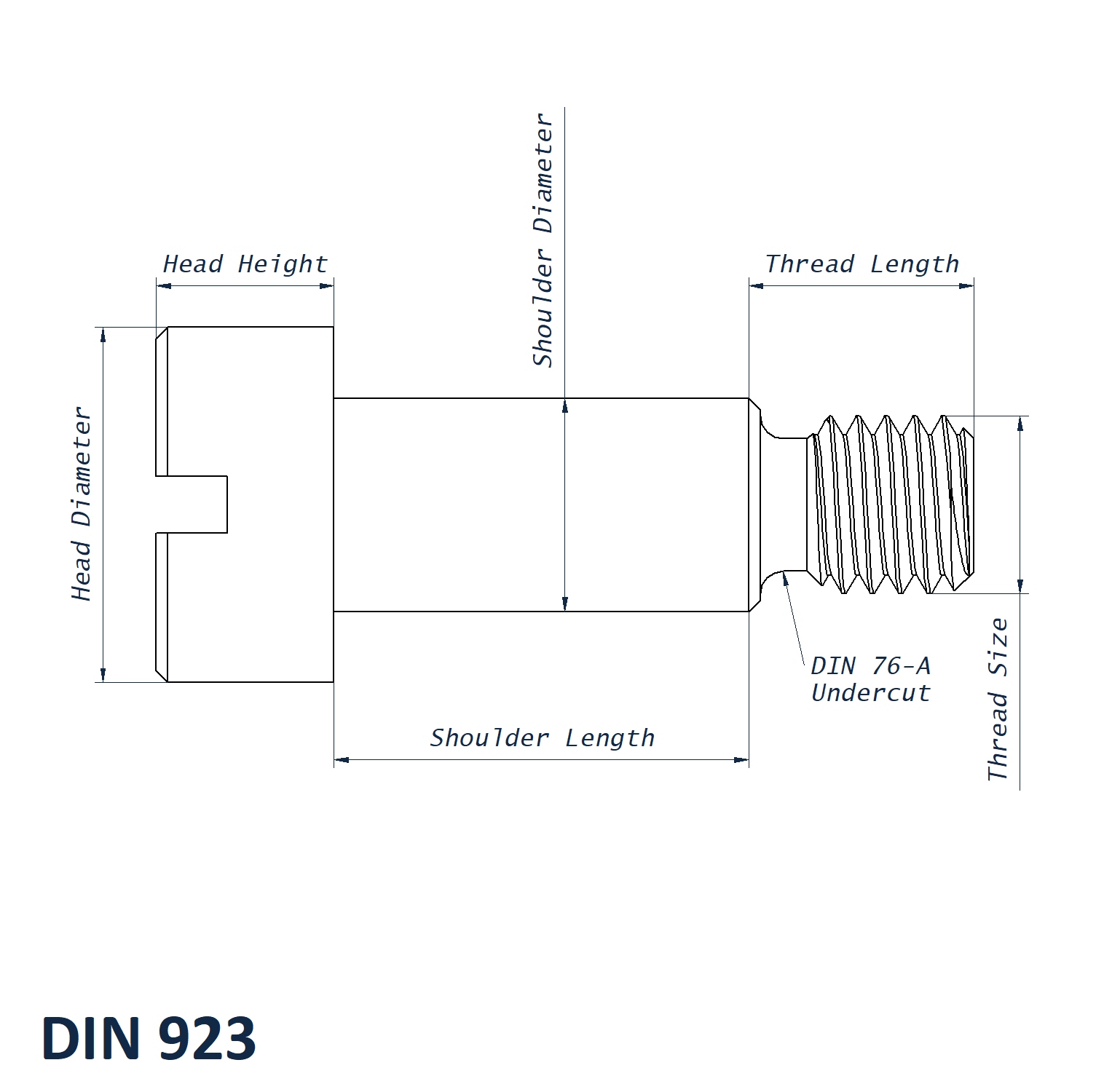

M4 x 5.5mm Shoulder, 16mm Slotted Shoulder Bolt Dimensions

  • Thread Size: M4
  • Thread Pitch: 0.70mm
  • Shoulder Diameter: 5.5mm
  • Shoulder Length: 16.0mm
  • Thread Length: 6.0mm
  • Head Diameter: 8.5mm
  • Head Height: 2.5mm
  • Drive: Slotted
  • Material: A1 Stainless Steel

Key Benefits

  • Pan head offers a distinct head bearing surface over the stepped shoulder.
  • Its M4 thread can be paired with a correctly matched threaded component.
  • The unthreaded 5.5mm shoulder avoids using the screw thread as the contact surface.
  • A 16.0mm shoulder provides a repeatable dimension for replacement selection.

Compare more slotted pan head shoulder screws for different thread sizes and shoulder lengths. If you need help selecting the correct fixing, call us on 01233 713581.

Please call for any enquiries!
Mon - Thurs 8.30 am - 5.30 pm
Fri 8.30 am - 3.30 pm
✕
