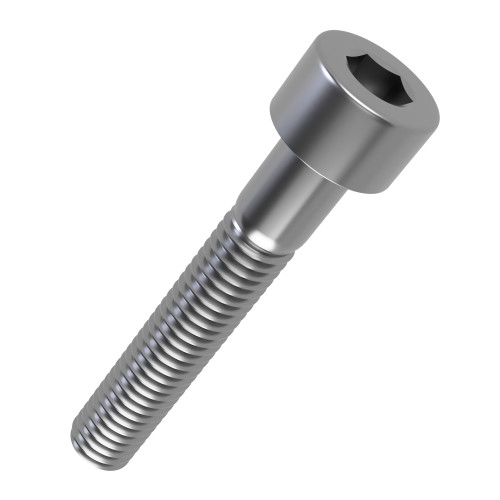

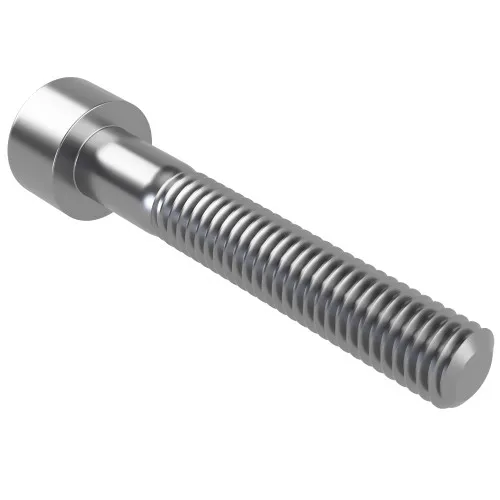

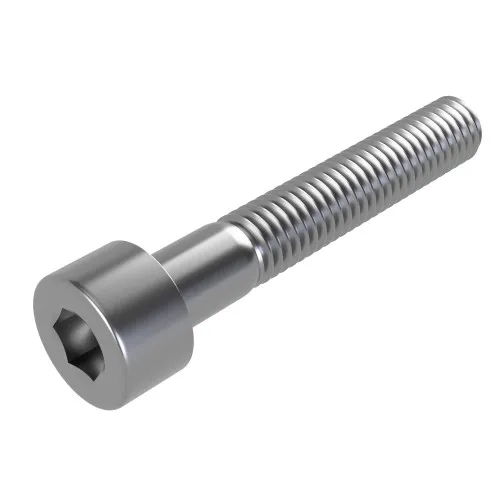

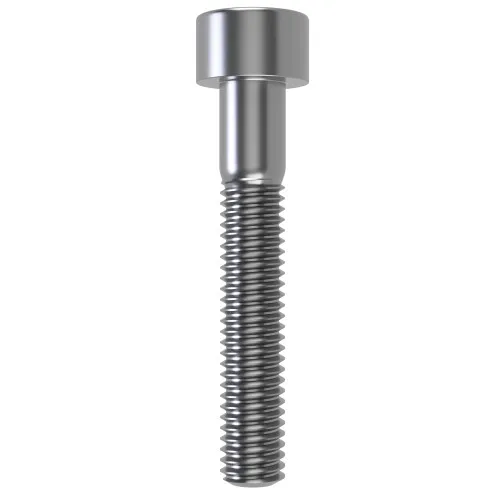

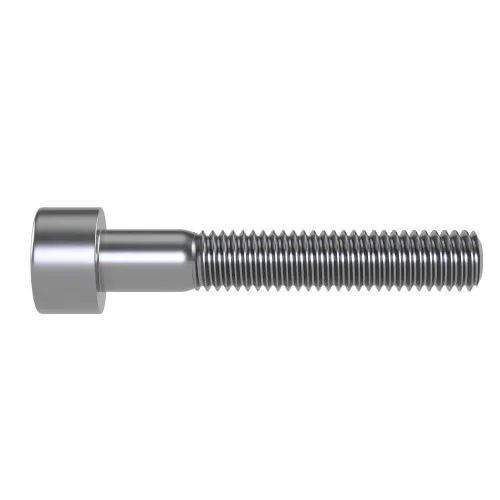

M22 x 190mm Hex Socket Cap Screw (DIN 912) | A2 Stainless Steel
Product code:
HSC912-M22-190-A2
View All Specifications
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £30.96 | £37.15 |
| 50 - 99 | £25.33 | £30.40 |
| 100 + | £18.57 | £22.29 |
£37.15
/ each
Quantity:
Product Specification
| Thread Size | M22 |
| Length | 190mm |
| Threaded Length | 56mm |
| Pitch | 2.50mm |
| Head Diameter | 33.0mm |
| Head Height | 22.0mm |
| Drive | H17 |
| Head Style | Cap Head |
| Material | A2 Stainless Steel |
Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.
Frequently Bought Together
+
Total Price: £0.00
M22 x 190mm Hex Socket Cap Screw (DIN 912) | A2 Stainless Steel
Developed for machine building, this M22 x 190mm hex drive cap screw gives a secure hex socket fixing with a 22mm head height for machine and equipment assemblies.
The A2 corrosion resistant stainless steel material specification is well suited to installing guarding panels, particularly where compact head clearance is required from a compact socket head fixing. The A2 stainless specification offers good corrosion resistance for workshop, machinery and cabinet applications.
Common Applications
- Industrial frame construction
- Laboratory fixture builds
- Production line module assembly
- Production equipment builds

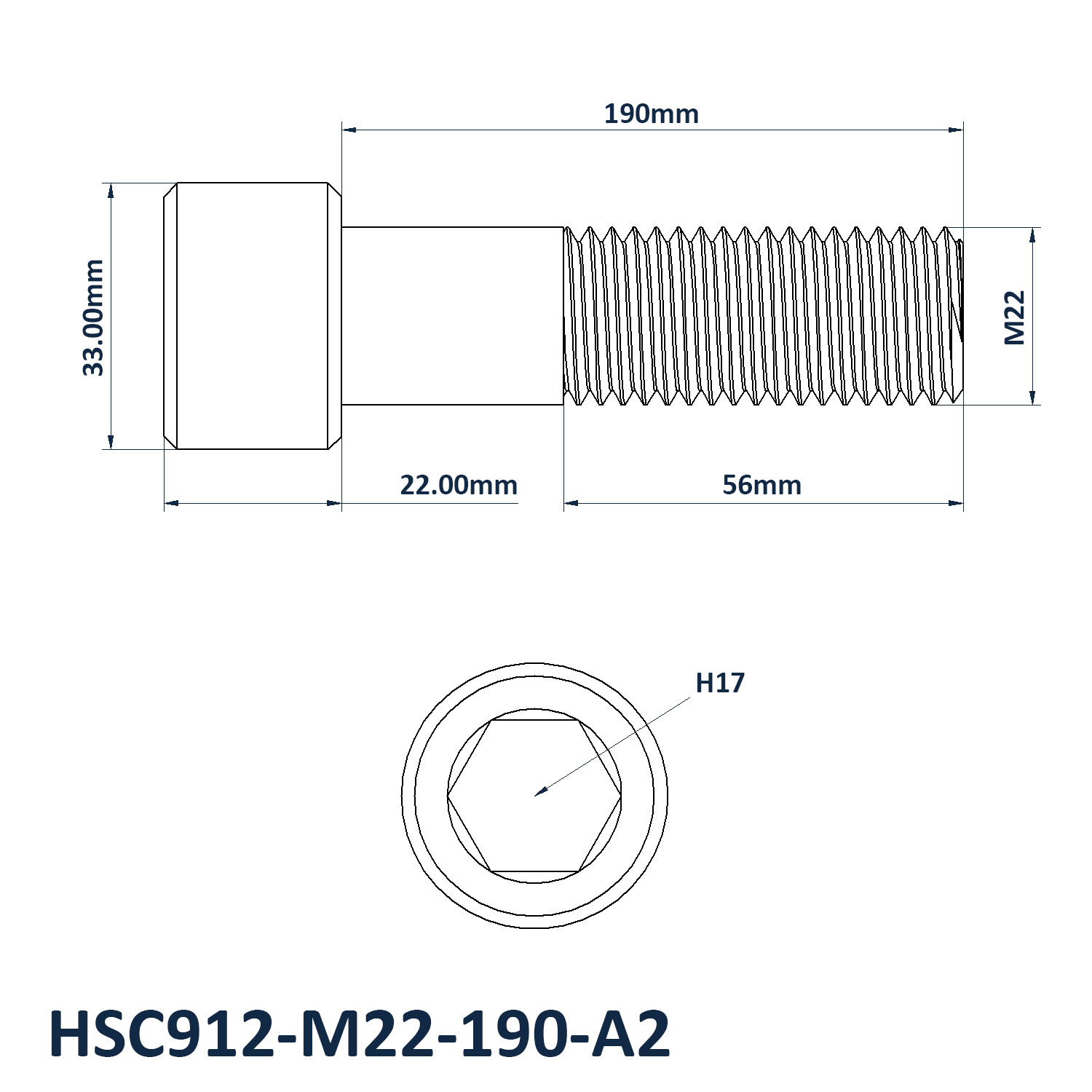

M22 x 190mm Socket Cap Screw Dimensions
- Thread Size: M22
- Length: 190mm
- Threaded Length: 56mm
- Pitch: 2.50mm
- Head Diameter: 33mm
- Head Height: 22mm
- Drive: H17
- Material: A2 Stainless Steel
- Head Style: Cap Head
- Standard: DIN 912
Fastener Selection Note
These screws are often selected for counterbored holes where the cap head can sit neatly within the component surface.
View our full Socket Cap Screws DIN 912 Range.
