M22 x 200mm Hex Socket Cap Screw (DIN 912) | A2 Stainless Steel
Product code:
HSC912-M22-200-A2
View All Specifications
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £30.38 | £36.45 |
| 50 - 99 | £24.85 | £29.82 |
| 100 + | £19.52 | £23.43 |
£36.45
/ each
Quantity:
Product Specification
| Thread Size | M22 |
| Length | 200mm |
| Threaded Length | 56mm |
| Pitch | 2.50mm |
| Head Diameter | 33.0mm |
| Head Height | 22.0mm |
| Drive | H17 |
| Head Style | Cap Head |
| Material | A2 Stainless Steel |
Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.
Frequently Bought Together
+
Total Price: £0.00
M22 x 200mm Hex Socket Cap Screw (DIN 912) | A2 Stainless Steel
Selected for material handling equipment, this M22 x 200mm counterbore cap screw helps create a strong mechanical joint where a neat cap head finish is preferred.
The combination of 33mm head diameter, 2.50mm pitch and H17 drive supports efficient installation with standard hex keys when used for mounting electrical hardware.
Common Applications
- Marine hardware installation
- Chassis component fixing
- Industrial cabinet builds
- Automation bracket mounting

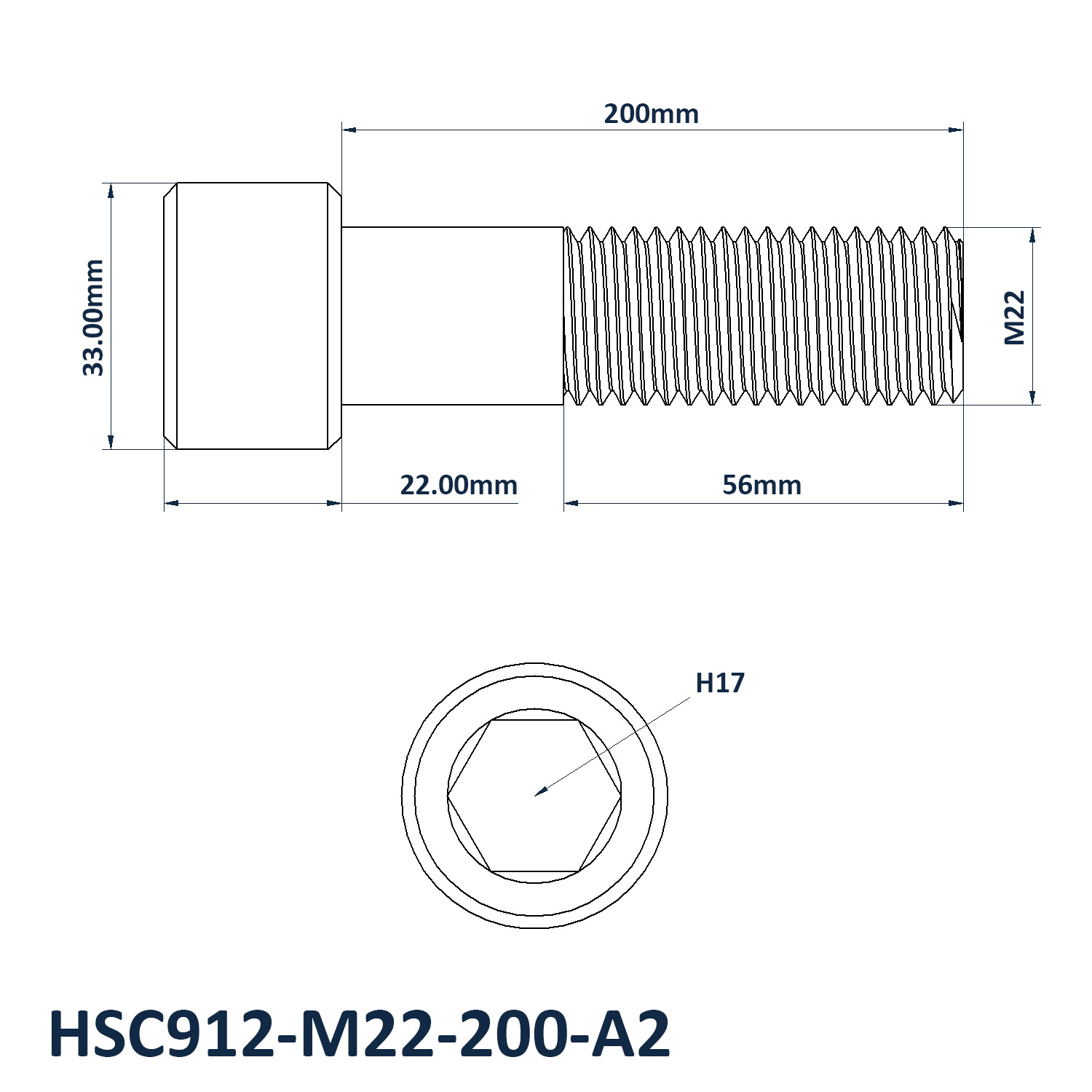

M22 x 200mm Socket Cap Screw Dimensions
- Thread Size: M22
- Length: 200mm
- Threaded Length: 56mm
- Pitch: 2.50mm
- Head Diameter: 33mm
- Head Height: 22mm
- Drive: H17
- Material: A2 Stainless Steel
- Head Style: Cap Head
- Standard: DIN 912
Fastener Selection Note
When replacing an existing fixing, match the thread size, pitch, material and drive size to the original screw specification.
View our full Socket Cap Screws DIN 912 Range.
