M22 x 75mm Hex Socket Cap Screw (DIN 912) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £14.42 | £17.30 |
| 50 - 199 | £11.79 | £14.15 |
| 200 + | £8.65 | £10.38 |
Product Specification
| Thread Size | M22 |
| Length | 75mm |
| Threaded Length | 56mm |
| Pitch | 2.50mm |
| Head Diameter | 33.0mm |
| Head Height | 22.0mm |
| Drive | H17 |
| Head Style | Cap Head |
| Material | A2 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
M22 x 75mm Hex Socket Cap Screw (DIN 912) | A2 Stainless Steel
Designed for conveyor systems, this M22 x 75mm flush counterbore screw combines a H17 hex socket with a 33mm cap head for controlled tightening into threaded components.
The A2 stainless steel equivalent to 304 construction supports durable performance in maintenance work, while the M22 thread and 75mm length make it suitable for installing motor mounts. The A2 stainless specification offers good corrosion resistance for workshop, machinery and cabinet applications. It can also be specified as a hex socket fixing where Dimensions are required.
Common Applications
- Steel bracket fastening
- Access panel fixing
- Actuator and sensor brackets
- Equipment handle mounting

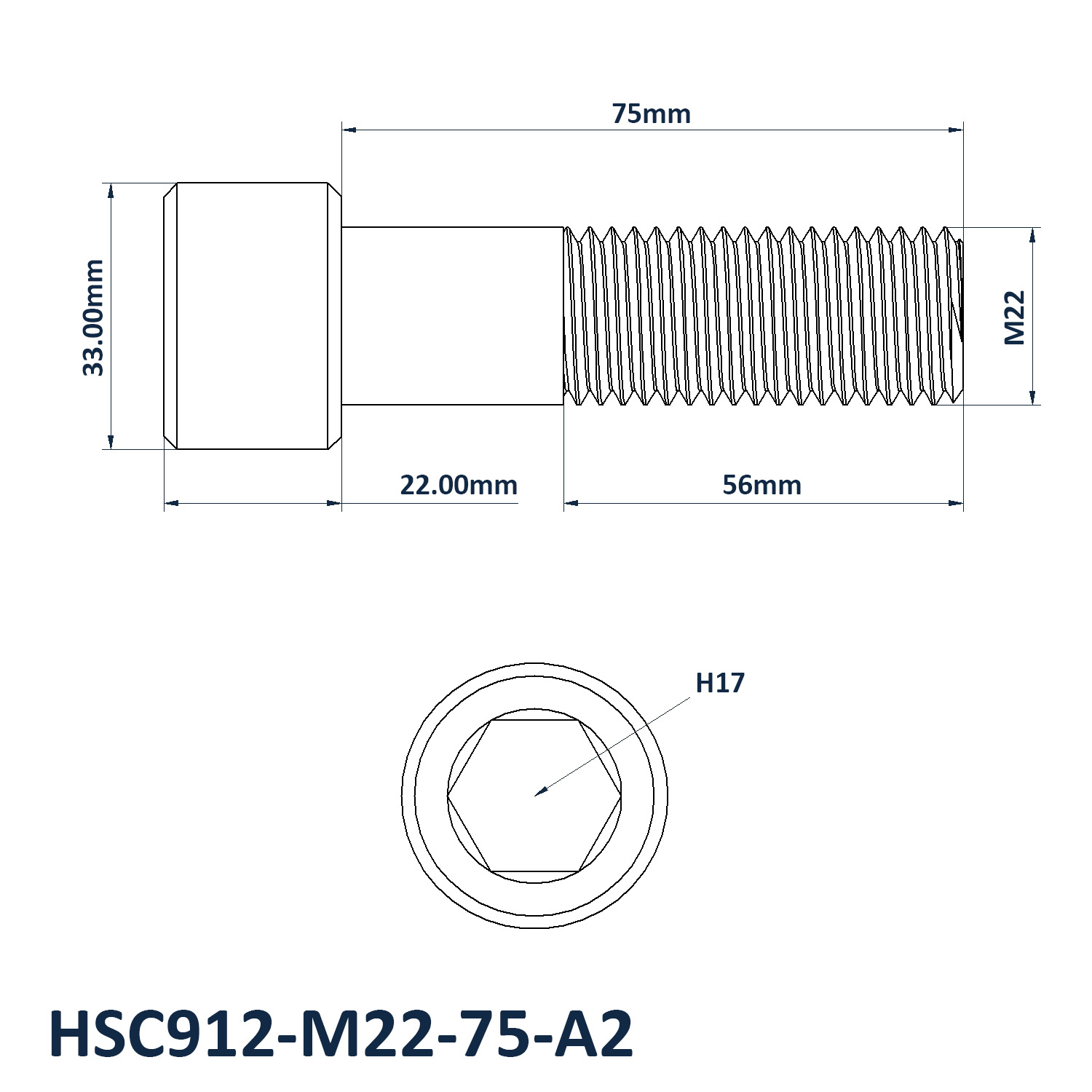

M22 x 75mm Socket Cap Screw Dimensions
- Thread Size: M22
- Length: 75mm
- Threaded Length: 56mm
- Pitch: 2.50mm
- Head Diameter: 33mm
- Head Height: 22mm
- Drive: H17
- Material: A2 Stainless Steel
- Head Style: Cap Head
- Standard: DIN 912
Fastener Selection Note
Socket cap screws are commonly chosen for threaded assemblies where an Allen key drive offers cleaner access than an external hex head.
View our full Socket Cap Screws DIN 912 Range.
