M24 x 100mm Hex Socket Cap Screw (DIN 912) | Marine Grade A4 Stainless Steel
Product code:
HSC912-M24-100-A4
View All Specifications
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £5.60 | £6.72 |
| 50 - 99 | £5.09 | £6.11 |
| 100 + | £4.67 | £5.60 |
£6.72
/ each
Quantity:
Product Specification
| Thread Size | M24 |
| Length | 100mm |
| Threaded Length | 60mm |
| Pitch | 3.00mm |
| Head Diameter | 36.0mm |
| Head Height | 24.0mm |
| Drive | H19 |
| Head Style | Cap Head |
| Material | A4 Stainless Steel |
Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.
Frequently Bought Together
+
+
Total Price: £0.00
M24 x 100mm Hex Socket Cap Screw (DIN 912) | Marine Grade A4 Stainless Steel
Developed for pump and valve assemblies, this M24 x 100mm machine cap screw gives a secure hex socket fixing with a 24mm head height for machine and equipment assemblies.
The A4 stainless steel equivalent to 316 material specification is well suited to attaching marine hardware, particularly where clean counterbored presentation is required from a compact socket head fixing. A4 stainless steel is often chosen for external, marine and washdown environments where improved corrosion resistance is needed.
Common Applications
- Material handling equipment
- Metal housing assembly
- Conveyor frame assembly
- Vehicle panel assemblies

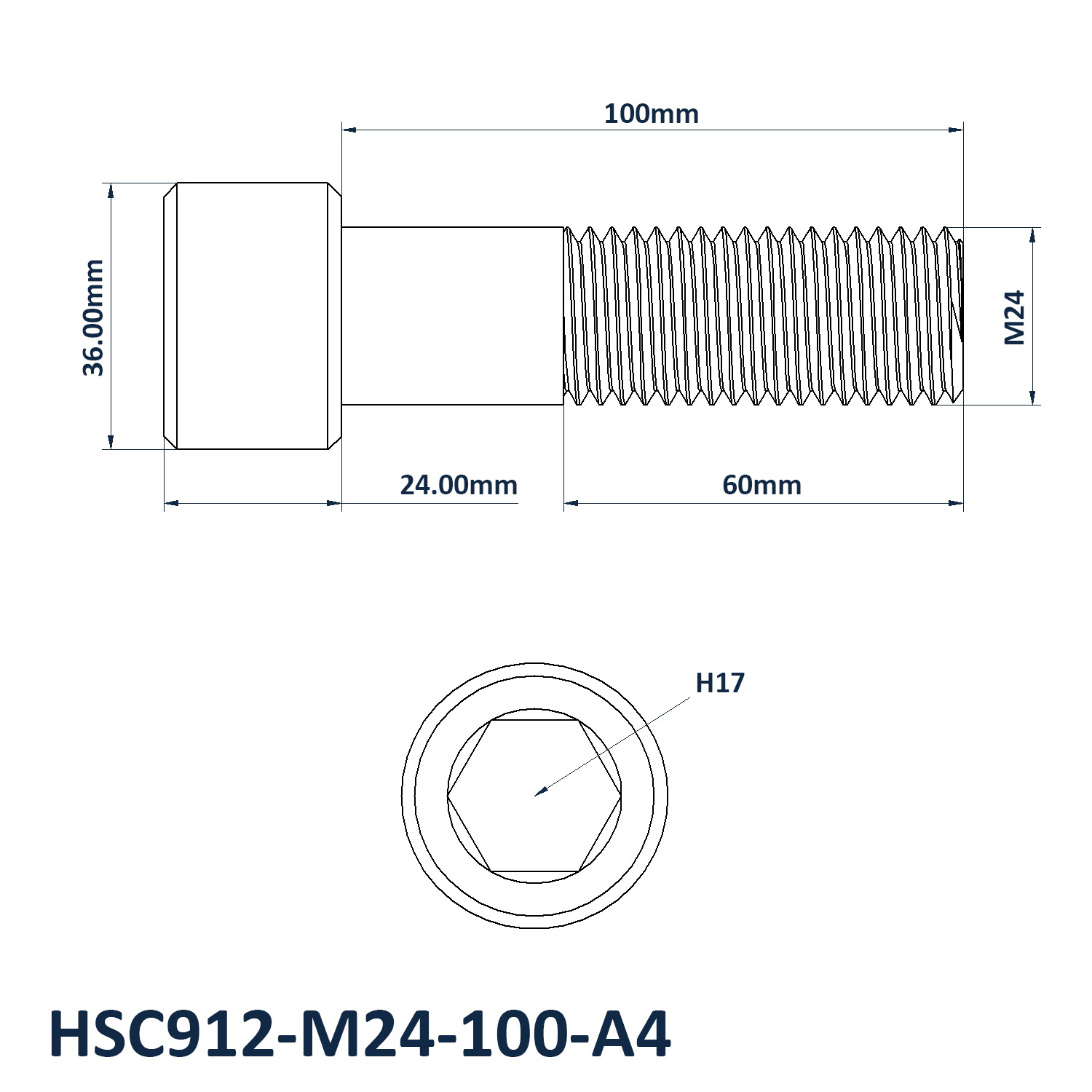

M24 x 100mm Socket Cap Screw Dimensions
- Thread Size: M24
- Length: 100mm
- Threaded Length: 60mm
- Pitch: 3.00mm
- Head Diameter: 36mm
- Head Height: 24mm
- Drive: H19
- Material: A4 Stainless Steel
- Head Style: Cap Head
- Standard: DIN 912
Fastener Selection Note
These screws are often selected for counterbored holes where the cap head can sit neatly within the component surface.
View our full Socket Cap Screws DIN 912 Range.
