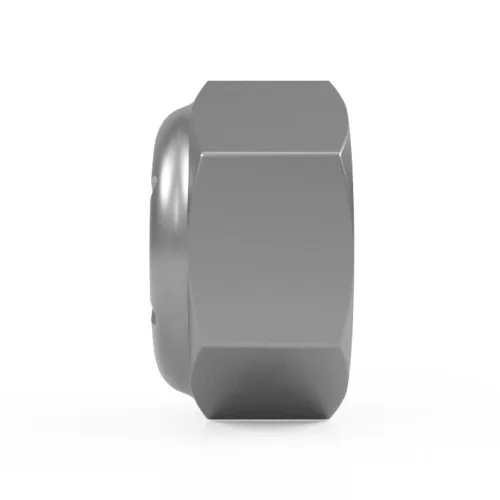

M24 Nyloc Nut (DIN 985) | Marine Grade A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £3.15 | £3.78 |
| 100 - 499 | £2.73 | £3.28 |
| 500 - 999 | £2.10 | £2.52 |
| 1000 + | £1.78 | £2.14 |
£3.78 / each
.png)
Product Specification
| Thread Size | M24 |
| Thread Pitch | 3.00mm |
| Material | A4 Stainless Steel |
| Across Flats | 36mm |
| Height | 24mm |
| Standard | DIN 985 |
Frequently Bought Together
Total Price: £0.00
M24 Thin Nyloc Hex Nut | 3.00mm Pitch | DIN 985 | A4 Stainless Steel
For construction hardware and fabricated metal components, this M24 self-locking hex nut provides a reusable self-locking fastening option with a nylon insert positioned above the metal thread. As the mating fastener passes through the insert it creates prevailing friction which helps the nut resist backing off in service. The A4 stainless steel construction provides enhanced corrosion resistance for suitable outdoor, coastal and marine fastening applications.
What Are DIN 985 Nyloc Nuts?
DIN 985 Nylon Lock Nuts use a polymer insert above the metal thread to create resistance against the mating bolt. The nut body remains metal while the nylon insert provides the locking action which makes these fasteners useful in vibration-prone mechanical assemblies.
For other thread sizes in the same compact format, see our nyloc nuts. If you need a taller nut body for greater thread engagement, compare our DIN 982 locknuts.
Common Applications
- Fabricated Metalwork: Secures compatible bolts in brackets, frames and sheet-metal assemblies where vibration resistance is useful.
- Instrumentation: Provides a compact self-locking fastening point for technical equipment and mechanical sub-assemblies.
- Construction Hardware: Helps retain compatible bolted connections on suitable fabricated components and fittings.
- Maintenance Panels: Keeps fasteners secure on removable covers and serviceable equipment subject to repeated access.
M24 DIN 985 Thin Nyloc Hex Nut Dimensions
- Thread Size: M24
- Thread Pitch: 3.00mm
- Across Flats: 36mm
- Height: 24mm
- Material: A4 Stainless Steel
- Standard: DIN 985
Key Benefits
- DIN 985 manufacture provides a recognised dimensional standard for thin nylon insert locknuts.
- Compact body height suits assemblies where a taller locknut may create clearance issues.
- M24 metric thread provides the specified fastening size.
- 36mm across-flats dimension provides the stated hex body width for tool engagement.
If you need help matching the thread size, pitch or material grade to your application, call us on 01233 713581.
