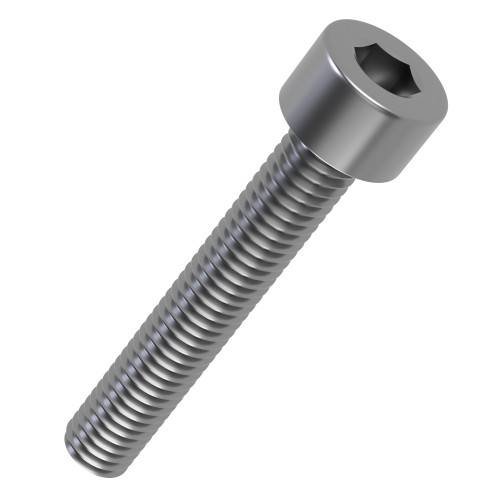

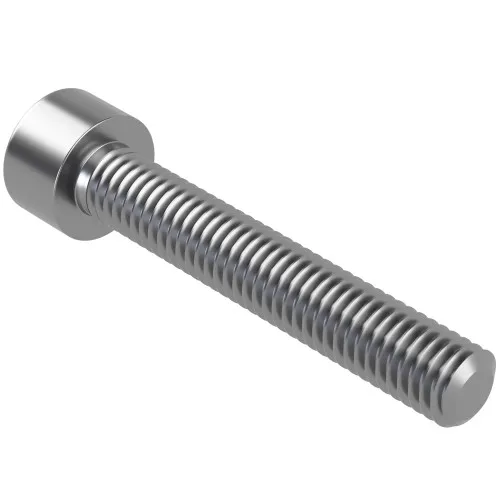

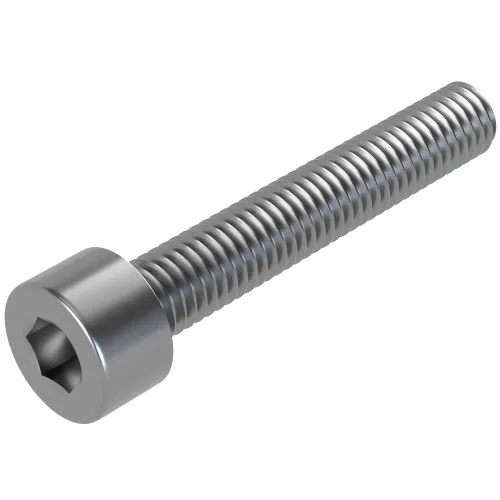

M24 x 70mm Hex Socket Cap Screw (DIN 912) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £2.76 | £3.31 |
| 50 - 99 | £2.51 | £3.01 |
| 100 + | £2.30 | £2.76 |
£3.31 / each
.png)
Product Specification
| Thread Size | M24 |
| Length | 70mm |
| Threaded Length | Fully Threaded |
| Pitch | 3.00mm |
| Head Diameter | 36.0mm |
| Head Height | 24.0mm |
| Drive | H19 |
| Head Style | Cap Head |
| Material | A2 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
M24 x 70mm Hex Socket Cap Screw (DIN 912) | A2 Stainless Steel
Designed for pump and valve assemblies, this M24 x 70mm industrial cap screw combines a H19 hex socket with a 36mm cap head for controlled tightening into threaded components.
The A2 stainless steel equivalent to 304 construction supports compact head clearance, while the M24 thread and 70mm length make it suitable for fitting access panels. For clean general-purpose stainless fastening, A2 grade provides reliable performance across many UK engineering uses. It can also be specified as a clamping screw where Dimensions are required.
Common Applications
- Display equipment hardware
- Counterbored machine joints
- Fabricated steel assemblies
- Actuator and sensor brackets

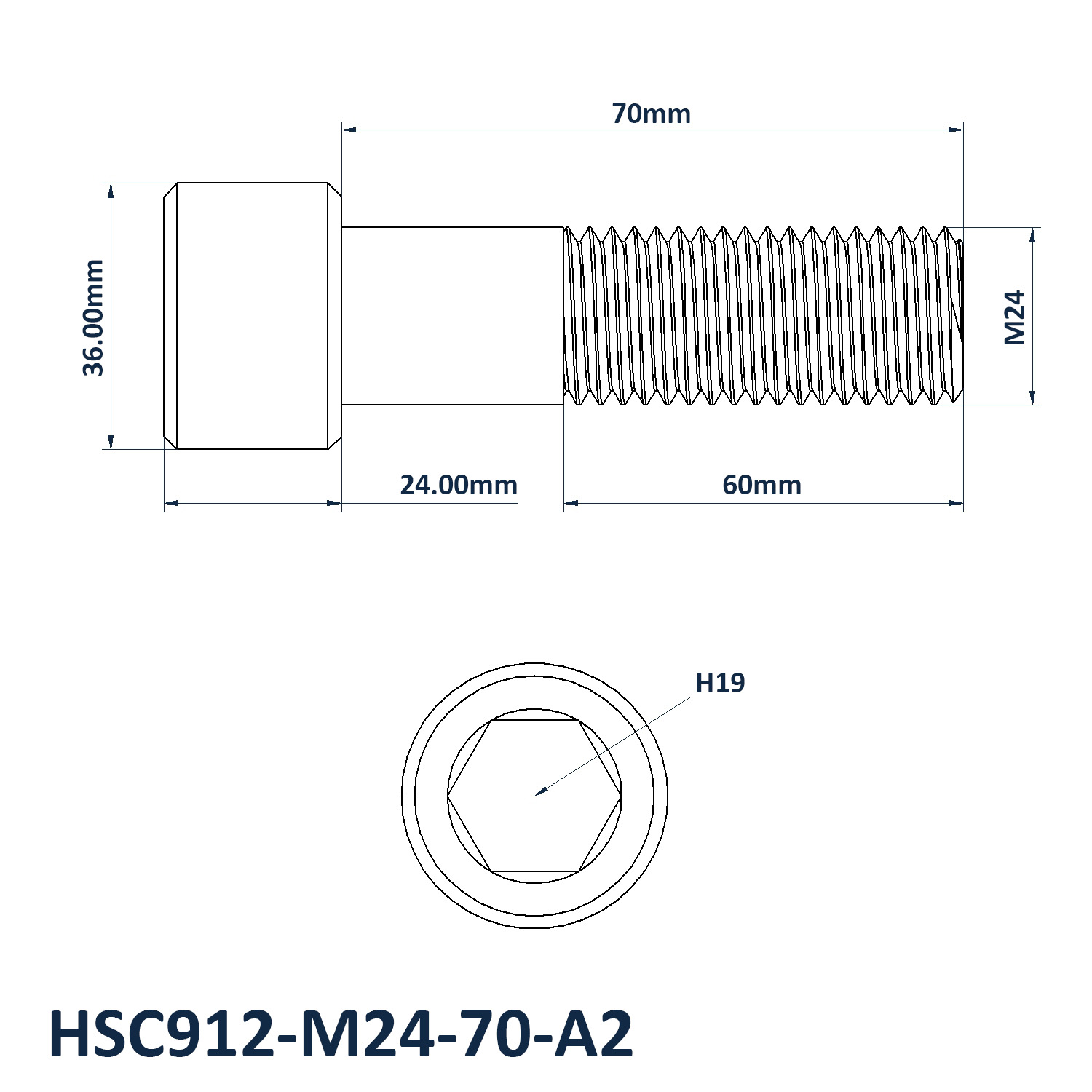

M24 x 70mm Socket Cap Screw Dimensions
- Thread Size: M24
- Length: 70mm
- Threaded Length: Fully Threaded
- Pitch: 3.00mm
- Head Diameter: 36mm
- Head Height: 24mm
- Drive: H19
- Material: A2 Stainless Steel
- Head Style: Cap Head
- Standard: DIN 912
Fastener Selection Note
Socket cap screws are commonly chosen for threaded assemblies where an Allen key drive offers cleaner access than an external hex head.
View our full Socket Cap Screws DIN 912 Range.
