M3 x 14mm Hex Socket Cap Screw (DIN 912) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 999 | £0.03 | £0.03 |
| 1000 - 4999 | £0.02 | £0.02 |
| 5000 + | £0.01 | £0.01 |
Product Specification
| Thread Size | M3 |
| Length | 14mm |
| Threaded Length | Fully Threaded |
| Pitch | 0.50mm |
| Head Diameter | 5.5mm |
| Head Height | 3.0mm |
| Drive | H2.5 |
| Head Style | Cap Head |
| Material | A2 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
M3 x 14mm Hex Socket Cap Screw (DIN 912) | A2 Stainless Steel
Designed for precision engineering, this M3 x 14mm machine cap screw combines a H2.5 hex socket with a 5.5mm cap head for controlled tightening into threaded components.
The A2 stainless steel equivalent to 304 construction supports stable fixing under vibration, while the M3 thread and 14mm length make it suitable for assembling small mechanical units. A2 stainless steel is a practical option for general industrial, equipment and indoor fabrication use. It can also be specified as a engineering screw where Dimensions are required.
Common Applications
- Machine base assembly
- Threaded component installation
- Tooling plate assembly
- Motor and pump mounting

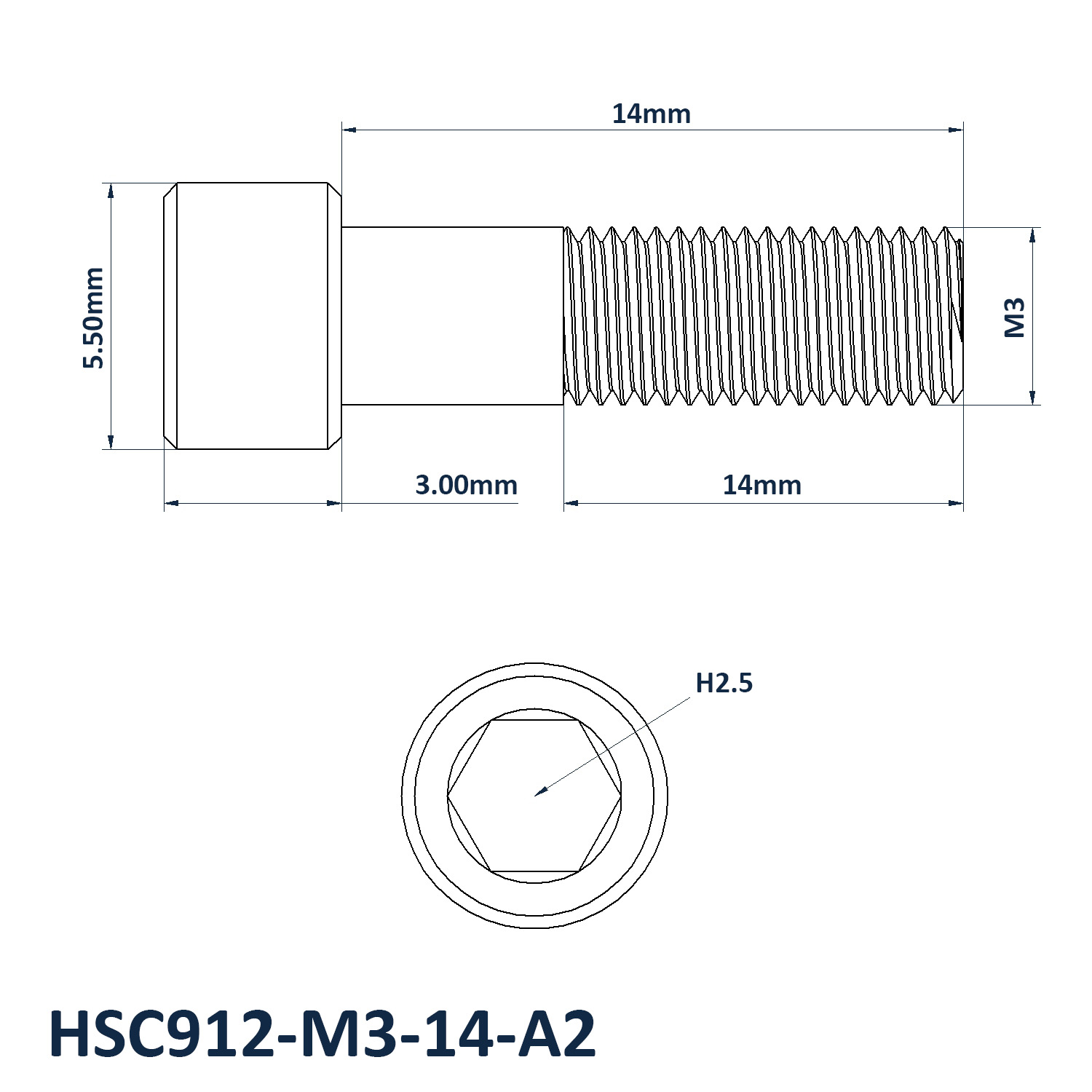

M3 x 14mm Socket Cap Screw Dimensions
- Thread Size: M3
- Length: 14mm
- Threaded Length: Fully Threaded
- Pitch: 0.50mm
- Head Diameter: 5.5mm
- Head Height: 3mm
- Drive: H2.5
- Material: A2 Stainless Steel
- Head Style: Cap Head
- Standard: DIN 912
Fastener Selection Note
Socket cap screws are commonly chosen for threaded assemblies where an Allen key drive offers cleaner access than an external hex head.
View our full Socket Cap Screws DIN 912 Range.
