M3 x 12mm Hex Socket Cap Screw (DIN 912) | Marine Grade A4 Stainless Steel
Product code:
HSC912-M3-12-A4
View All Specifications
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 999 | £0.03 | £0.04 |
| 1000 - 4999 | £0.03 | £0.03 |
| 5000 + | £0.02 | £0.02 |
£0.04
/ each
Quantity:
Product Specification
| Thread Size | M3 |
| Length | 12mm |
| Threaded Length | Fully Threaded |
| Pitch | 0.50mm |
| Head Diameter | 5.5mm |
| Head Height | 3.0mm |
| Drive | H2.5 |
| Head Style | Cap Head |
| Material | A4 Stainless Steel |
Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.
Frequently Bought Together
+
+
Total Price: £0.00
M3 x 12mm Hex Socket Cap Screw (DIN 912) | Marine Grade A4 Stainless Steel
Selected for jig and fixture builds, this M3 x 12mm A4 DIN 912 cap screw helps create a strong mechanical joint where a neat cap head finish is preferred.
The combination of 5.5mm head diameter, 0.50mm pitch and H2.5 drive supports good load transfer under the cap head when used for securing metal housings.
Common Applications
- Inspection station hardware
- Fabrication workshop projects
- Rail maintenance fixtures
- Aluminium profile assembly

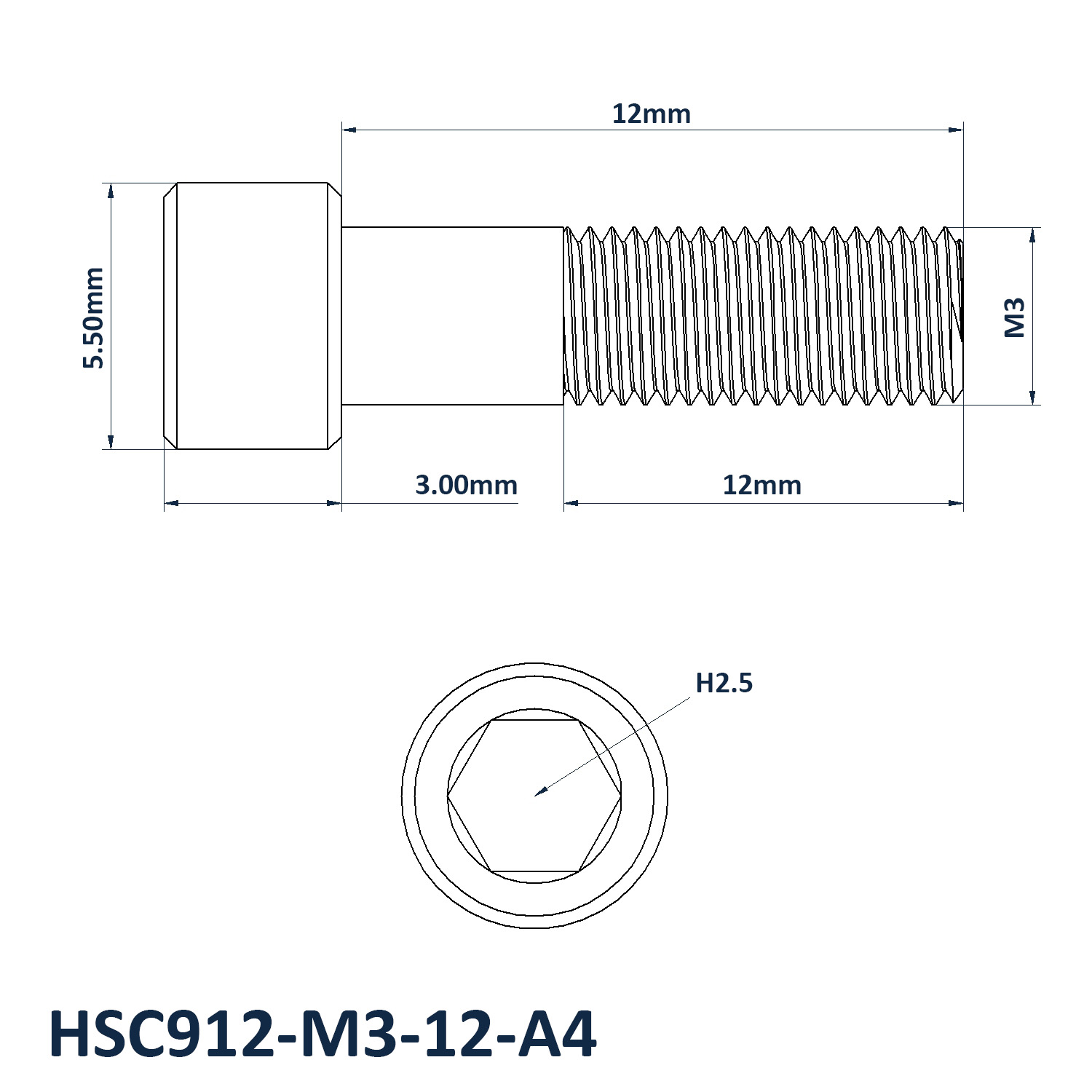

M3 x 12mm Socket Cap Screw Dimensions
- Thread Size: M3
- Length: 12mm
- Threaded Length: Fully Threaded
- Pitch: 0.50mm
- Head Diameter: 5.5mm
- Head Height: 3mm
- Drive: H2.5
- Material: A4 Stainless Steel
- Head Style: Cap Head
- Standard: DIN 912
Fastener Selection Note
When replacing an existing fixing, match the thread size, pitch, material and drive size to the original screw specification.
View our full Socket Cap Screws DIN 912 Range.
