M3 x 25mm Hex Socket Cap Screw (DIN 912) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 999 | £0.03 | £0.03 |
| 1000 - 4999 | £0.02 | £0.02 |
| 5000 + | £0.01 | £0.01 |
Product Specification
| Thread Size | M3 |
| Length | 25mm |
| Threaded Length | 18mm |
| Pitch | 0.50mm |
| Head Diameter | 5.5mm |
| Head Height | 3.0mm |
| Drive | H2.5 |
| Head Style | Cap Head |
| Material | A2 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
M3 x 25mm Hex Socket Cap Screw (DIN 912) | A2 Stainless Steel
Designed for laboratory equipment, this M3 x 25mm precision cap screw combines a H2.5 hex socket with a 5.5mm cap head for controlled tightening into threaded components.
The A2 stainless steel equivalent to 304 construction supports clean finish in counterbored holes, while the M3 thread and 25mm length make it suitable for joining structural frames. The A2 stainless specification offers good corrosion resistance for workshop, machinery and cabinet applications. It can also be specified as a metric socket screw where Dimensions are required.
Common Applications
- Fabricated steel assemblies
- HVAC equipment panels
- Jig and fixture manufacture
- Plant machinery service work

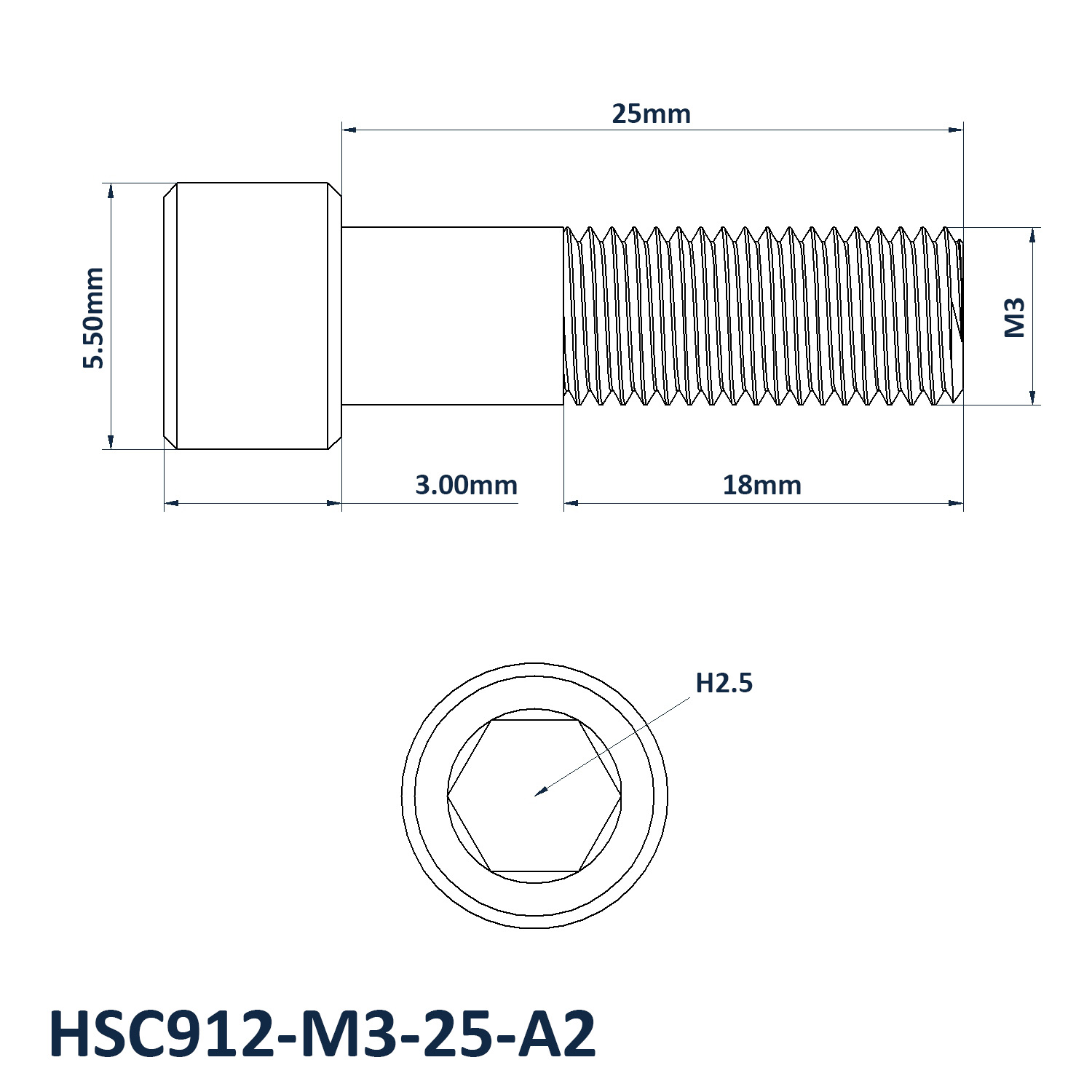

M3 x 25mm Socket Cap Screw Dimensions
- Thread Size: M3
- Length: 25mm
- Threaded Length: 18mm
- Pitch: 0.50mm
- Head Diameter: 5.5mm
- Head Height: 3mm
- Drive: H2.5
- Material: A2 Stainless Steel
- Head Style: Cap Head
- Standard: DIN 912
Fastener Selection Note
Socket cap screws are commonly chosen for threaded assemblies where an Allen key drive offers cleaner access than an external hex head.
View our full Socket Cap Screws DIN 912 Range.
