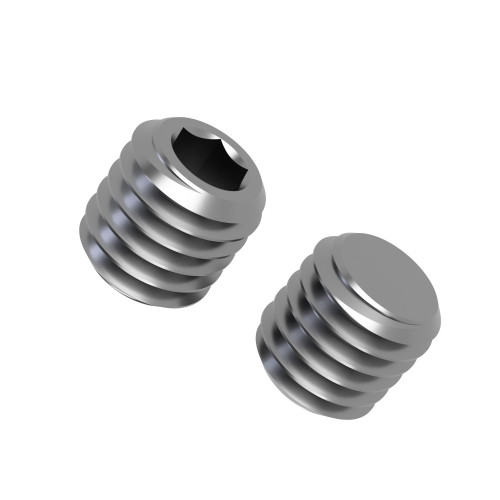

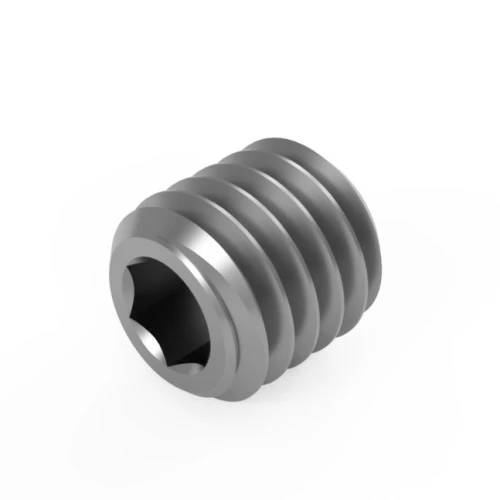

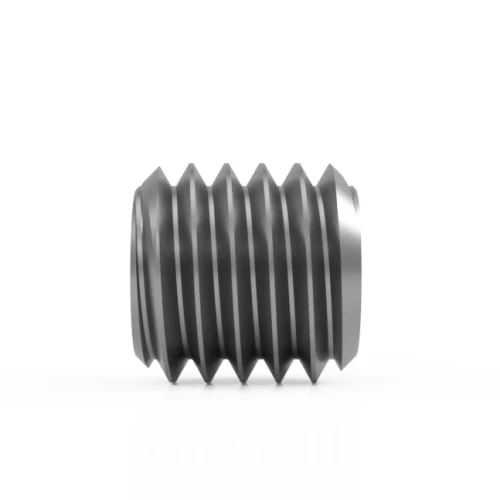

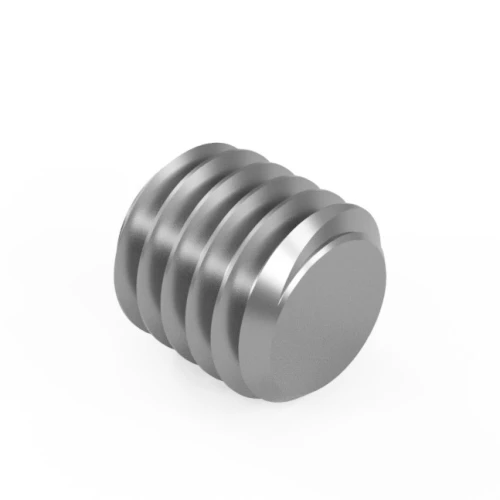

M10 x 10mm Socket Grub Screw - Flat Point (DIN 913) | Marine Grade A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.12 | £0.14 |
| 100 - 499 | £0.10 | £0.12 |
| 500 - 999 | £0.08 | £0.10 |
| 1000 - 4999 | £0.07 | £0.09 |
| 5000 + | £0.07 | £0.08 |
£0.14 / each
.png)
Product Specification
| Thread Size | M10 |
| Length | 10.0mm |
| Pitch | 1.50mm |
| End Type | Flat |
| Drive | H5 |
| Standard | DIN 913 / ISO 4026 |
| Material | A4 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
M10 x 10mm Flat Point Socket Grub Screw | H5 Drive | A4 Stainless Steel
Designed for pulley and belt drive assembly, this M10 x 10mm DIN 913 grub screw gives engineers a neat way to lock parts in position. The flat end type spreads contact across the mating face while the H5 drive supports controlled tightening with a hex key. Engineers often select this headless set screw when supports accurate belt alignment during machine set-up in pulleys, belt wheels and small transmission parts.
The A4 stainless grade is suited to demanding corrosion-resistant assemblies where long-term reliability matters more than the lowest component cost. The flat point design is especially useful when the retained part may need to be repositioned because the end sits evenly against the contact face. It is a good option for buyers comparing corrosion-resistant grub screws for harsher service conditions.
Common Applications
- Pulleys, belt wheels and small transmission parts using a M10 x 10mm flat point set screw
- Inspection gauges and calibration fixtures
- Furniture or display hardware requiring concealed fixing
- Light engineering assemblies with removable set points
Key Features and Benefits
- Headless profile is ideal where the outer face must remain smooth or unobstructed
- Flat tip provides stable seating against a shaft, plate or internal stop surface
- Precise metric sizing supports replacement work on equipment already using DIN 913 screws
- Supplied in practical sizes for engineering, repair and small batch manufacture

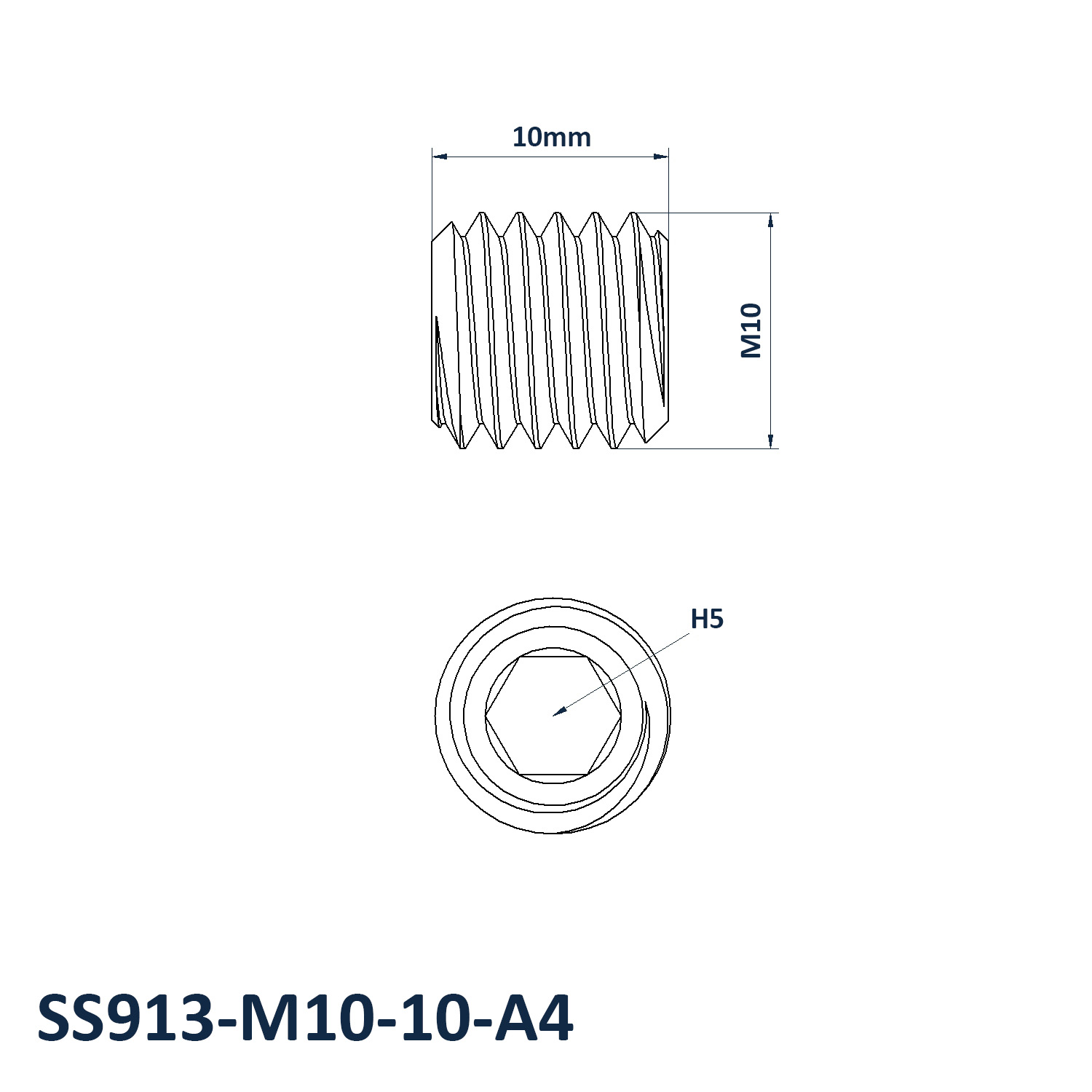

M10 x 10mm A4 Stainless Steel Flat Point Socket Grub Screw Dimensions
- Thread Size: M10
- Length: 10mm
- Pitch: 1.50mm
- End Type: Flat
- Drive: H5
- Material: A4 Stainless Steel
- Colour: Self-colour
- Standard: DIN 913 / ISO 4026
