M10 x 14mm Socket Grub Screw - Flat Point (DIN 913) | Marine Grade A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.30 | £0.36 |
| 100 - 499 | £0.25 | £0.30 |
| 500 - 999 | £0.22 | £0.26 |
| 1000 - 4999 | £0.19 | £0.23 |
| 5000 + | £0.17 | £0.20 |
£0.36 / each
.png)
Product Specification
| Thread Size | M10 |
| Length | 14.0mm |
| Pitch | 1.50mm |
| End Type | Flat |
| Drive | H5 |
| Standard | DIN 913 / ISO 4026 |
| Material | A4 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
M10 x 14mm Flat Point Socket Grub Screw | H5 Drive | A4 Stainless Steel
This M10 x 14mm Allen key grub screw is a useful headless fixing for robotics and automation. The flat end type is selected where broad contact is preferred over a cup or cone point, helping reduce marking on the retained component. As a stainless grub screw, it is well suited to robot cells, sensor brackets and actuator mounts because it keeps compact assemblies clear of protruding screw heads.
Manufactured from A4 stainless steel, this flat point grub screw is appropriate for coastal, chemical-adjacent and wet area applications when used with compatible parts. The flat point design is especially useful when the retained part may need to be repositioned because the end sits evenly against the contact face. It is a good option for buyers comparing corrosion-resistant grub screws for harsher service conditions.
Common Applications
- Robot cells, sensor brackets and actuator mounts using a M10 x 14mm flat point set screw
- Locking pulleys and gear hubs on compatible shafts
- Holding stop blocks inside jigs and fixtures
- Flush fastening in machined assemblies
Key Features and Benefits
- Headless profile is ideal where the outer face must remain smooth or unobstructed
- Flat tip provides stable seating against a shaft, plate or internal stop surface
- Precise metric sizing supports replacement work on equipment already using DIN 913 screws
- Supplied in practical sizes for engineering, repair and small batch manufacture

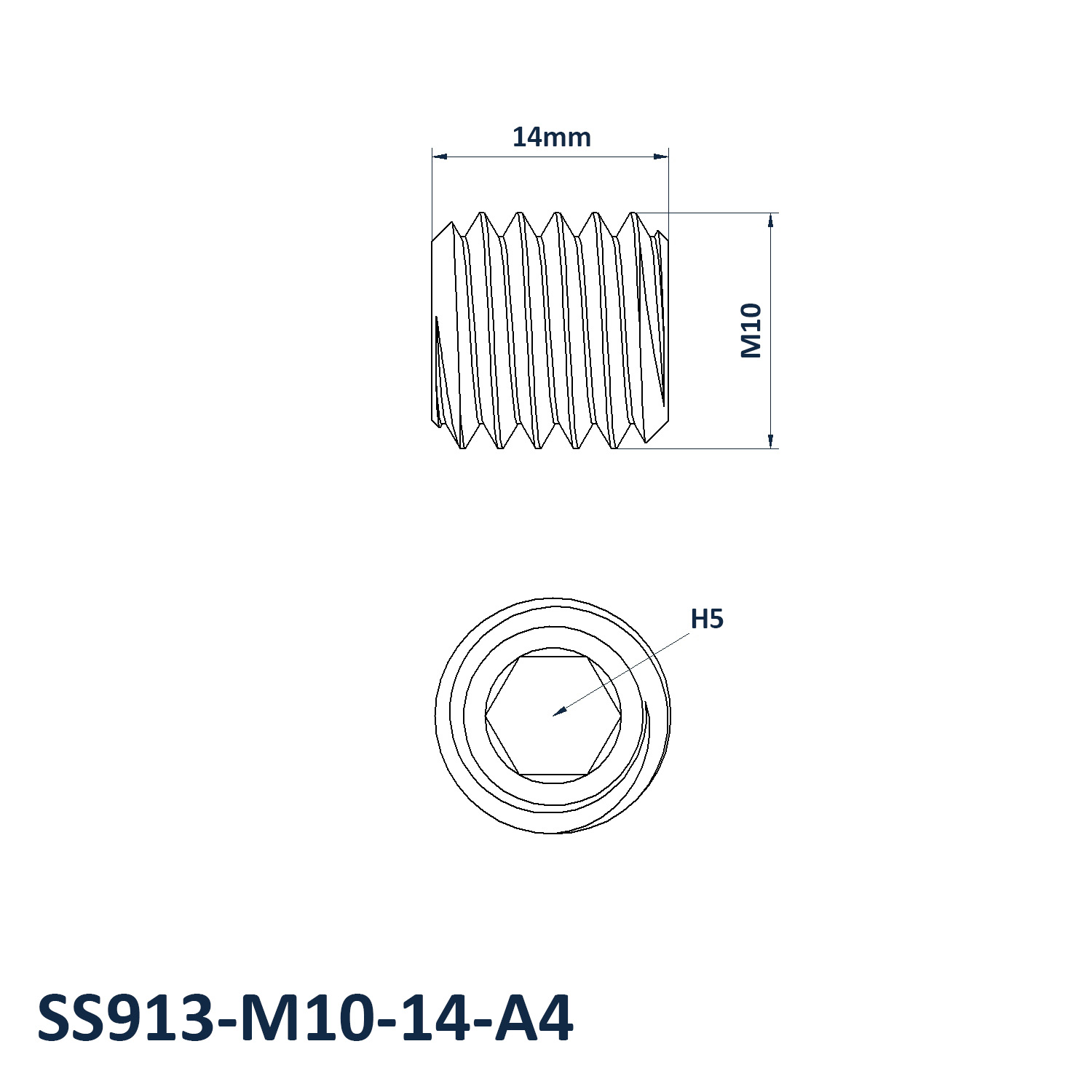

M10 x 14mm A4 Stainless Steel Flat Point Socket Grub Screw Dimensions
- Thread Size: M10
- Length: 14mm
- Pitch: 1.50mm
- End Type: Flat
- Drive: H5
- Material: A4 Stainless Steel
- Colour: Self-colour
- Standard: DIN 913 / ISO 4026
