M12 x 12mm Socket Grub Screw - Flat Point (DIN 913) | Marine Grade A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.36 | £0.43 |
| 100 - 499 | £0.30 | £0.36 |
| 500 - 999 | £0.26 | £0.31 |
| 1000 - 4999 | £0.23 | £0.27 |
| 5000 + | £0.20 | £0.24 |
£0.43 / each
.png)
Product Specification
| Thread Size | M12 |
| Length | 12.0mm |
| Pitch | 1.75mm |
| End Type | Flat |
| Drive | H6 |
| Standard | DIN 913 / ISO 4026 |
| Material | A4 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
M12 x 12mm Flat Point Socket Grub Screw | H6 Drive | A4 Stainless Steel
Built around the DIN 913 / ISO 4026 standard, this M12 x 12mm socket set screw is suited to inspection station builds. It combines a compact threaded body with a flat point for reliable seating inside collars, hubs and adjustable parts. Engineers often select this headless set screw when supports neat retention where access is limited in measuring fixtures, gauges and inspection benches.
The A4 stainless grade is suited to demanding corrosion-resistant assemblies where long-term reliability matters more than the lowest component cost. Because the screw is headless, it can be recessed into a threaded component to reduce snagging and keep the surrounding assembly clear. It is a good option for buyers comparing corrosion-resistant grub screws for harsher service conditions.
Common Applications
- Measuring fixtures, gauges and inspection benches using a M12 x 12mm flat point set screw
- Packaging machinery change parts and format tooling
- Workshop repair of brackets, hubs and levers
- General DIN 913 set screw replacement
Key Features and Benefits
- Flat point helps distribute load on the contact face rather than biting sharply into the retained part
- Headless body can sit below the surface for clean mechanical assemblies
- H6 socket gives controlled Allen key installation in restricted spaces
- DIN 913 / ISO 4026 manufacture supports repeatable sizing across maintenance and OEM requirements

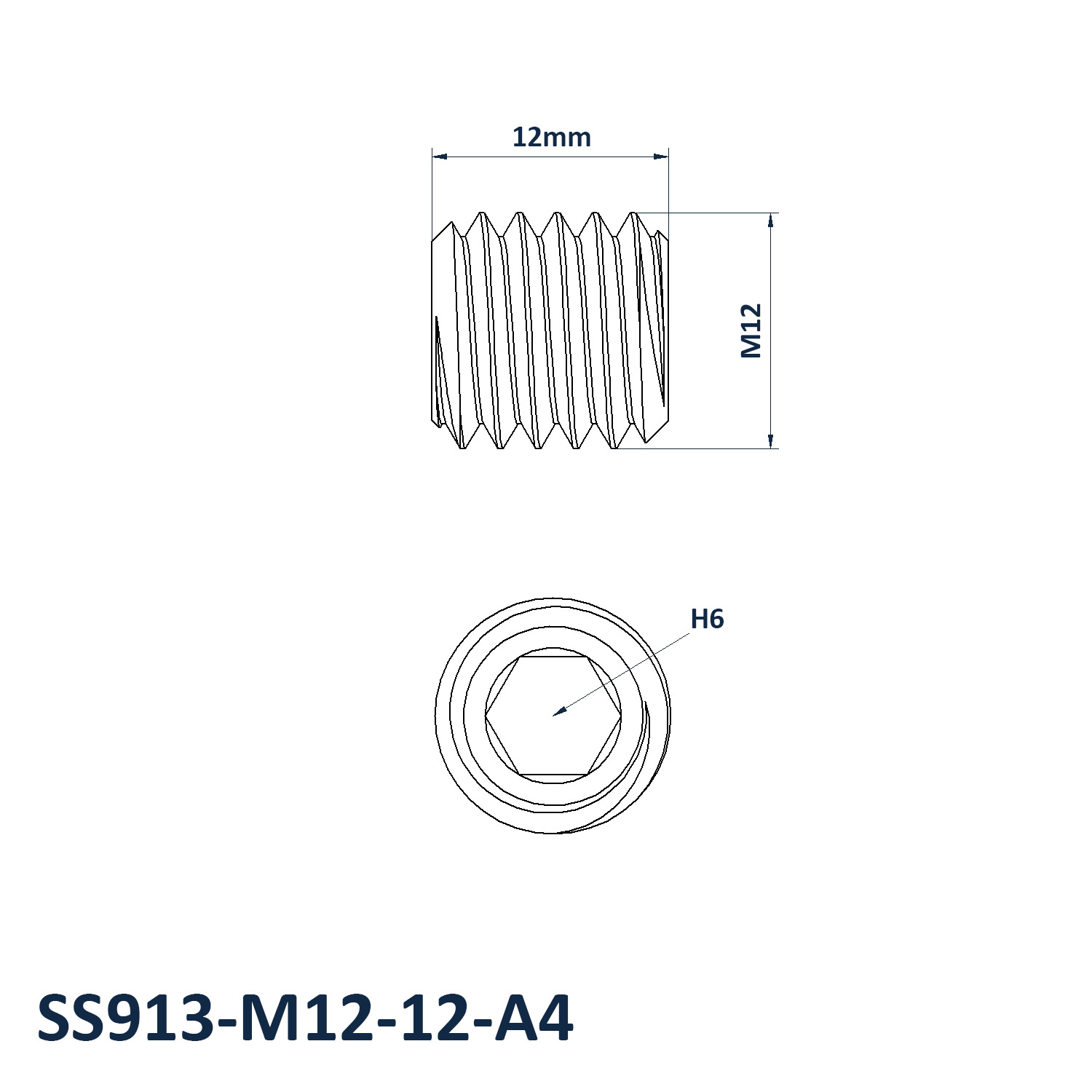

M12 x 12mm A4 Stainless Steel Flat Point Socket Grub Screw Dimensions
- Thread Size: M12
- Length: 12mm
- Pitch: 1.75mm
- End Type: Flat
- Drive: H6
- Material: A4 Stainless Steel
- Colour: Self-colour
- Standard: DIN 913 / ISO 4026
Further Reading
View our full range of Socket Grub Screw Flat DIN 913 here: Socket Grub Screw Flat DIN 913.
