M12 x 16mm Socket Grub Screw - Flat Point (DIN 913) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.20 | £0.24 |
| 100 - 499 | £0.17 | £0.20 |
| 500 - 999 | £0.15 | £0.18 |
| 1000 - 4999 | £0.12 | £0.15 |
| 5000 + | £0.11 | £0.13 |
Product Specification
| Thread Size | M12 |
| Length | 16.0mm |
| Pitch | 1.75mm |
| End Type | Flat |
| Drive | H6 |
| Standard | DIN 913 / ISO 4026 |
| Material | A2 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
M12 x 16mm Flat Point Socket Grub Screw | H6 Drive | A2 Stainless Steel
The M12 x 16mm flat point socket grub screw is a compact headless fastener for marine equipment interiors. Its H6 socket, 1.75mm pitch and DIN 913 / ISO 4026 form make it suitable where a flush set screw needs to hold a component without projecting above the surface. It is a practical hex socket set screw for stainless hardware, deck-adjacent fittings and cabin equipment where is suited to corrosion-aware assemblies when the material grade is chosen correctly.
A2 stainless steel offers good corrosion resistance for general engineering, equipment builds and many external environments away from severe chloride exposure. The combination of a flat point, metric thread and socket drive gives a controlled fixing for assemblies that need repeatable setting and removal. It is well suited to general stainless grub screw requirements across manufacturing and maintenance teams.
Common Applications
- Stainless hardware, deck-adjacent fittings and cabin equipment using a M12 x 16mm flat point set screw
- Pump and valve actuator components
- Fabricated frame adjustment points
- Toolmaking blocks and fixture stops
Key Features and Benefits
- Designed for flush fastening in machined housings and adjustable mechanisms
- Simple hex key operation makes removal and repositioning straightforward
- DIN 913 / ISO 4026 standard helps match existing technical drawings and parts lists
- Material selection helps buyers choose between stainless corrosion resistance and BZP value

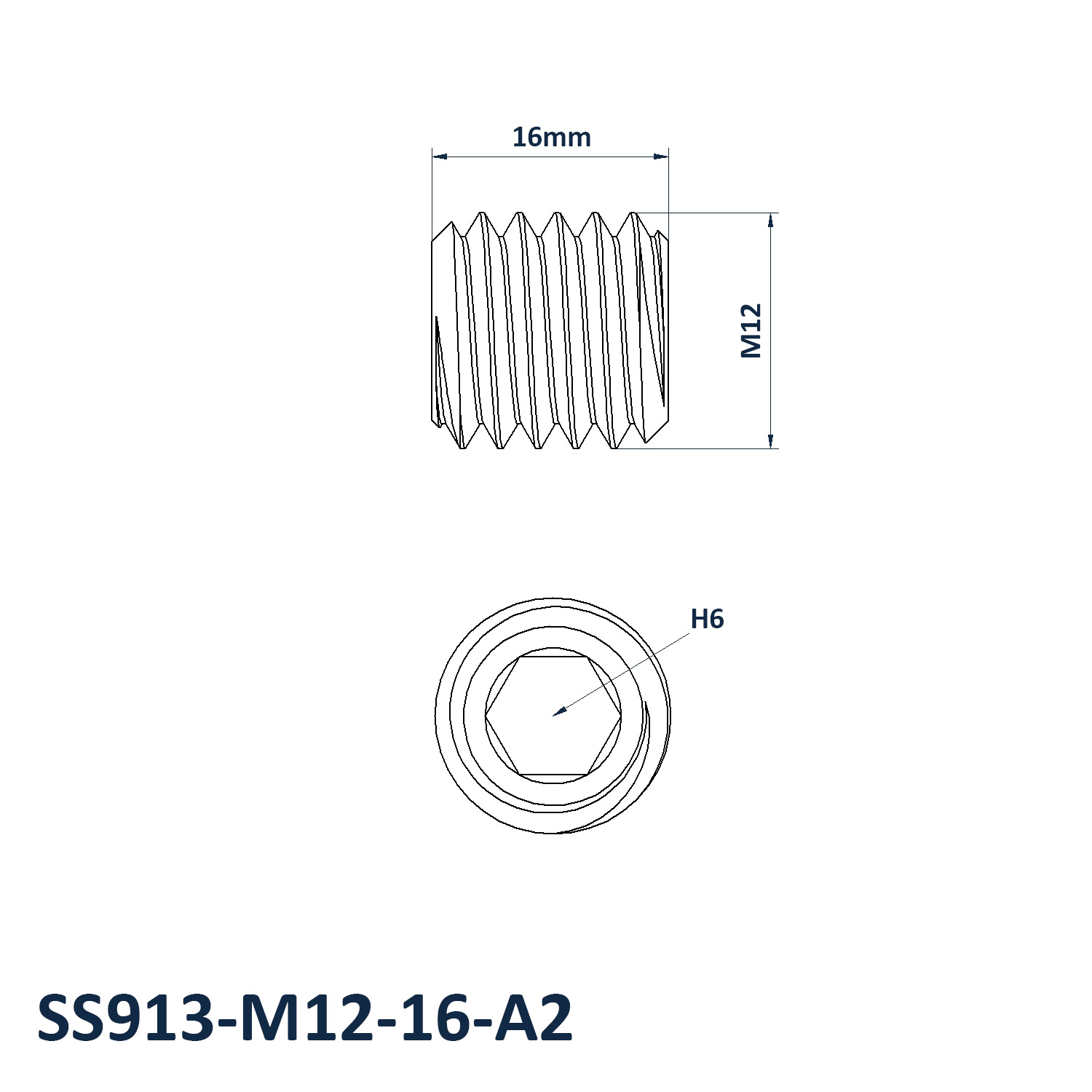

M12 x 16mm A2 Stainless Steel Flat Point Socket Grub Screw Dimensions
- Thread Size: M12
- Length: 16mm
- Pitch: 1.75mm
- End Type: Flat
- Drive: H6
- Material: A2 Stainless Steel
- Colour: Self-colour
- Standard: DIN 913 / ISO 4026
