M12 x 25mm Socket Grub Screw - Flat Point (DIN 913) | Marine Grade A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.61 | £0.73 |
| 100 - 499 | £0.51 | £0.61 |
| 500 - 999 | £0.44 | £0.53 |
| 1000 - 4999 | £0.38 | £0.46 |
| 5000 + | £0.34 | £0.41 |
Product Specification
| Thread Size | M12 |
| Length | 25.0mm |
| Pitch | 1.75mm |
| End Type | Flat |
| Drive | H6 |
| Standard | DIN 913 / ISO 4026 |
| Material | A4 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
M12 x 25mm Flat Point Socket Grub Screw | H6 Drive | A4 Stainless Steel
Built around the DIN 913 / ISO 4026 standard, this M12 x 25mm socket set screw is suited to electrical enclosure builds. It combines a compact threaded body with a flat point for reliable seating inside collars, hubs and adjustable parts. This makes it useful as a flat point grub screw in hinge blocks, mounting rails and enclosure accessories where keeps internal fixings compact around panels and covers.
A4 stainless steel gives enhanced corrosion performance for exposed equipment, stainless assemblies and maintenance work in aggressive service conditions. Because the screw is headless, it can be recessed into a threaded component to reduce snagging and keep the surrounding assembly clear. It is a good option for buyers comparing corrosion-resistant grub screws for harsher service conditions.
Common Applications
- Hinge blocks, mounting rails and enclosure accessories using a M12 x 25mm flat point set screw
- Inspection gauges and calibration fixtures
- Furniture or display hardware requiring concealed fixing
- Light engineering assemblies with removable set points
Key Features and Benefits
- Flat point helps distribute load on the contact face rather than biting sharply into the retained part
- Headless body can sit below the surface for clean mechanical assemblies
- H6 socket gives controlled Allen key installation in restricted spaces
- DIN 913 / ISO 4026 manufacture supports repeatable sizing across maintenance and OEM requirements

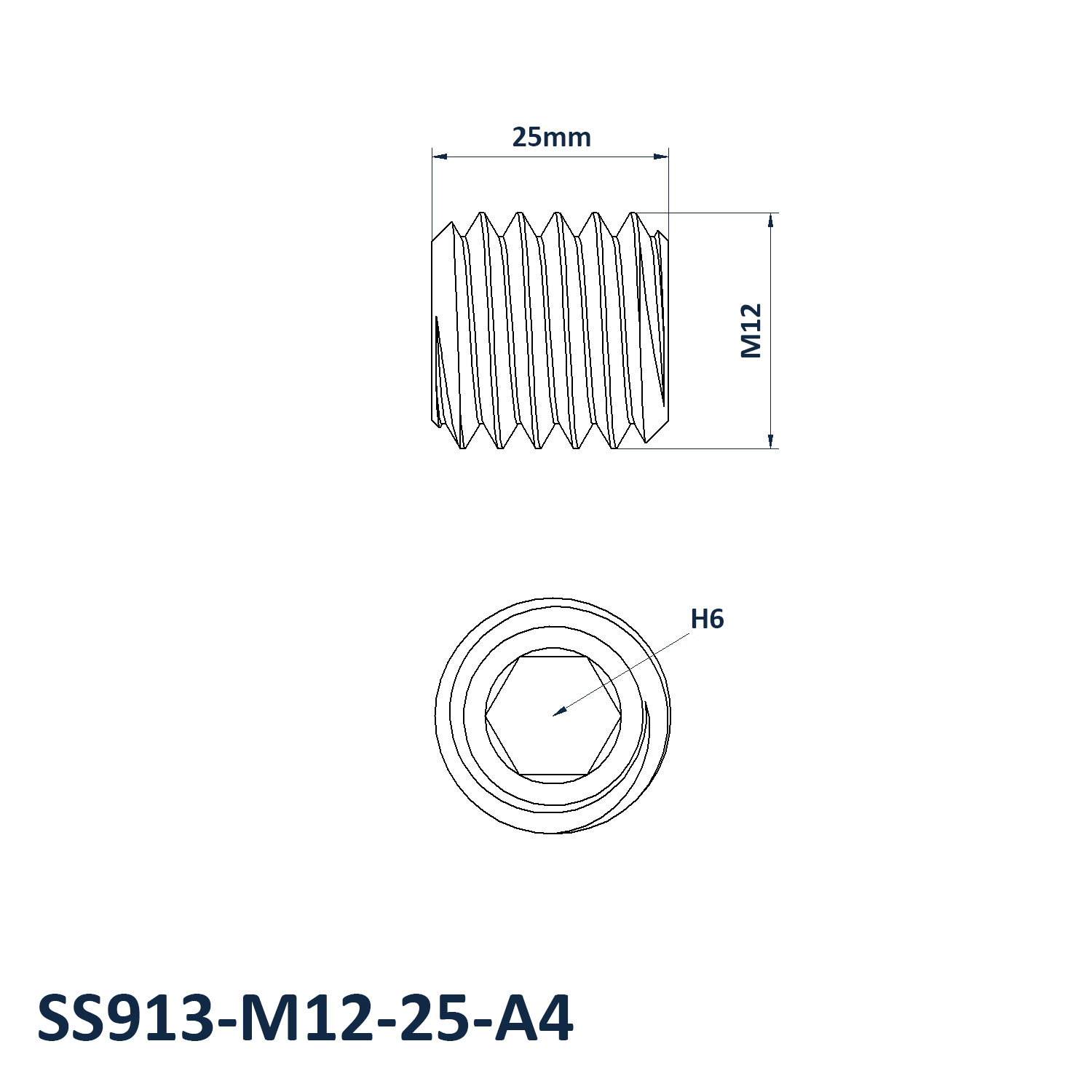

M12 x 25mm A4 Stainless Steel Flat Point Socket Grub Screw Dimensions
- Thread Size: M12
- Length: 25mm
- Pitch: 1.75mm
- End Type: Flat
- Drive: H6
- Material: A4 Stainless Steel
- Colour: Self-colour
- Standard: DIN 913 / ISO 4026
