M2 x 12mm Socket Grub Screw - Flat Point (DIN 913) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.11 | £0.13 |
| 100 - 499 | £0.09 | £0.11 |
| 500 - 999 | £0.08 | £0.10 |
| 1000 - 4999 | £0.07 | £0.08 |
| 5000 + | £0.06 | £0.07 |
Product Specification
| Thread Size | M2 |
| Length | 12.0mm |
| Pitch | 0.40mm |
| End Type | Flat |
| Drive | H0.9 |
| Standard | DIN 913 / ISO 4026 |
| Material | A2 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
M2 x 12mm Flat Point Socket Grub Screw | H0.9 Drive | A2 Stainless Steel
Designed for pulley and belt drive assembly, this M2 x 12mm DIN 913 grub screw gives engineers a neat way to lock parts in position. The flat end type spreads contact across the mating face while the H0.9 drive supports controlled tightening with a hex key. This makes it useful as a shaft collar grub screw in pulleys, belt wheels and small transmission parts where supports accurate belt alignment during machine set-up.
A2 stainless steel helps protect the fixing from rust in workshop, production and general outdoor settings when matched to the correct mating material. The flat point design is especially useful when the retained part may need to be repositioned because the end sits evenly against the contact face. It is well suited to general stainless grub screw requirements across manufacturing and maintenance teams.
Common Applications
- Pulleys, belt wheels and small transmission parts using a M2 x 12mm flat point set screw
- Food processing machinery brackets and stops
- Laboratory frames and instrument housings
- Stainless mechanical assemblies needing a flush screw
Key Features and Benefits
- Designed for flush fastening in machined housings and adjustable mechanisms
- Simple hex key operation makes removal and repositioning straightforward
- DIN 913 / ISO 4026 standard helps match existing technical drawings and parts lists
- Material selection helps buyers choose between stainless corrosion resistance and BZP value

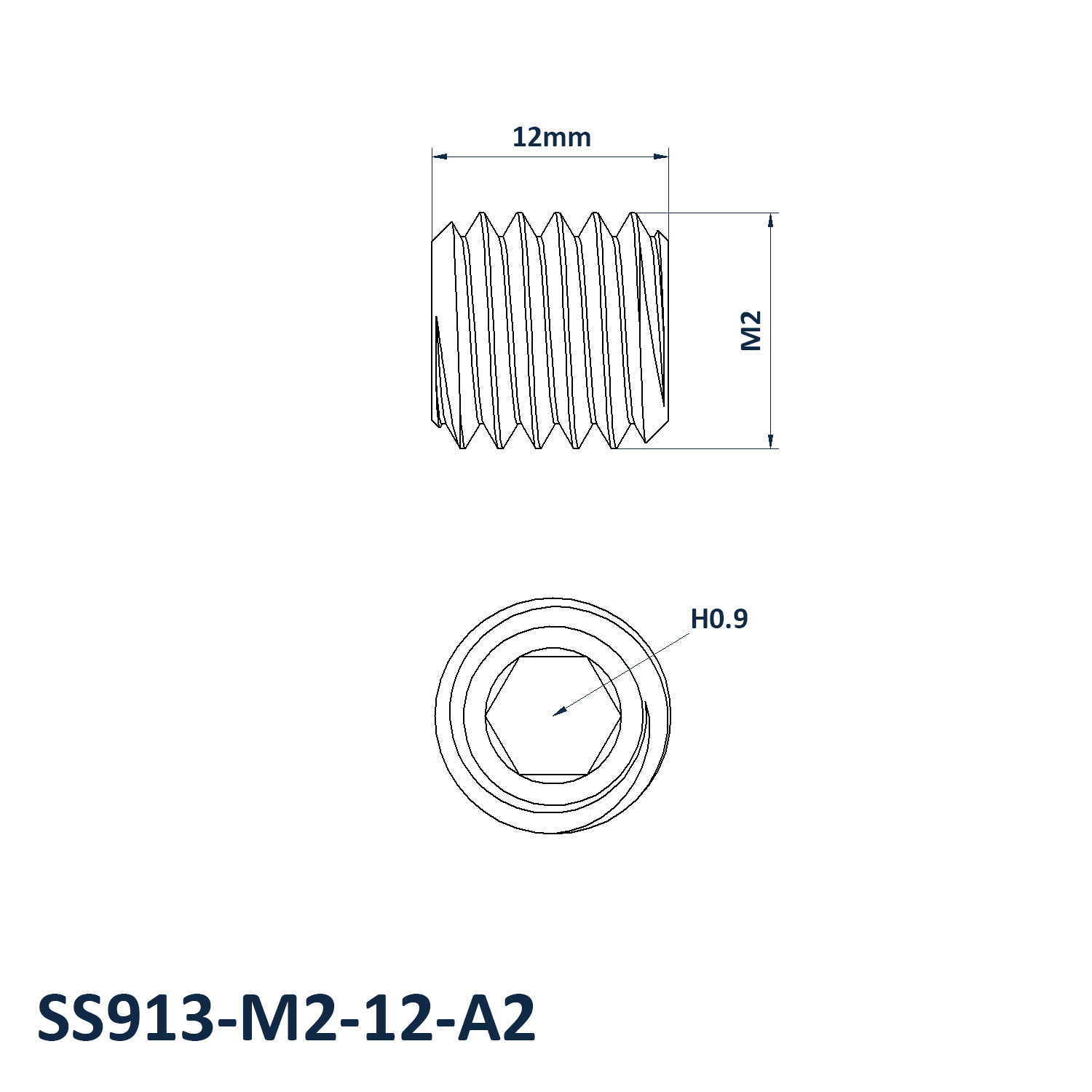

M2 x 12mm A2 Stainless Steel Flat Point Socket Grub Screw Dimensions
- Thread Size: M2
- Length: 12mm
- Pitch: 0.40mm
- End Type: Flat
- Drive: H0.9
- Material: A2 Stainless Steel
- Colour: Self-colour
- Standard: DIN 913 / ISO 4026
Further Reading
View our full range of Socket Grub Screw Flat DIN 913 here: Socket Grub Screw Flat DIN 913.
