M2 x 16mm Socket Grub Screw - Flat Point (DIN 913) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.19 | £0.23 |
| 100 - 499 | £0.16 | £0.19 |
| 500 - 999 | £0.14 | £0.17 |
| 1000 - 4999 | £0.12 | £0.15 |
| 5000 + | £0.11 | £0.13 |
Product Specification
| Thread Size | M2 |
| Length | 16.0mm |
| Pitch | 0.40mm |
| End Type | Flat |
| Drive | H0.9 |
| Standard | DIN 913 / ISO 4026 |
| Material | A2 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
M2 x 16mm Flat Point Socket Grub Screw | H0.9 Drive | A2 Stainless Steel
For conveyor maintenance, the M2 x 16mm flat tip grub screw provides positive location without the space taken by a traditional headed bolt. Its H0.9 internal socket allows access through a small clearance point during installation or servicing. Engineers often select this flat tip grub screw when allows quick adjustment on busy production lines in rollers, stop collars and conveyor change parts.
The A2 stainless grade is a strong choice where a clean self-colour finish and reliable corrosion resistance are required for regular industrial use. The internal hex drive provides good tool access in narrow spaces and helps maintenance teams make small adjustments without dismantling surrounding parts. It is well suited to general stainless grub screw requirements across manufacturing and maintenance teams.
Common Applications
- Rollers, stop collars and conveyor change parts using a M2 x 16mm flat point set screw
- Textile machine alignment collars
- Lighting rig clamp components
- Access control hardware and pivot mechanisms
Key Features and Benefits
- Flat point helps distribute load on the contact face rather than biting sharply into the retained part
- Headless body can sit below the surface for clean mechanical assemblies
- H0.9 socket gives controlled Allen key installation in restricted spaces
- DIN 913 / ISO 4026 manufacture supports repeatable sizing across maintenance and OEM requirements

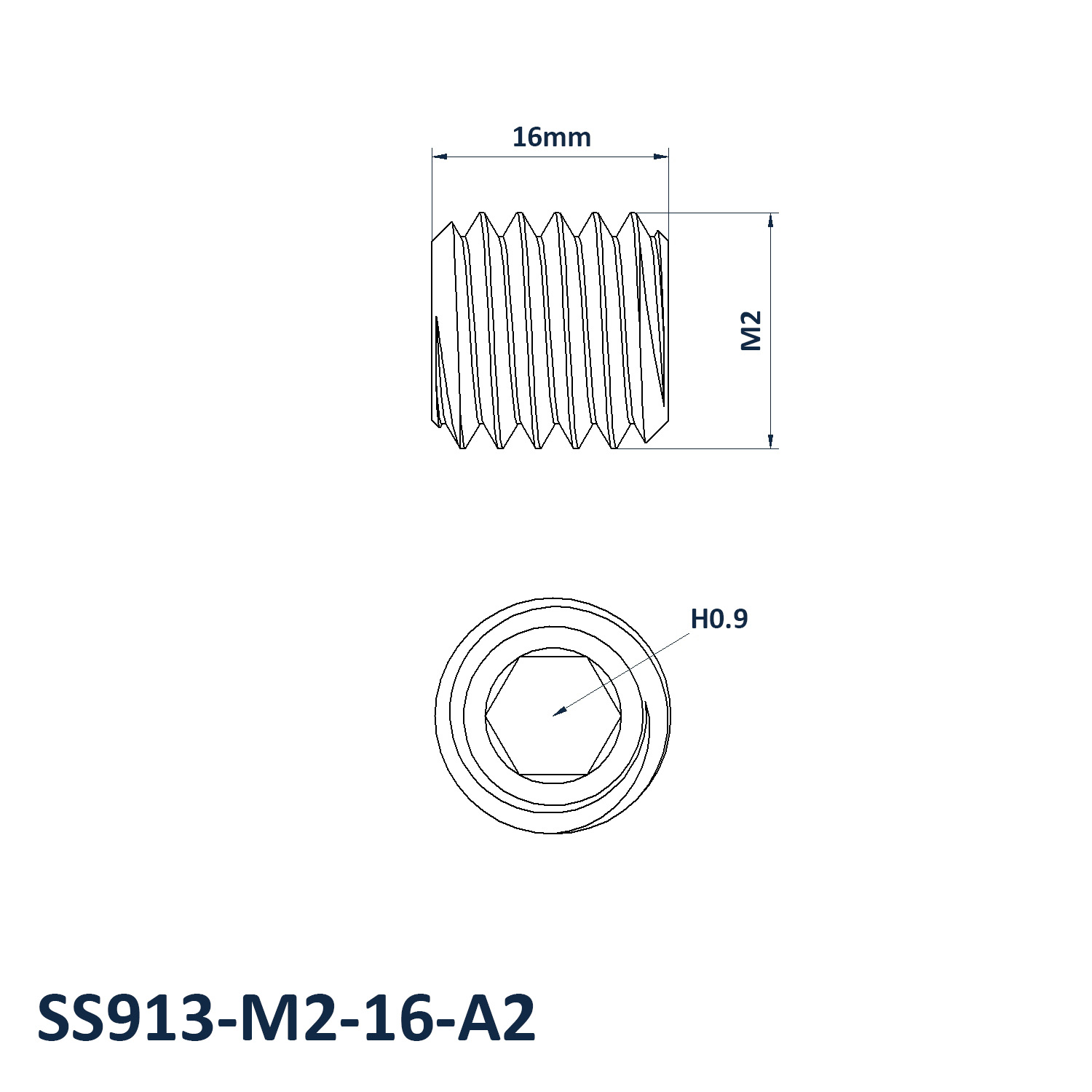

M2 x 16mm A2 Stainless Steel Flat Point Socket Grub Screw Dimensions
- Thread Size: M2
- Length: 16mm
- Pitch: 0.40mm
- End Type: Flat
- Drive: H0.9
- Material: A2 Stainless Steel
- Colour: Self-colour
- Standard: DIN 913 / ISO 4026
Further Reading
View our full range of Socket Grub Screw Flat DIN 913 here: Socket Grub Screw Flat DIN 913.
