M2 x 4mm Socket Grub Screw - Flat Point (DIN 913) | Marine Grade A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.10 | £0.12 |
| 100 - 499 | £0.08 | £0.10 |
| 500 - 999 | £0.07 | £0.09 |
| 1000 - 4999 | £0.07 | £0.08 |
| 5000 + | £0.06 | £0.07 |
Product Specification
| Thread Size | M2 |
| Length | 4.0mm |
| Pitch | 0.40mm |
| End Type | Flat |
| Drive | H0.9 |
| Standard | DIN 913 / ISO 4026 |
| Material | A4 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
M2 x 4mm Flat Point Socket Grub Screw | H0.9 Drive | A4 Stainless Steel
The M2 x 4mm flat point grub screw gives workshop equipment repairs applications a compact fixing with no protruding head. It is driven through a H0.9 hex socket and uses a 0.40mm pitch thread for secure engagement in compatible tapped holes. As a flush grub screw, it is well suited to tooling stands, clamps and machine shop repairs because it offers a practical headless fixing for small service tasks.
Manufactured from A4 stainless steel, this flat point grub screw is appropriate for coastal, chemical-adjacent and wet area applications when used with compatible parts. Because the screw is headless, it can be recessed into a threaded component to reduce snagging and keep the surrounding assembly clear. It is a good option for buyers comparing corrosion-resistant grub screws for harsher service conditions.
Common Applications
- Tooling stands, clamps and machine shop repairs using a M2 x 4mm flat point set screw
- Pump and valve actuator components
- Fabricated frame adjustment points
- Toolmaking blocks and fixture stops
Key Features and Benefits
- Flat point helps distribute load on the contact face rather than biting sharply into the retained part
- Headless body can sit below the surface for clean mechanical assemblies
- H0.9 socket gives controlled Allen key installation in restricted spaces
- DIN 913 / ISO 4026 manufacture supports repeatable sizing across maintenance and OEM requirements

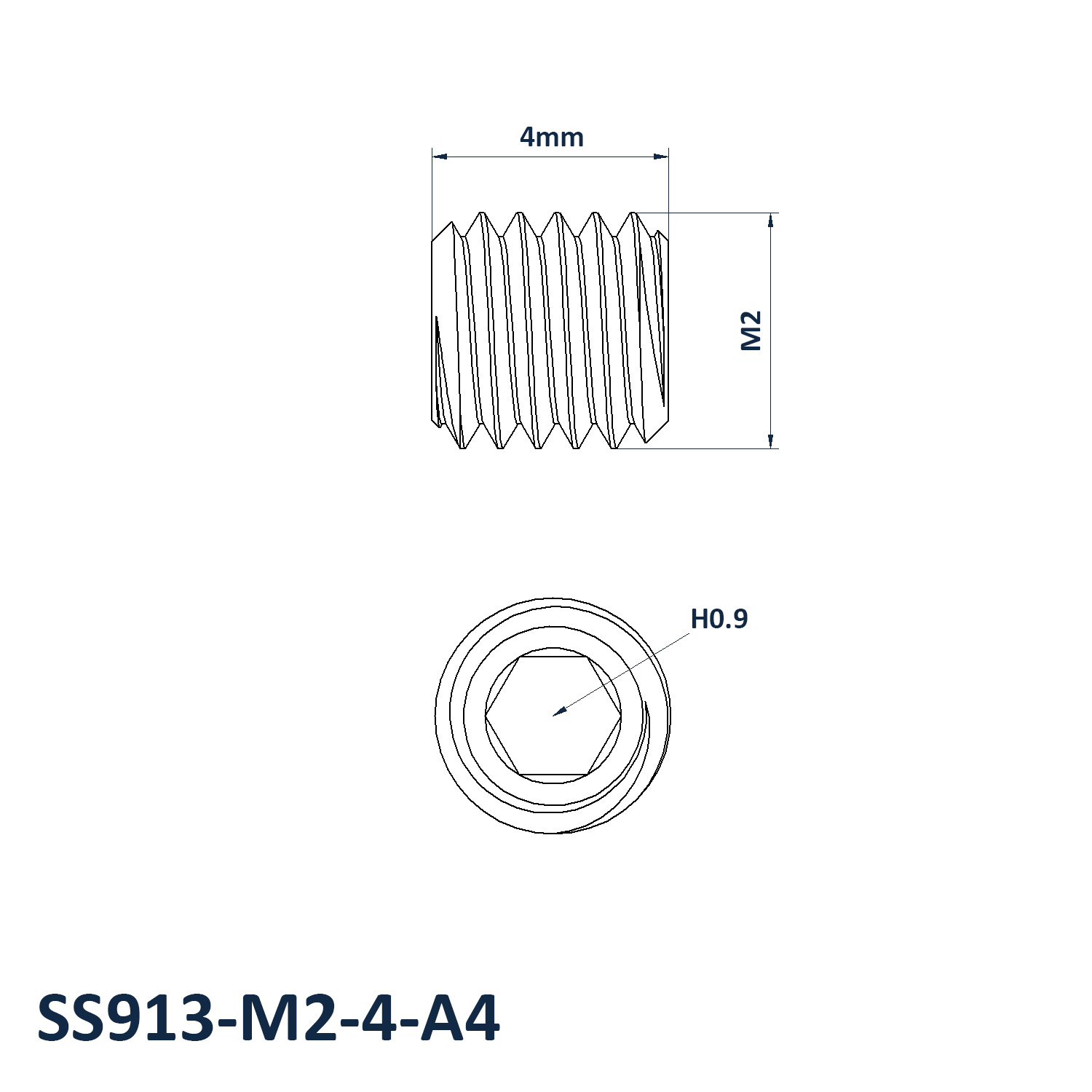

M2 x 4mm A4 Stainless Steel Flat Point Socket Grub Screw Dimensions
- Thread Size: M2
- Length: 4mm
- Pitch: 0.40mm
- End Type: Flat
- Drive: H0.9
- Material: A4 Stainless Steel
- Colour: Self-colour
- Standard: DIN 913 / ISO 4026
Further Reading
View our full range of Socket Grub Screw Flat DIN 913 here: Socket Grub Screw Flat DIN 913.
